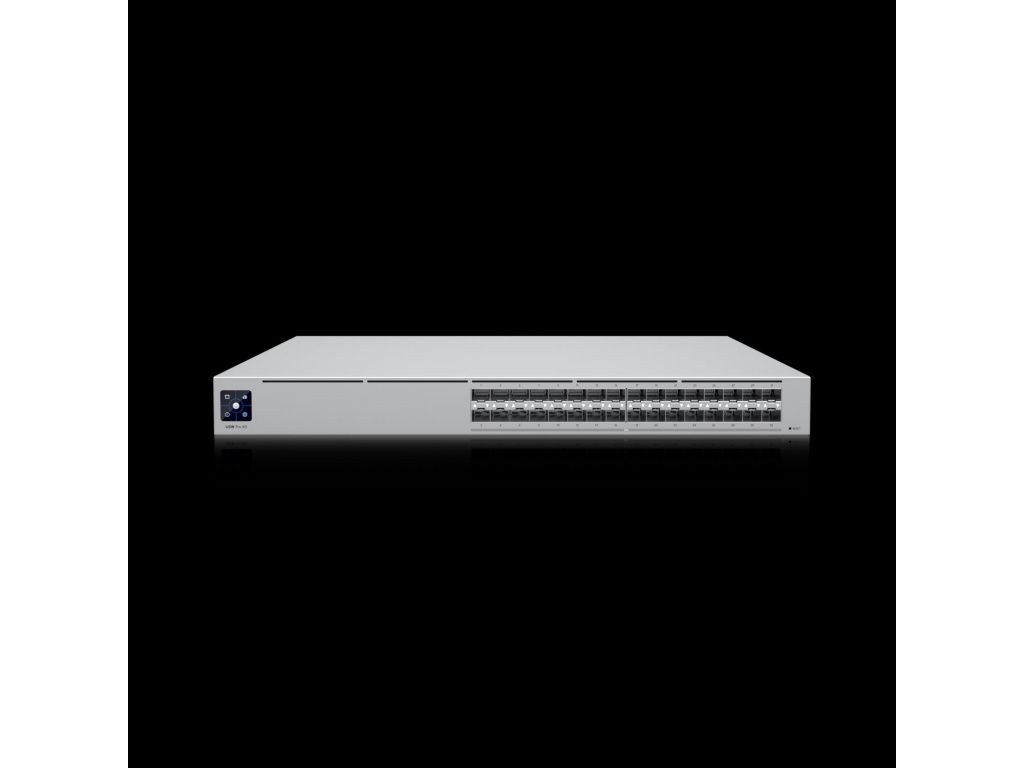

Ubiquiti Professionalgrade 32port, Layer 3 Etherlighting™ switch for highcapacity 25G SFP28 connections, USW-Pro-XG-Aggregation-EU

Detailní popis produktu

Overview
Dimensions
442.4 x 43.7 x 480 mm
(17.4 x 1.7 x 18.9")
Port Layout
25G SFP28
32
(25G/10G/1G)
Redundancy
DC Power Backup
Layer 3
?
Form Factor
Rack Mount (1U)
Etherlighting™
?

Performance
Switching Capacity
1.6 Tbps
Total Non-Blocking Throughput
800 Gbps
Forwarding Rate
1.2 Bpps
Supported VLANs
1,000
MAC Address Table Size
32,000
L3 Table Size
ARP Entries
128,000
IPv4 Routes
256,000
Packet Buffer Size
8 MB

Layer 3 Features
DHCP Server (Local Networks)
?
DHCP Relay
?
Inter-VLAN Routing (Local Networks)
?
Static Routing (Local Networks)
?

Layer 2 Features
LACP Port Aggregation
?
STP & RSTP
?
Advanced IGMP Configuration (Querier, Fast Leave, Router Port)
?
IGMP Snooping
?
802.1X Control
?
MAC-Based ACLs & Device Isolation
?
DHCP Snooping & Guarding
?
Egress Rate Limit
?
Flow Control
?
Storm Control
?
Multicast & Broadcast Rate Limiting
?
MAC Address Blocking
?
IP-Based ACLs & Network Isolation
?
MAC-Based Port Restriction
?
Port Isolation
?
Port Mirroring
?
Jumbo Frames
?
LLDP-MED
?
Voice VLAN
?
Loop Protection
?

Hardware
Max. Power Consumption
200W
Power Method
(1) Universal input, 100—240V AC, 50/60 Hz
(1) USP RPS DC input
Power Input Method
AC input
Power Supply
AC/DC, internal, 200W
Supported Voltage Range
100—240V AC
Management
Ethernet
AR
Weight
7 kg (19.8 lb)
Enclosure Material
SGCC steel
Mount Material
SGCC steel
Supported Rack Depth
482.6 mm (19") four-post racks
Posts depths ranging from 600 to 1,066 mm (23.6-42”)
LCM Display
1.3" touchscreen
ESD/EMP Protection
Air: ± 12kV, contact: ± 8kV
Ambient Operating Temperature
-5 to 40° C (23 to 104° F)
Ambient Operating Humidity
10 to 90% noncondensing
Etherlighting™
SFP28
?
LEDs
RPS
?
NDAA Compliant
?
Certifications
CE, FCC, IC
EAN: 810177163077
