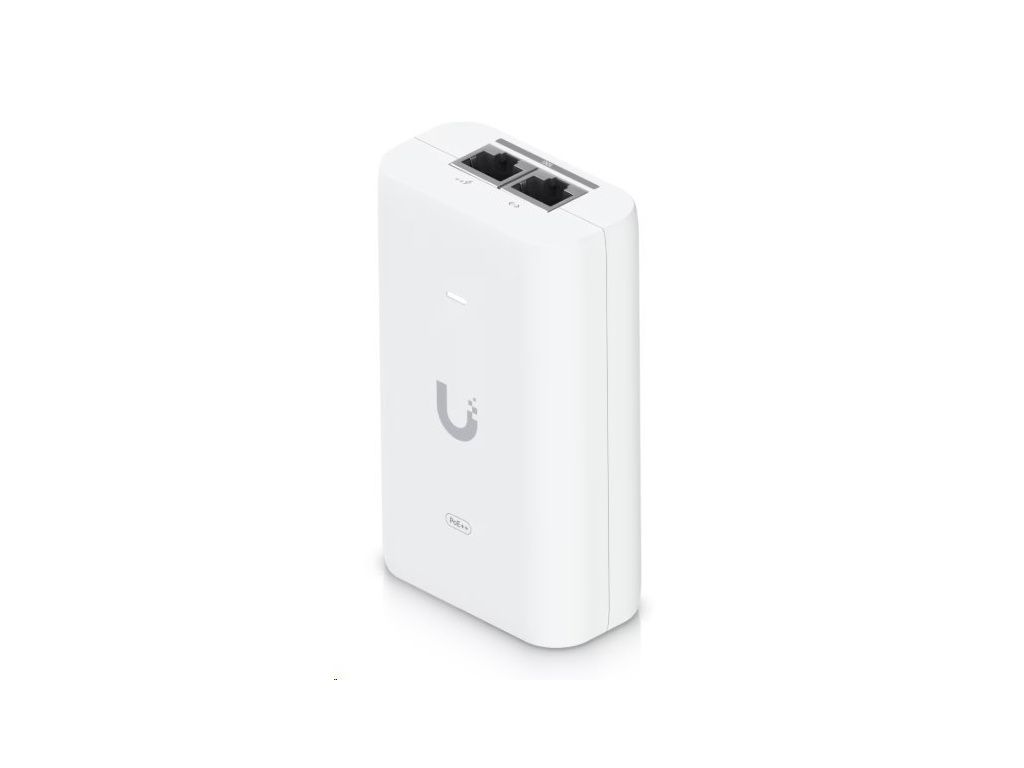

Ubiquiti UniFi 10G PoE+++ adaptér (60 W), UACC-PoE++-10G-EU

Detailní popis produktu

Technical Specification
Dimensions 106 x 63 x 34 mm (4.2 x 2.5 x 1.3")
Weight 210 g (7.4 oz)
Output voltage 54V DC @ 1.12A
LAN activity indicator No
Gigabit LAN port Yes, up to 10 GbE
Remote reset capability No
Reset button No
Rated voltage 100—240V AC @ 50/60Hz
Input current 1.5A max.
Inrush current <150A peak @ 230V AC
Efficiency >88%
Output ripple 1% max.
Switching frequency 65 kHz
Line regulation ? 2%
Load regulation ? 5%
2-pair powering No
4-pair powering Pins 1, 2, 4, 5 (+) and 3, 6, 7, 8 (-)
Data In / PoE RJ45 shielded socket
Surge protection Difference and common mode
Clamping protection 11V data, 60V power
Max. surge discharge 1500A (8/20 µs) power
Peak pulse current 36A (10/1000 µs) data
Shunt capacitance <5 pF data
Response time <1 ns
Max. PoE+ wattage per port by PSE 60W
Ambient operating temperature 0 to 40° C (32 to 104° F)
Storage temperature -30 to 70°C (-22 to 158° F)
Ambient operating humidity 10 to 95% noncondensing
Certifications CE, FCC, IC, UL, UKCA, KC, CCC, RoHS
EAN: 810084699515
