Ubiquiti airMAX Rocket Prism 2AC, Full-band 2.4 GHz Point-to-Point (PtP) and Point-to-MultiPoint (PtMP) basestation. Pro, R2AC-PRISM-EU

Detailní popis produktu

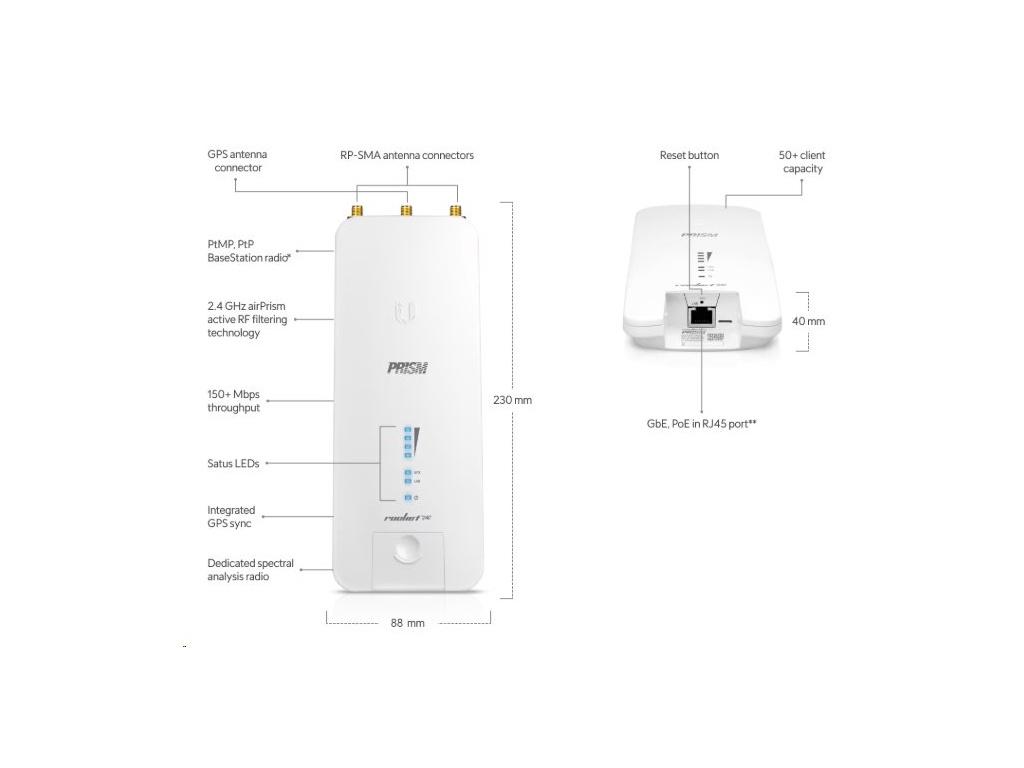

Mechanical
Dimensions 88 x 40 x 230 mm (3.5 x 1.6 x 9.1")
Weight 400 g (14.1 oz)
Enclosure material Die-cast aluminum
Hardware
Networking interface (1) GbE RJ45 port
Power method Passive PoE 2-pair (4, 5+; 7, 8 return)
Power supply 24V, 0.5A gigabit PoE adapter (Included)
Supported voltage range 20–27V DC
Max. power consumption 9.5W
RF connectors (2) RP-SMA (waterproof)
(1) GPS (waterproof)
LEDs Power, LAN, (4) signal strength
ESD/EMP Protection Air/contact ± 24kVt
Shock and vibrations ETSI300-019-1.4
Ambient operating temperature -40 to 80° C (-40 to 176° F)
Ambient operating humidity 5 to 95% noncondensing
Certifications CE, FCC, IC
Operating Frequency (MHz)
Worldwide 2412 - 2472 MHz
US/CA 2412 - 2462 MHz
Management Radio (MHz)
Worldwide 5150 - 5250 MHz
US/CA U-NII-3: 5725 - 5850 MHz
NDAA Compliant Yes
EAN: 817882027397
