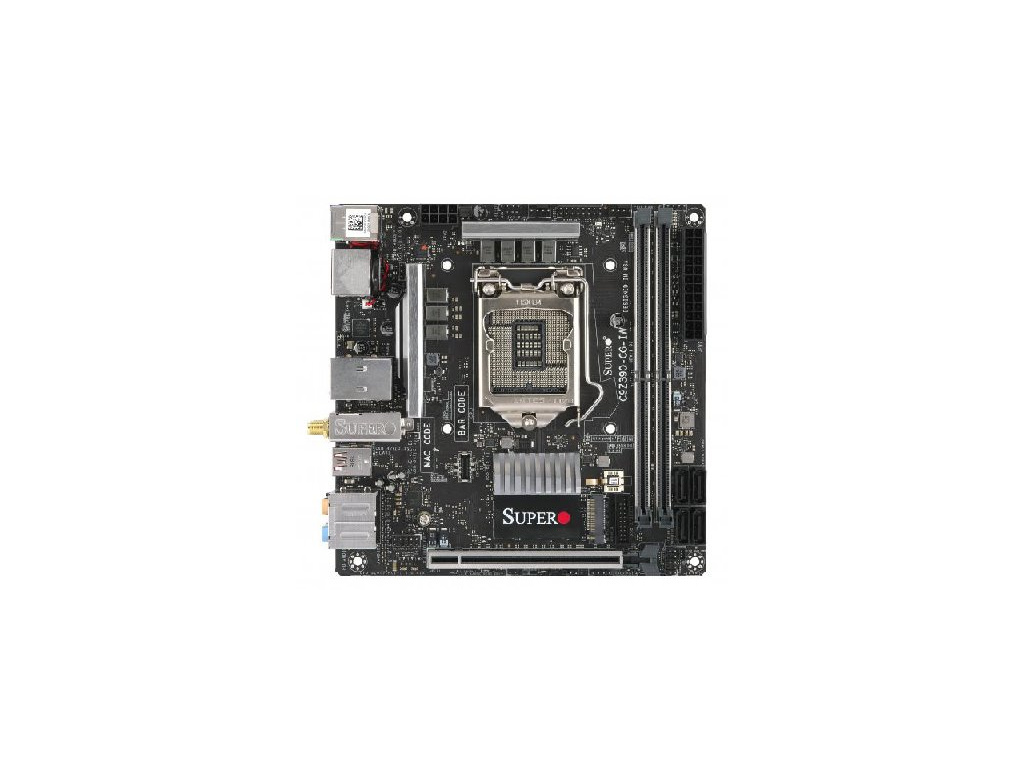

SUPERMICRO MB 1xLGA1151 8/9g 120W, Z390, 2x DDR4,4xSATA3, PCIe 3.0 x16, M.2, LAN+WiFi, DP+HDMI, Audio, mini-ITX, MBD-C9Z390-CG-IW-O

Detailní popis produktu

Product SKUs

MBD-C9Z390-CG-IW C9Z390-CG-IW



Physical Stats

Form Factor Mini-ITX

Dimensions 6.7" x 6.7" (17.02cm x 17.02cm)



Processor/Cache

CPU Intel® 8th/9th Generation Core? i9/Core? i7/Core?i5/Core?i3/Pentium®/Celeron® series Processor.
Single Socket LGA-1151 (Socket H4) supported, CPU TDP support Up to 120W TDP



System Memory

Memory Capacity , DDR4-up to 3866+ MHz(OC), in 2 DIMM slotsUp to 32GB Unbuffered non-ECC UDIMM, in 2 DIMM slots (Limited to Gen 8th series and Gen 9th core i3, Pentium and Celeron) Up to 64GB Unbuffered non-ECC UDIMM, in 2 DIMM slots (Limited to Gen 9th core i5/i7/i9)

Memory Type 2666MHz/2400MHz DDR4 288-pin Non-ECC UDIMM

DIMM Sizes 4GB, 8GB, 16GB, 32GB

Memory Voltage 1.2V



On-Board Devices

Chipset Intel® Z390 Express

SATA Intel® Z390 Express controller for 4 SATA3 (6 Gbps) ports; RAID 0,1,5,10

Network Controllers Single LAN with Intel® single Ethernet PHY i219V

Audio ALC 1220 HD Audio

Graphics HDMI up to 2.0a, DP up to 1.2



Input / Output

SATA 4 SATA3 (6Gbps) ports

LAN 1 RJ45 Gigabit Ethernet LAN ports

USB 4 USB 3.0 ports (2 rear + 2 via headers)
4 USB 3.1 Gen1 ports (2 Rears Type A, 2 via headers)
5 USB 3.1 Gen2 ports (3 Rears Type A + 1 Rear Type C, 1 via header)

Video Output 1 HDMI port, 1 DP (DisplayPort) port,
HDMI up to 2.0a, DP up to 1.2







Expansion Slots

PCI-E 1 PCI-E 3.0 x16

M.2 M.2 Interface: 2 PCI-E 3.0 x4, RAID 0 & 1 and 1 CNVi
Form Factor: 2260/2280, 2230
Key: M-Key , E-Key (RAID 0,1 support)
M.2-E1 port pre-installed one 802.11ac WiFi+BT5.0 module; One M.2 (M-Key) on Top side and One M.2 (M-key)on back side



System BIOS

BIOS Type AMI 32Mb SPI Flash ROM

BIOS Features ACPI 6.0
SMBIOS 3.0 or later
UEFI 2.4



Management

Software SuperDoctor® 5, Watchdog

System Management Software SuperDoctor 5

Power Configurations Power-on mode for AC power recovery
Keyboard Wakeup from Soft-Off
ACPI Power Management



PC Health Monitoring

Voltage +1.1V, +12V, +3.3V, +5V, 1.05 (PCH), 2 fans with tachometer status monitoring, 3+2 Phase-switching voltage regulator, HT, VBAT

FAN 2x 4-pin fan headers (up to 2 fans), Fan speed control, Low noise fan speed control, PWM fan speed control

Temperature CPU thermal trip support

LED Suspend static indicator LED

Other Features Chassis intrusion detection, Chassis intrusion header, Voltage and Frequency Overclocking, WOL



Parts List ?




Parts List (Bulk Package)
Name Part Number Qty Description
Motherboard MBD-C9Z390-CG-IW 1 C9Z390-CG-IW Motherboard




Parts List (Retail Package)
Name Part Number Qty Description
Motherboard MBD-C9Z390-CG-IW 1 C9Z390-CG-IW Motherboard
IO shield MCP-260-00129-0N 1 C9Z390-CG-IW IO shield
Quick Reference Guide MNL-2018-QRG 1 C9Z390-CG-IW Quick Reference Guide
SATA cable CBL-0044L 2 57.5CM SATA FLAT S-S PBF
Driver CD 1 C9 Driver CD
Metal badge 1 SuperO metal badge
Cable sticker 1 SuperO cable sticker
WiFi+BT Antenna CBL-ANTDB-SMA 2 C9Z390-CG-IW WiFi+BT Antenna
Front panel extension cable 1 C9Z390-CG-IW front panel extension cable




Chassis (Optimized for C9Z390-CG-IW)


Embedded Compact 1U 2U 3U Mid/Mini-Tower 4U/Tower
SCGS5A-754K
SCGS5A-753B
SC732D3-1200B
SC732D3-903B
SC732D4-500B


EAN: 672042330072
