MSI MB Sc LGA1700 PRO H610M-G, Intel H610, 2xDDR5, 1xDP, 1xHDMI, 1xVGA, mATX, PRO H610M-G
Kód: ALIIMPE2648261
Detailní popis produktu

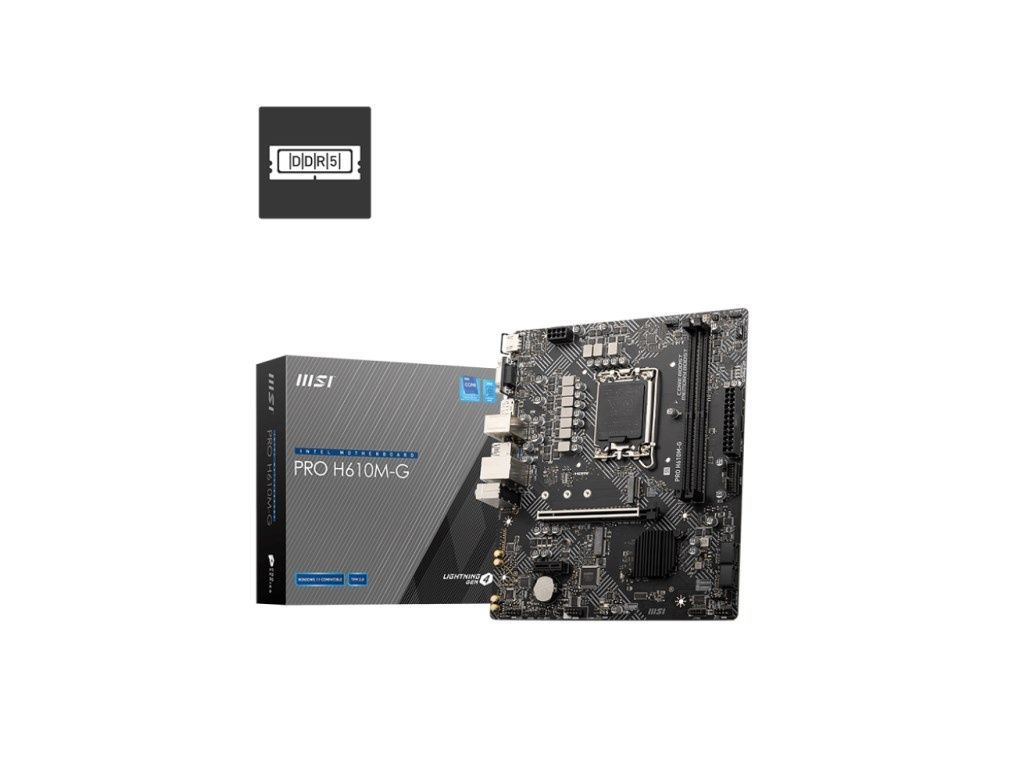

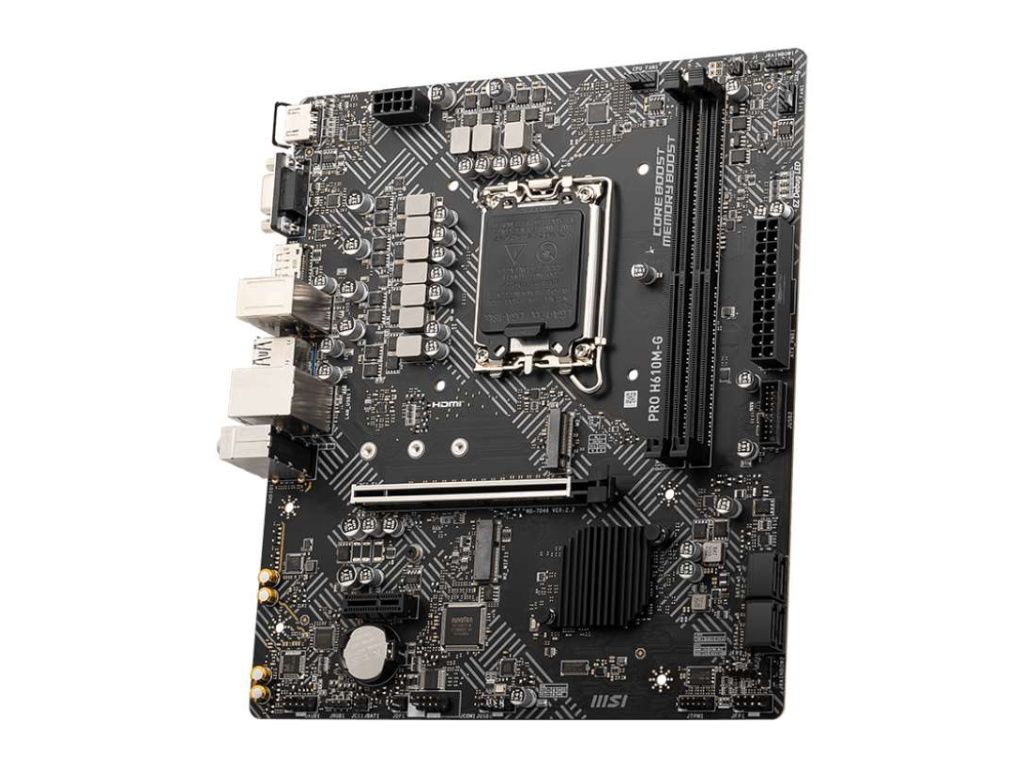

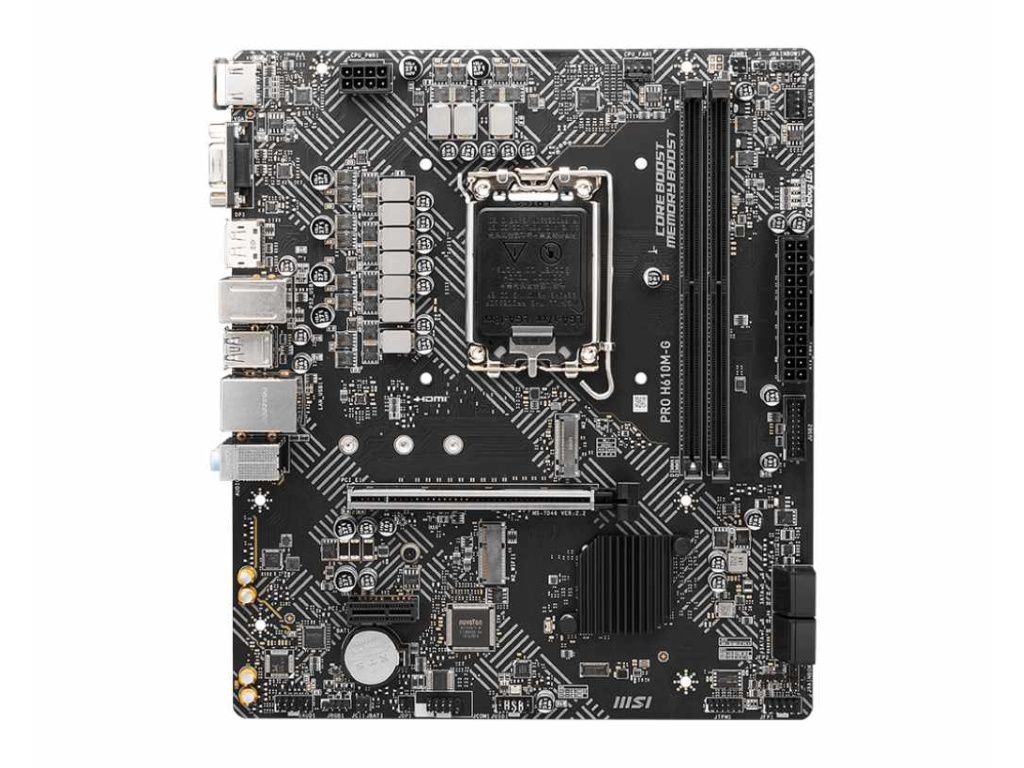

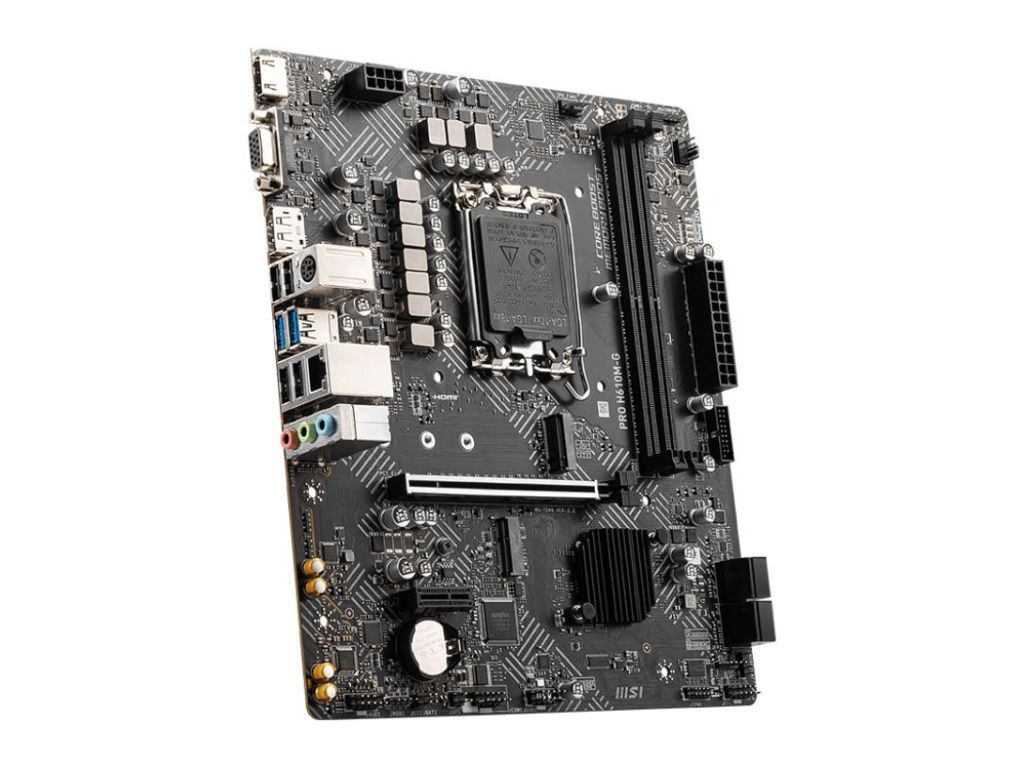

MSI PRO H610M-G
PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity.
CPU
Supports 12th/13th Gen Intel Core™ Processors, Pentium Gold and Celeron Processors
LGA 1700
Chipset
INTEL H610
Memory
2x DDR5, Maximum Memory Capacity 64GB
Memory Support DDR5 4800 MHz (by JEDEC & POR)
Supports Dual-Controller Dual-Channel mode
Supports non-ECC, un-buffered memory
Onboard Graphics
1x HDMI™
Support HDMI™ 2.1, maximum resolution of 4K 60Hz*
1x DisplayPort
Support DP 1.4, maximum resolution of 4K 60Hz*
1x VGA
Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Audio
Realtek ALC897 Codec
7.1-Channel High Definition Audio
LAN
Intel I219V 1Gbps LAN controller
Expansion Slots
1x PCI-E x16 slot
1x PCI-E x1 slot
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
1x M.2 slot with E-key for PCIe WiFi module only
Storage Interface
1x M.2
M.2_1 Source (From Chipset) supports up to PCIe 3.0 x4 / SATA mode, supports 2280/2260/2242 devices
4x SATA 6G
* SATA7 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.
USB
4x USB 2.0 (Rear)
2x USB 2.0 (Front)
2x USB 3.2 Gen1 Type A (Rear)
2x USB 3.2 Gen1 Type A (Front)
INTERNAL I/O
1x Power Connector(ATX_PWR)
1x Power Connector(CPU_PWR)
1x CPU Fan
1x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
2x Addressable RGB LED connector(JRAINBOW)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
2x USB 2.0 ports
2x USB 3.2 Gen1 Type A ports

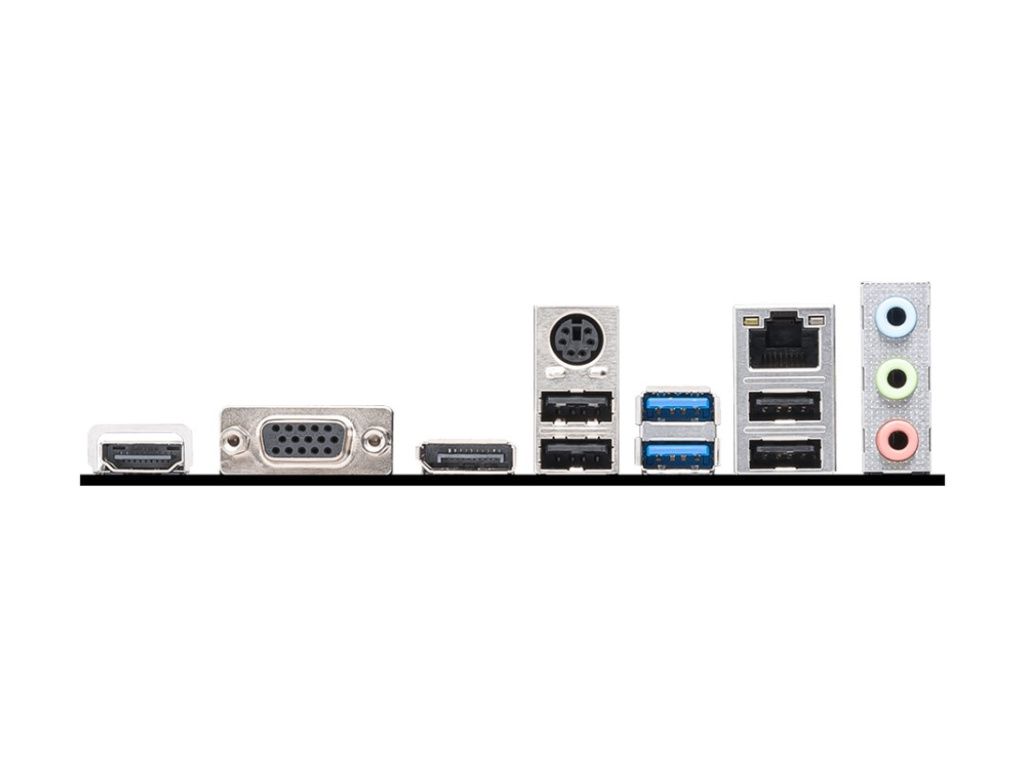

Back Panel Connectors
1x HDMI™
1x VGA
1x DisplayPort
1x Keyboard / Mouse
2x USB 3.2 Gen 1 5Gbps (Type-A)
1x LAN port
3x Audio Connectors
4x USB 2.0
Internal I/O Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
2 x system fan headers
1 x addressable LED strip header
1 x RGB LED strip header
1 x M.2 Socket 3 connector
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C header, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 header
1 x USB 2.0/1.1 header
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
1 x Clear CMOS jumper
LED FEATURE
4x EZ Debug LED
OPERATING SYSTEM
Support for Windows 11 64-bit, Windows 10 64-bit
Form Factor
mATX
211mmx243.84mm
EAN: 4719072942663
Doplňkové parametry
| Kategorie: | Socket 1700 |
|---|---|
| Záruka: | 36 Měsíc(ů) |
| Hmotnost: | 0.76 kg |
| Čipset: | Intel H610 |
| Formát základní desky: | micro ATX |
| Počet paměťových slotů: | 2 |
| Typ paměti: | DDR5 |
| Socket (patice): | Socket 1700 |
| Pro procesory: | Intel |
| M.2 slot: | 1 |
| SATA 3: | 4 |
| PCI Express x16: | 1 |
| PCI Express x1: | 1 |
| LAN: | 1Gbit/s |
| Bezdrátové připojení: | bez |
| DisplayPort: | 1 |
| HDMI: | 1 |
| VGA: | 1 |
| USB 2: | 6 |
| USB 3: | 4 |
| Led Header: | Ano |
| TPM: | Ano |
| 3.5mm Jack: | Ano |
| COM port: | Ano |
| LPT port: | Ne |
| EAN: | 4719072942663 |
