MSI MB Sc LGA1700 PRO H610M-E, Intel H610, 2xDDR5, 1xHDMI, 1xVGA, mATX, PRO H610M-E
Kód: ALIIMPE2648734
Detailní popis produktu

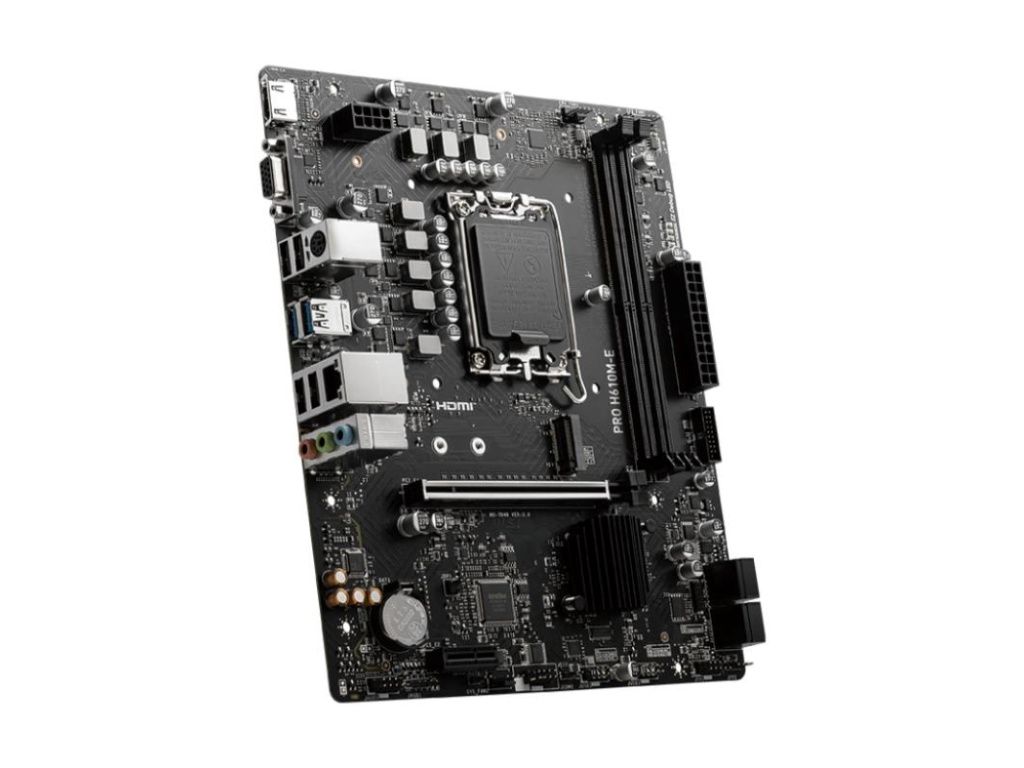

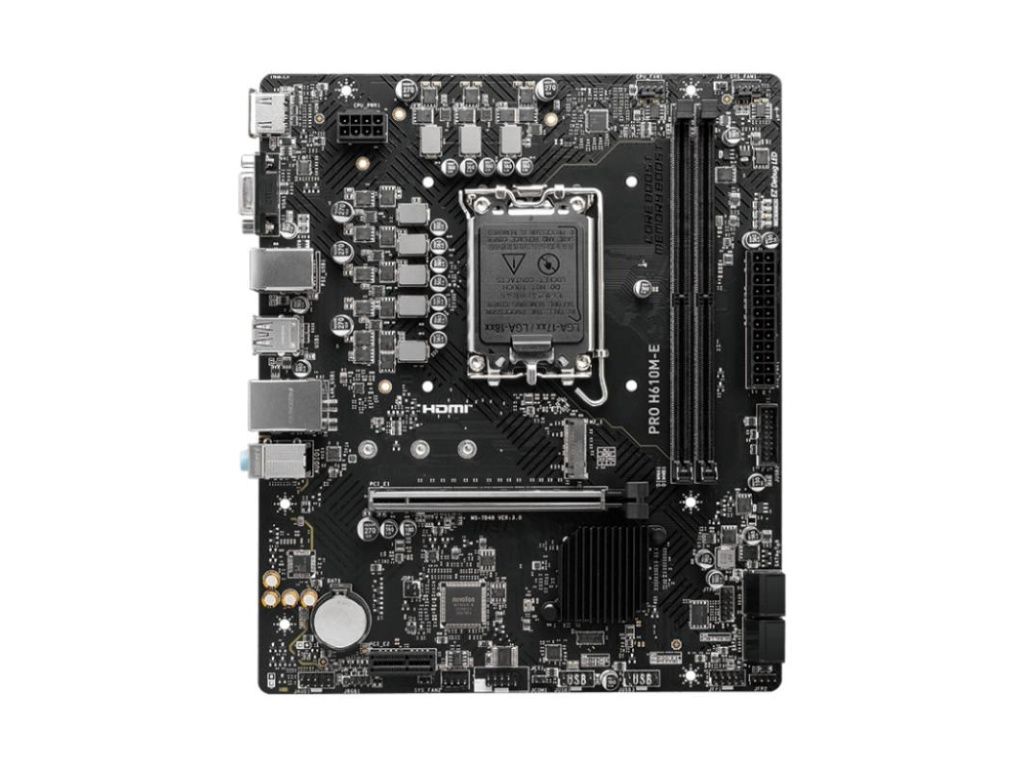

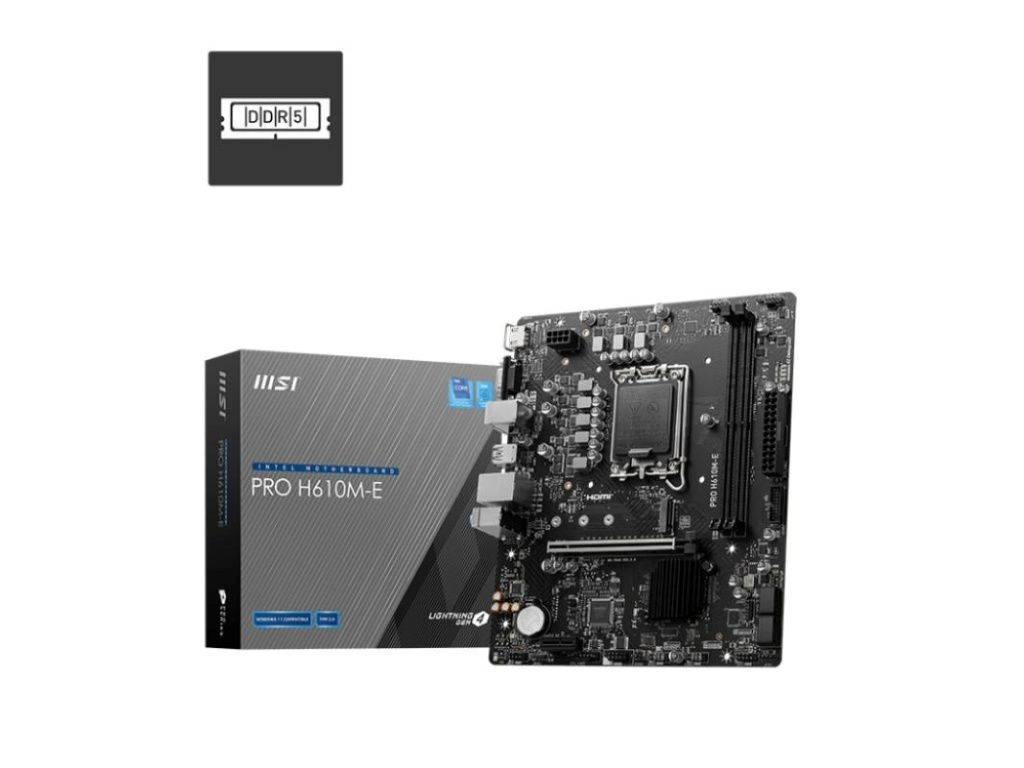

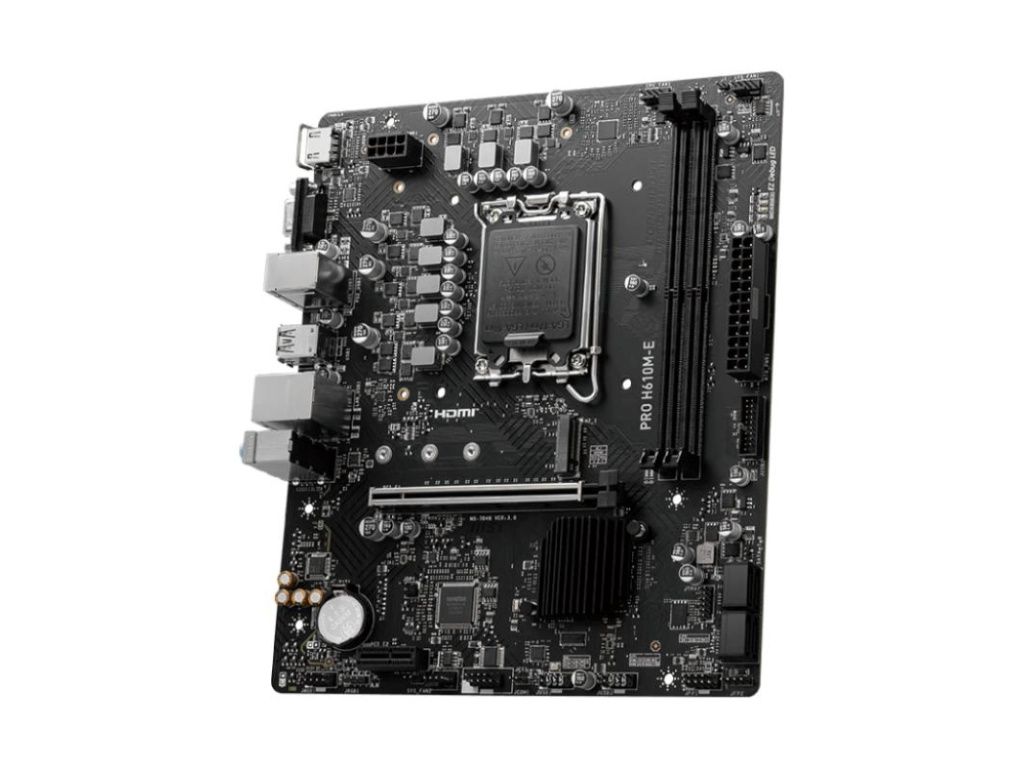

MSI PRO H610M-E
PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity.
CPU
Support Intel Core™ 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors
LGA 1700
Chipset
INTEL H610
Memory
2x DDR5, Maximum Memory Capacity 96GB
Memory Support DDR5 5600 MHz (by JEDEC & POR)
Supports Intel XMP 3.0 OC
Supports Dual-Controller Dual-Channel mode
Supports non-ECC, un-buffered memory
Onboard Graphics
1x HDMI™
Support HDMI™ 1.4 with HDR, maximum resolution of 4K 30Hz*
1x VGA
Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot
1x PCI-E x16 slot
1x PCI-E x1 slot
PCI_E1 Gen PCIe 4.0 supports up to (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to (From Chipset)
Audio
Realtek ALC897 Codec
7.1-Channel High Definition Audio
Storage
1x M.2
M.2_1 Source (From Chipset) supports up to PCIe 3.0 x4 / SATA mode, supports 2280/2260/2242 devices
4x SATA 6G
* SATA5 will be unavailable when installing M.2 SATA SSD in the M2_1 slot.
USB
4x USB 2.0 (Rear)
4x USB 2.0 (Front)
2x USB 5Gbps Type A (Rear)
2x USB 5Gbps Type A (Front)
LAN
Realtek RTL8111H Gigabit LAN
Internal I/O
1x Power Connector(ATX_PWR)
1x Power Connector(CPU_PWR)
1x CPU Fan
2x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 5Gbps Type A ports

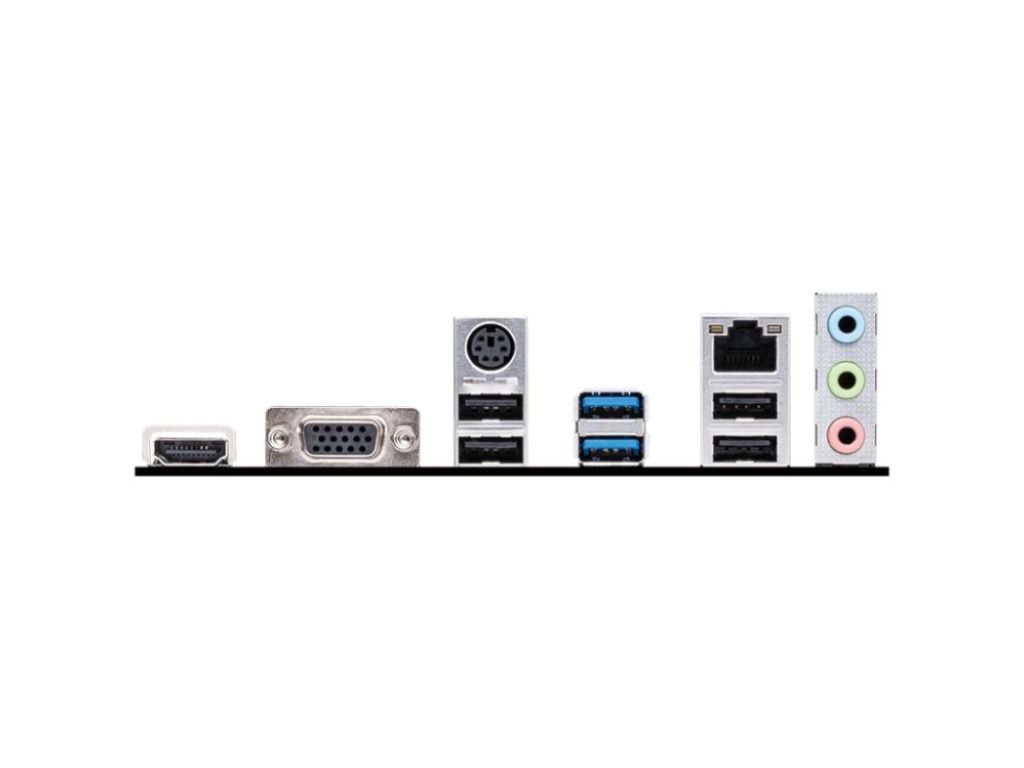

Back Panel I/O
1x HDMI
1x VGA
1x Keyboard / Mouse
2x USB 3.2 Gen 1 5Gbps (Type-A)
1x LAN port
3x Audio Connectors
4x USB 2.0
OPERATING SYSTEM
Support for Windows 11 64-bit, Windows 10 64-bit
Form Factor
mATX
200 x 236.16 mm
EAN: 4711377125147
Doplňkové parametry
| Kategorie: | Základní desky |
|---|---|
| Záruka: | 36 Měsíc(ů) |
| Hmotnost: | 0.71 kg |
| EAN: | 4711377125147 |
| Čipset: | Intel H610 |
| Formát základní desky: | micro ATX |
| Počet paměťových slotů: | 2 |
| Typ paměti: | DDR5 |
| Socket (patice): | Socket 1700 |
| Pro procesory: | Intel |
| M.2 slot: | 1 |
| SATA 3: | 4 |
| Podpora RAID: | Bez RAID podpory |
| PCI Express x16: | 1 |
| PCI Express x1: | 1 |
| PCI: | 0 |
| LAN: | 1Gbit/s |
| Bezdrátové připojení: | bez |
| DisplayPort: | 0 |
| HDMI: | 1 |
| VGA: | 1 |
| DVI: | 0 |
| DisplayPort Type-C: | 0 |
| Počet Thunderbolt: | 0 |
| USB 2: | 8 |
| USB 3: | 4 |
| USB C: | 0 |
| Led Header: | Ano |
| TPM: | Ano |
| COM port: | Ano |
| 3.5mm Jack: | Ano |
| LPT port: | Ne |
| EAN: | 4711377125147 |
