ASUS MB Sc LGA1851 PRO Q870I-C-CSM, Intel Q870, 4xDDR5, 2xDP, 1xHDMI, Mini-ITX, 90MB1MPP-M0EAYC
Kód: ALIIMPE1887831
Široká síť výdejních míst
Více než 7 000 výdejních míst v ČR
Detailní popis produktu

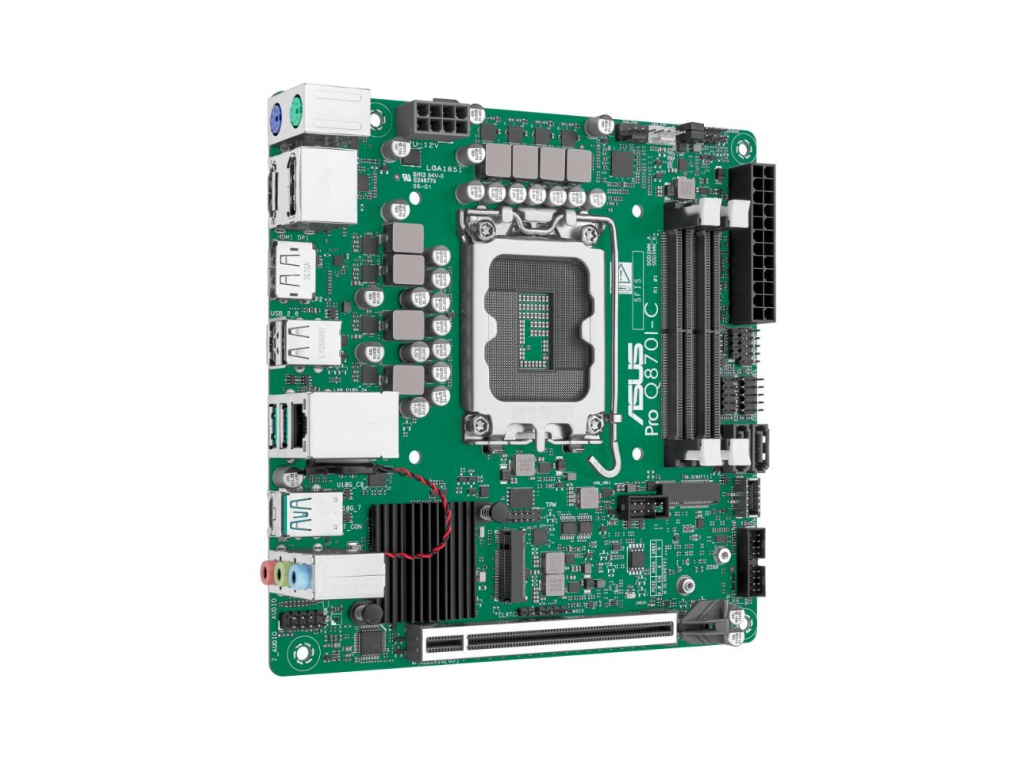

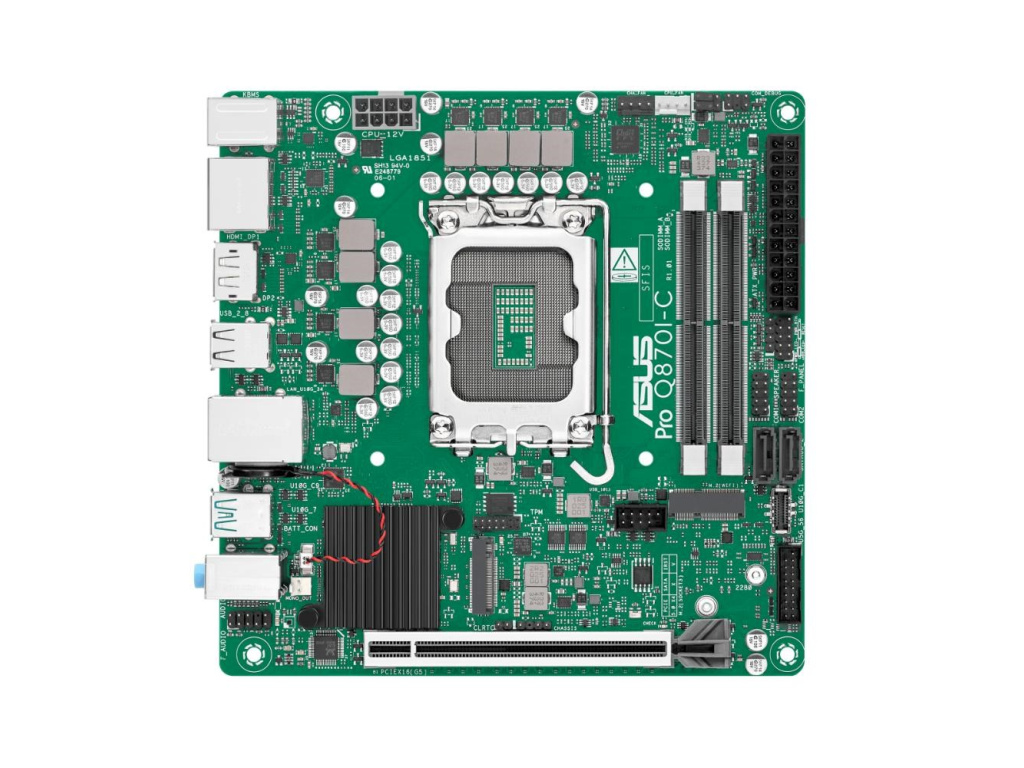

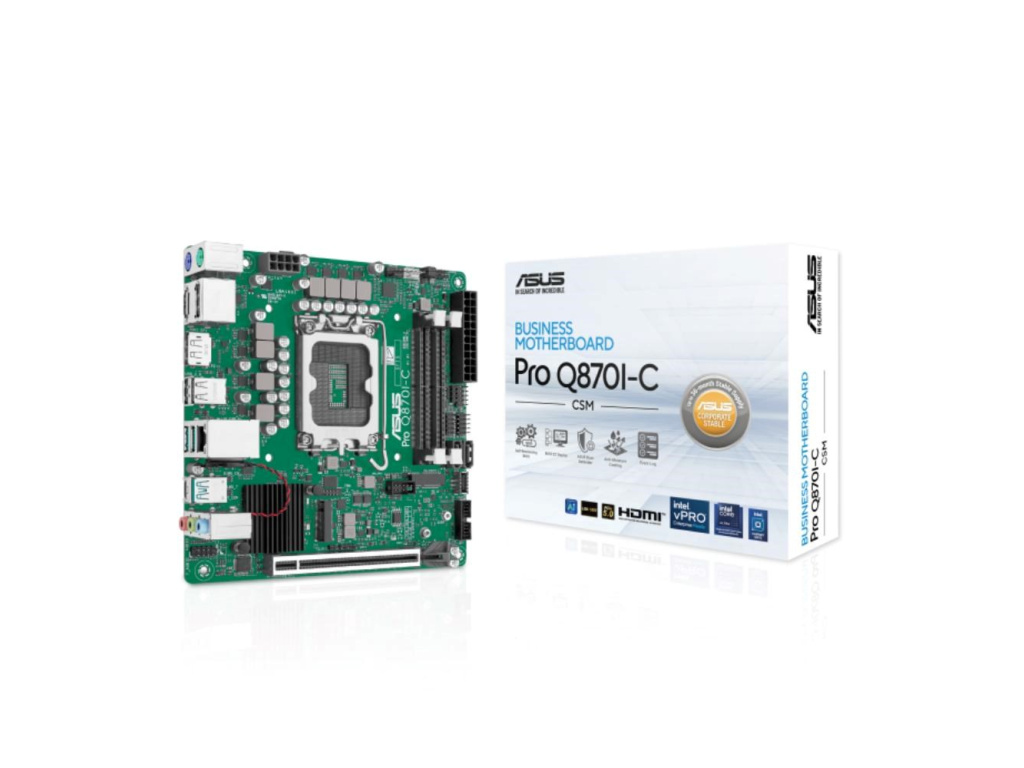

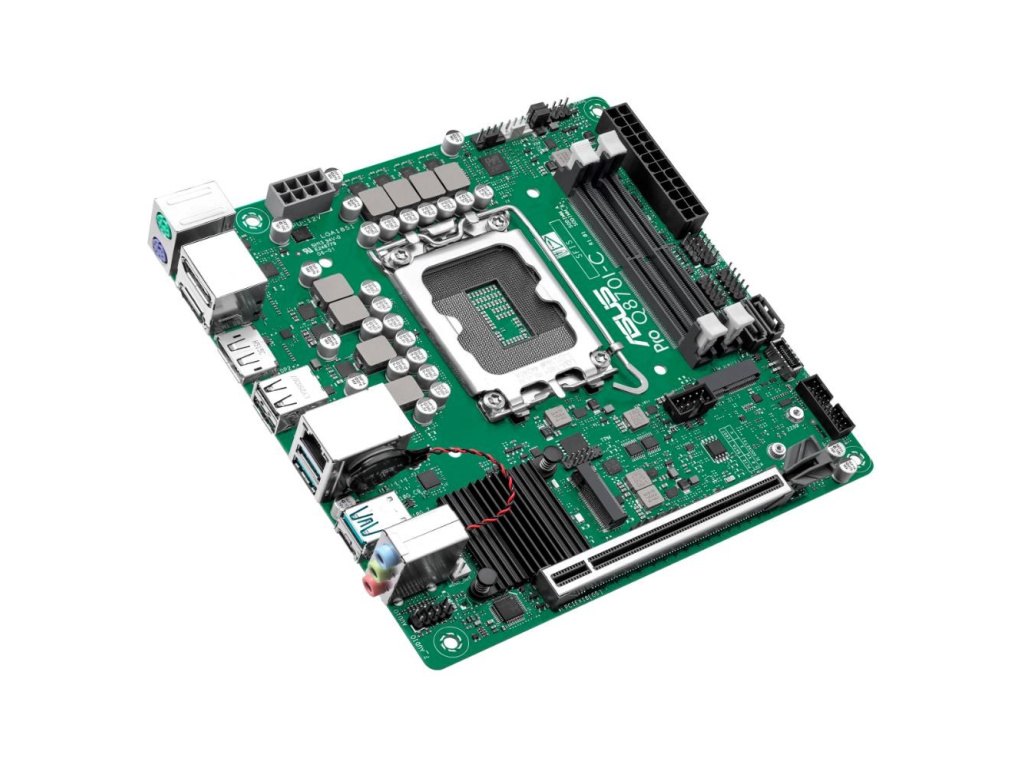

ASUS Pro Q870I-C-CSM
- Ready for Advanced AI PCs: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
- Intel LGA 1851 Socket: Ready for Intel Core™ Ultra Processors (Series 2)
- ASUS CSM Program: A stable motherboard supply, end-of-life notifications, and IT software for business motherboards
- ASUS Control Center Express: Integrated IT monitoring and management software that simplifies enterprise-level system administration
- Enhanced System Security: Boot defender with NIST SP800-193 compliance, a self-recovering BIOS, and TPM to safeguard PCs
- Consistent and Reliable Performance: High-quality components and rigorous testing to help ensure durability in harsh environments
- Efficient Management and Customization: An event log and commercial BIOS kit to enable easy maintenance
- Better Serviceability: Q-LED Core diagnostic display and COM debug header to facilitate building and support processes
- Ultrafast Connectivity: PCIe 5.0, DDR5 SO-DIMM slots , rear and front USB 10Gbps Type-C
- DIY Friendly Design: SafeSlot, Dual DIMM clips, Box headers
CPU
- Supports Intel Core™ Ultra Processors (Series 2), LGA1851
- Supports Intel Turbo Boost Technology 2.0
- Supports Intel Turbo Boost Max Technology 3.0
- CPU supports up to 65W
- Turbo Boost Max Technology 3.0 support depends on CPU type
Chipset
Intel Q870 Chipset
Memory
- 2 × SO-DIMM slots, max. 128GB
- DDR5 up to 6400 MT/s
- Non-ECC, Un-buffered, Clocked SO-DIMM
- Dual channel memory architecture
- Supports Intel Extreme Memory Profile (XMP)
- On-Die ECC supported (Non-ECC DDR5)
Graphics
- 2 × DisplayPort (up to 4K @ 60Hz)
- 1 × HDMI™ (up to 4K @ 60Hz)
- Graphics output depends on CPU
Expansion Slots
- 1 × PCIe 5.0 x16 slot
Storage
- 1 × M.2 slot (Key M, 2280, PCIe 5.0 x4)
- 2 × SATA 6Gb/s ports
Ethernet
- Intel I219LM 1Gb Ethernet
- ASUS LANGuard
Wireless & Bluetooth
- M.2 2230 slot (Key E, CNVi & PCIe)
- Wi-Fi module sold separately
USB

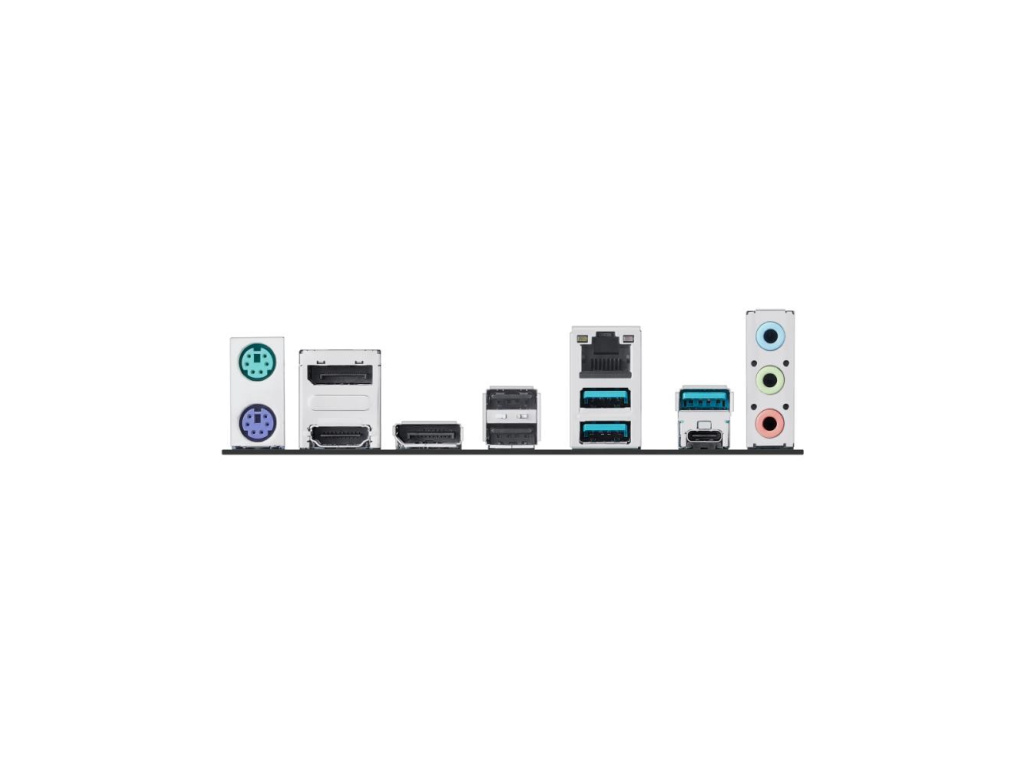

Rear USB
- 1 × USB 10Gbps Type-C
- 3 × USB 10Gbps Type-A
- 2 × USB 2.0 Type-A
Front USB
- 1 × USB 10Gbps Type-C connector
- 1 × USB 5Gbps header (supports 2 ports)
- 1 × USB 2.0 header (supports 2 ports)
Audio
- Realtek 7.1 Surround Sound HD Audio CODEC
- Up to 24-bit / 192 kHz playback
Form Factor
Mini-ITX (17 × 17 cm)
EAN: 4711636208857
Doplňkové parametry
| Kategorie: | Základní desky |
|---|---|
| Záruka: | 36 Měsíc(ů) |
| Hmotnost: | 0.7 kg |
| EAN: | 4711636208857 |
| Čipset: | Intel Q870 |
| Formát základní desky: | micro ATX |
| Počet paměťových slotů: | 4 |
| Typ paměti: | DDR5 |
| Socket (patice): | Socket 1851 |
| Pro procesory: | Intel |
| M.2 slot: | 2 |
| SATA 3: | 4 |
| Podpora RAID: | 0, 1, 5, 10 |
| PCI Express x16: | 2 |
| PCI Express x8: | 0 |
| PCI Express x1: | 1 |
| PCI: | 0 |
| LAN: | 1Gbit/s |
| Bezdrátové připojení: | WiFi + Bluetooth |
| DisplayPort: | 2 |
| HDMI: | 1 |
| VGA: | 0 |
| DVI: | 0 |
| DisplayPort Type-C: | 0 |
| Počet Thunderbolt: | 0 |
| USB 2: | 5 |
| USB 3: | 6 |
| USB C: | 2 |
| TPM: | Ano |
| COM port: | Ano |
| LPT port: | Ano |
| 3.5mm Jack: | Ano |
| Led Header: | Ne |
| EAN: | 4711636208857 |
