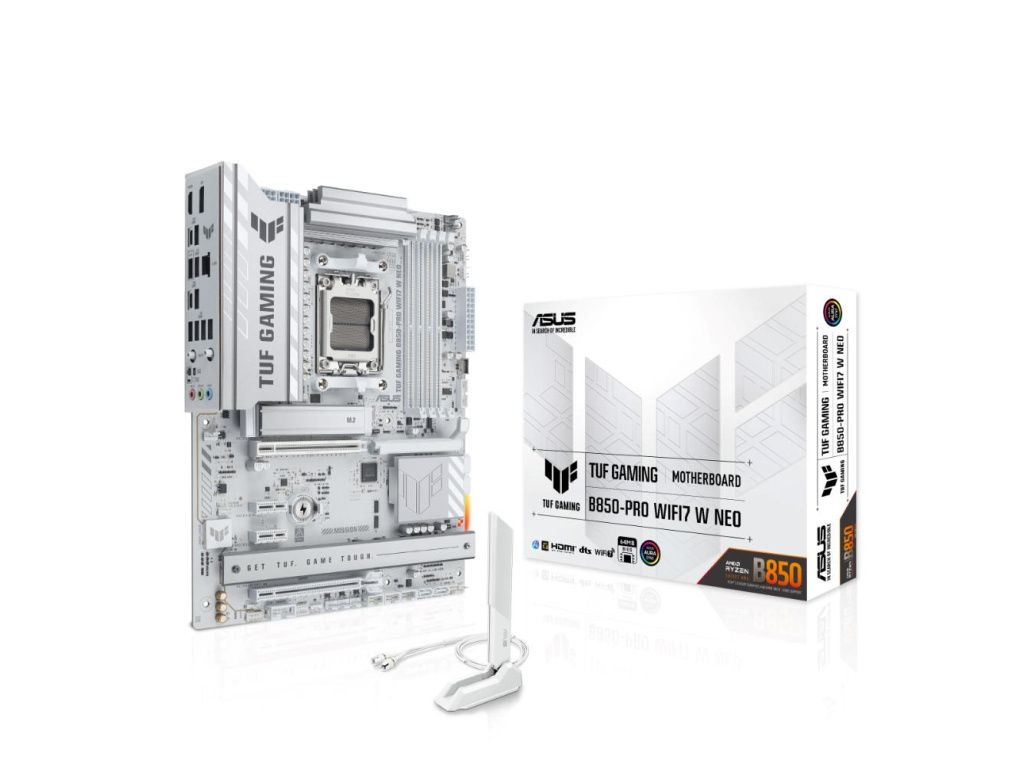

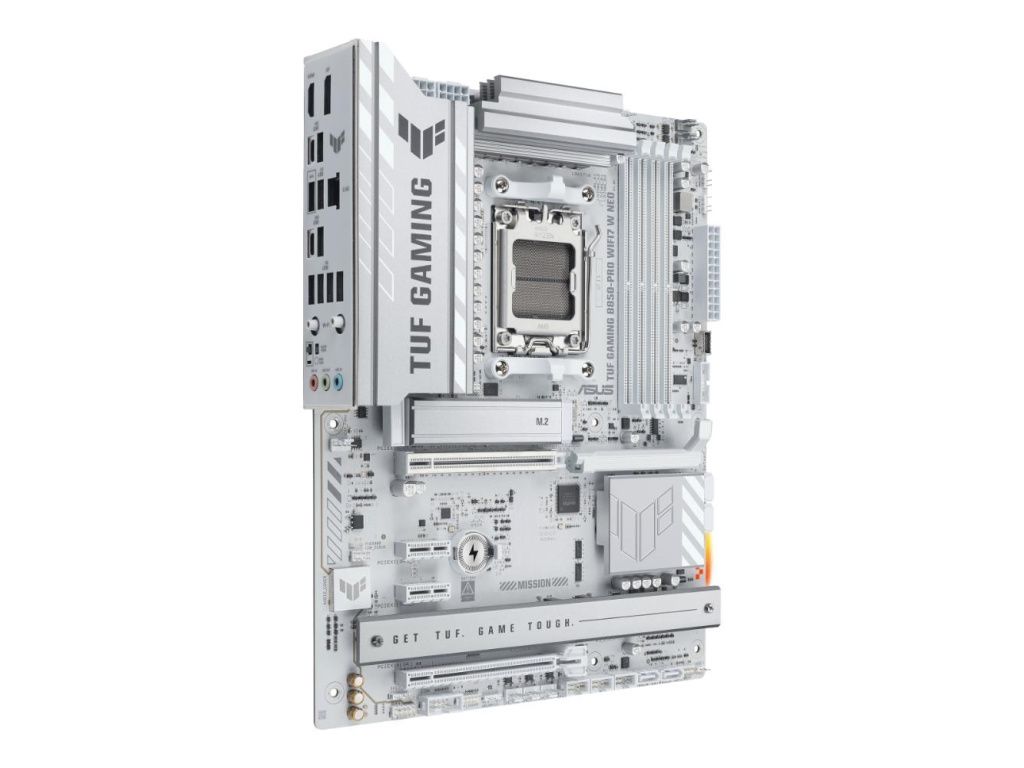

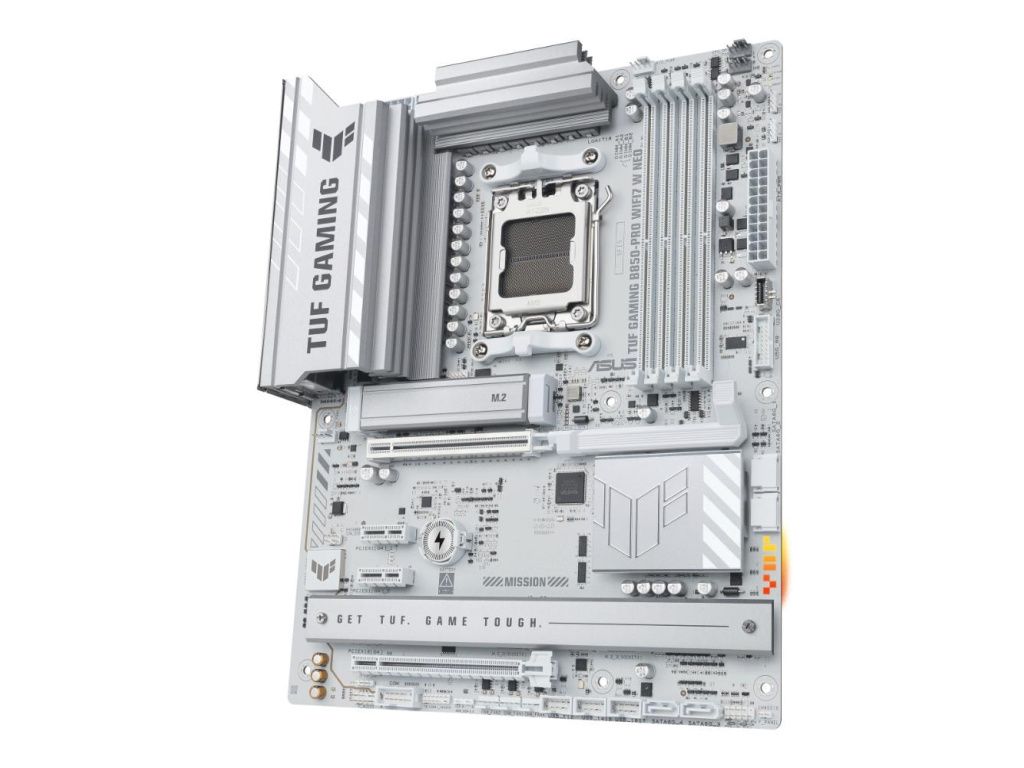

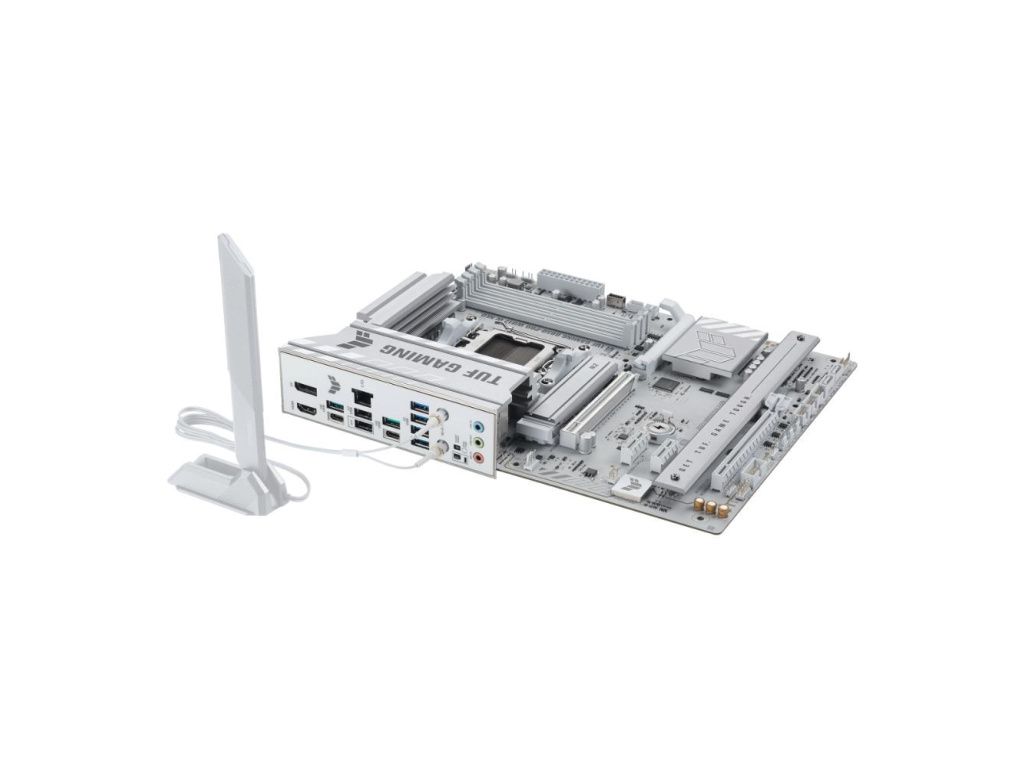

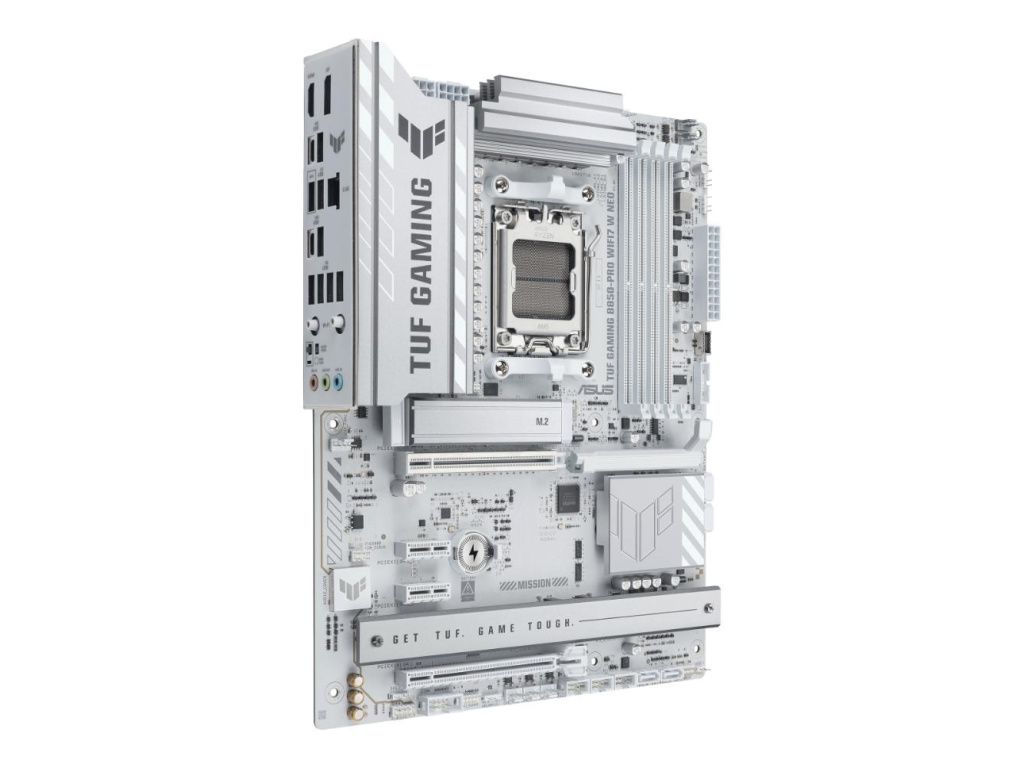

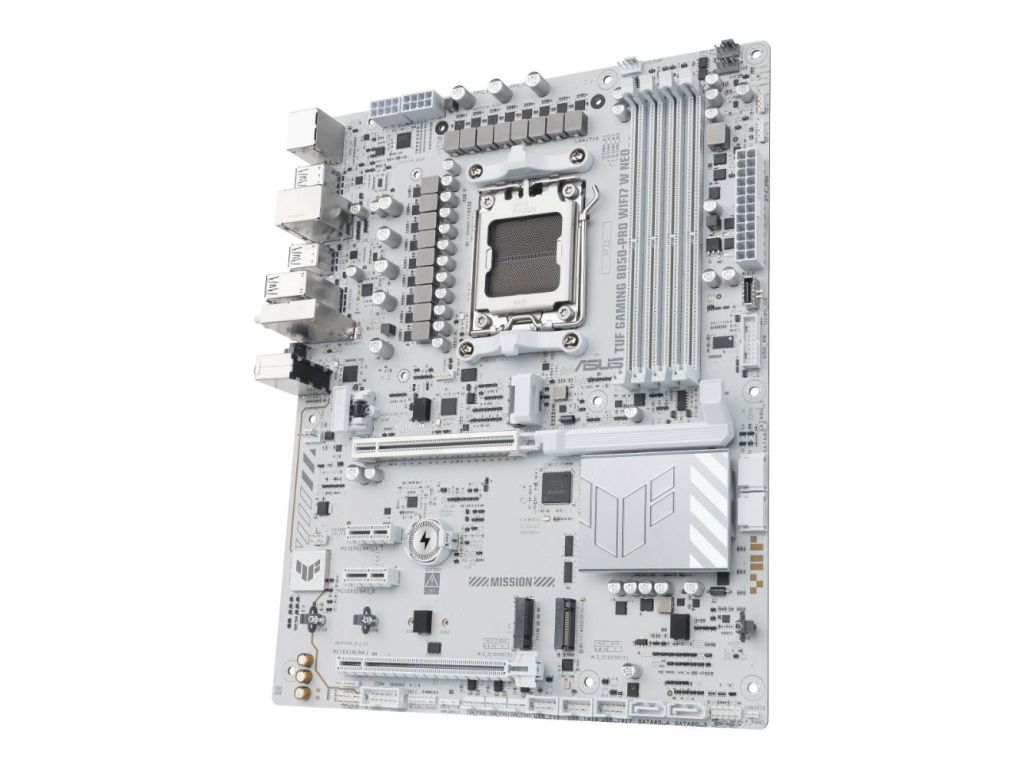

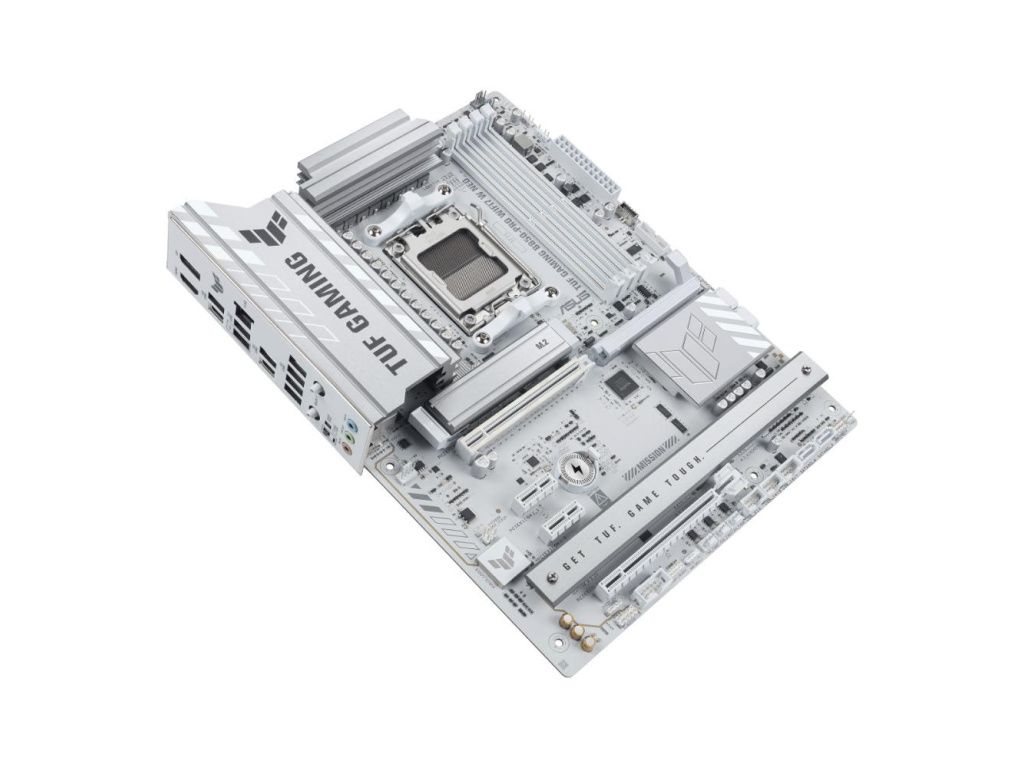

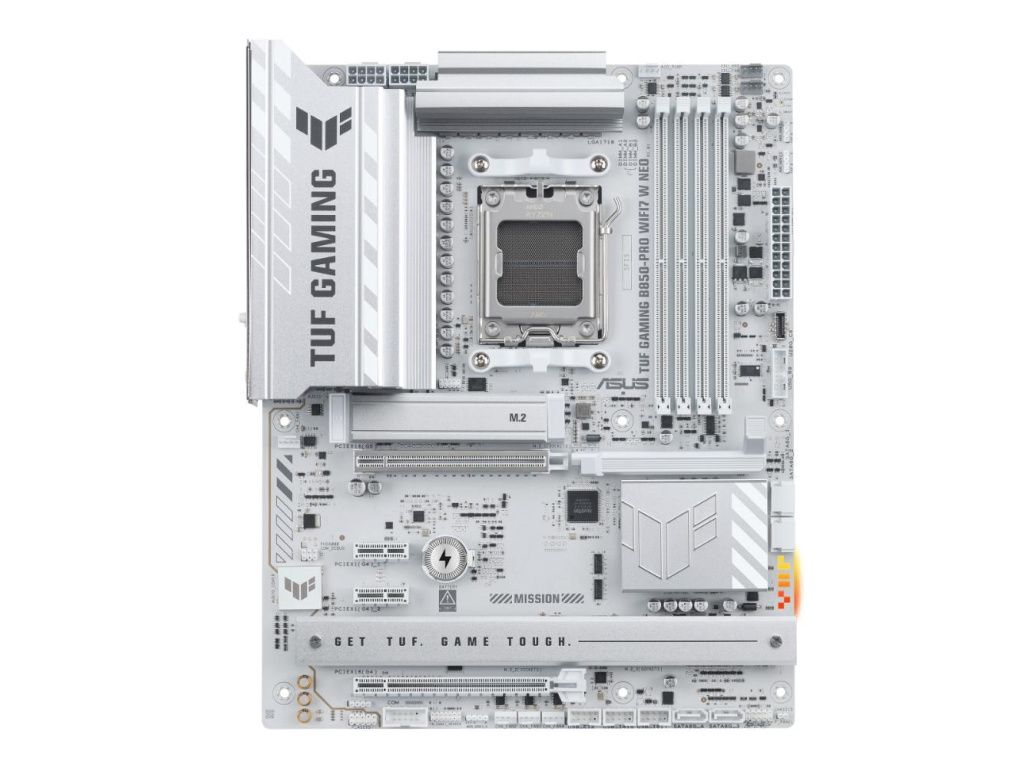

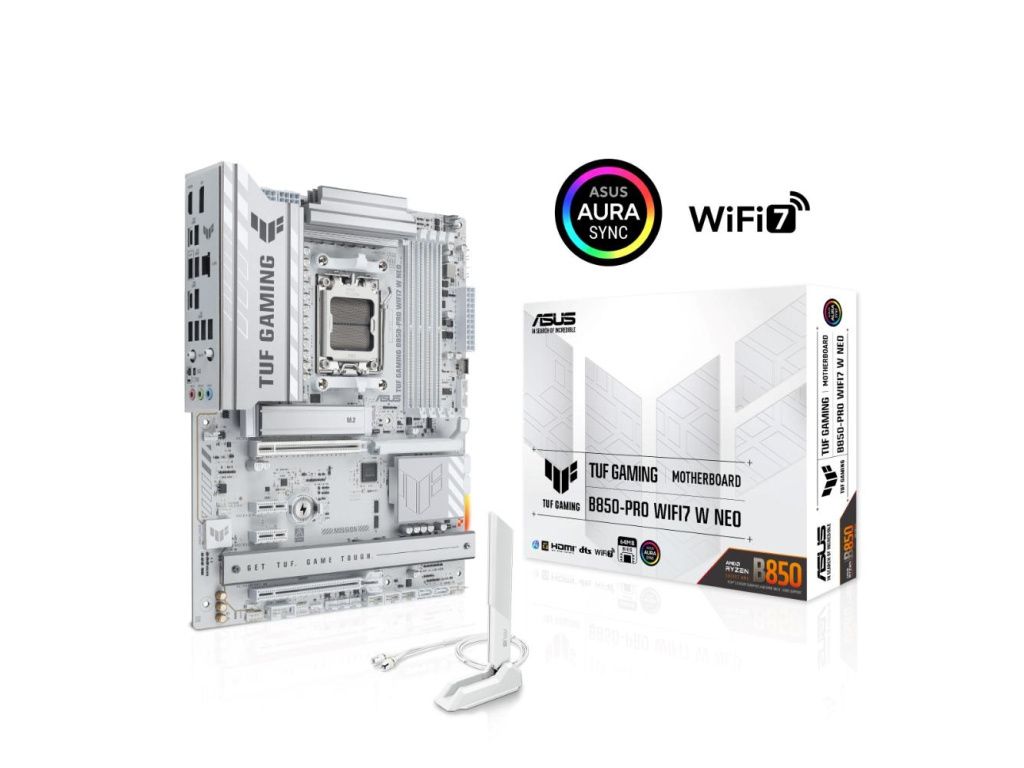

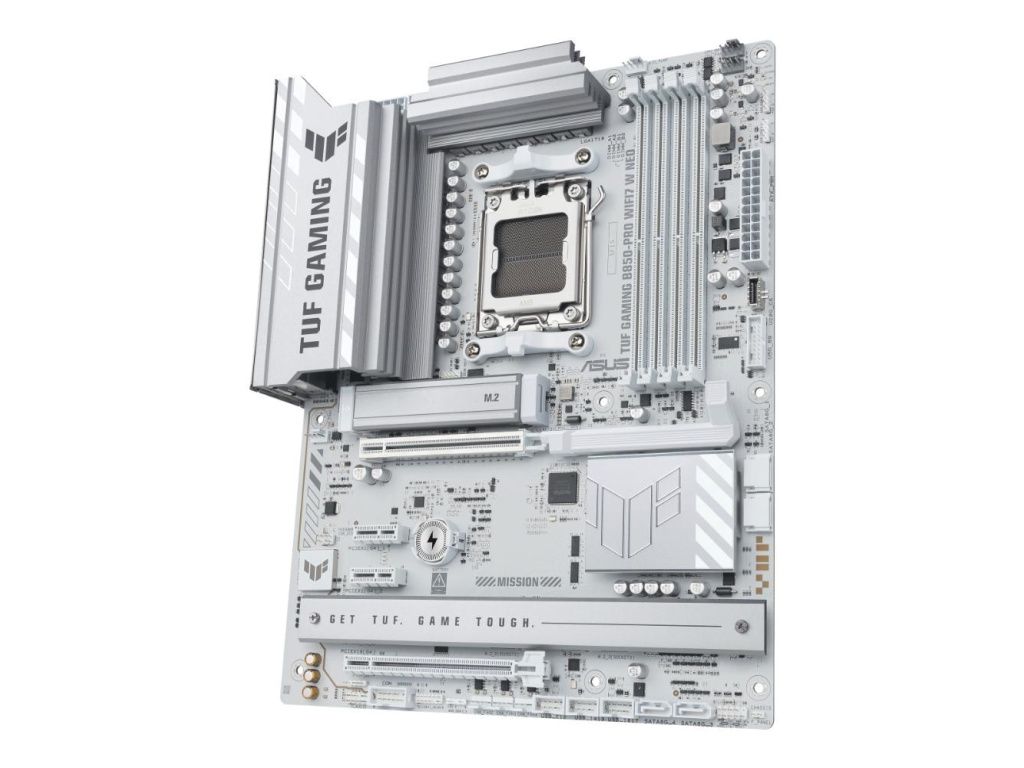

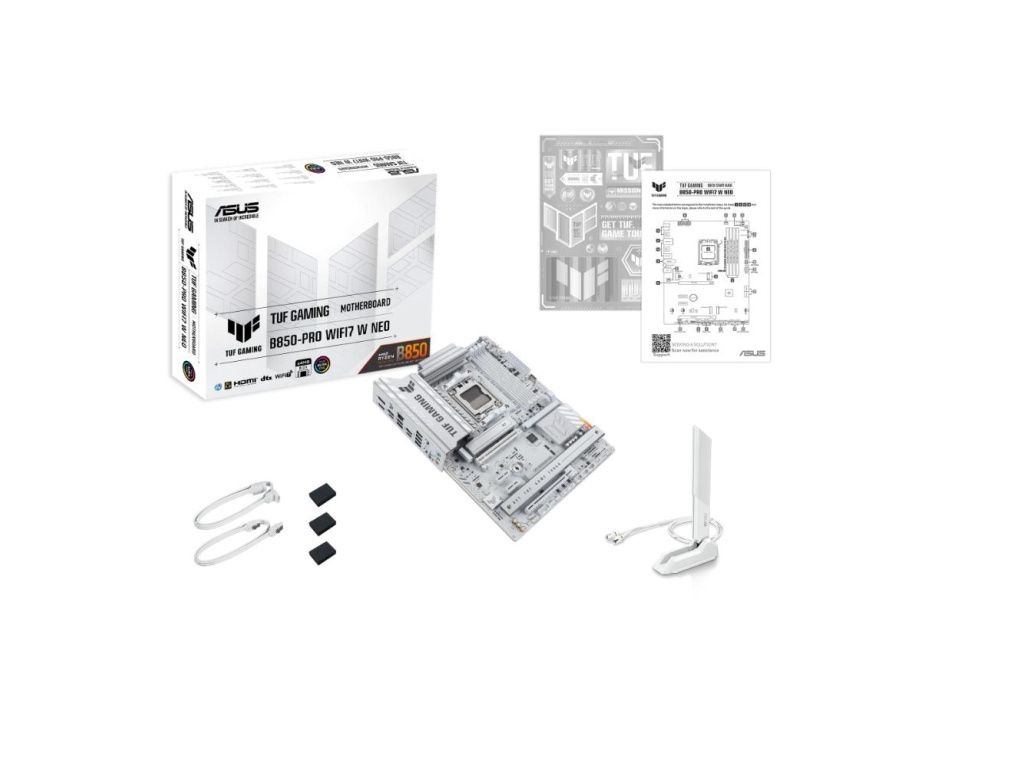

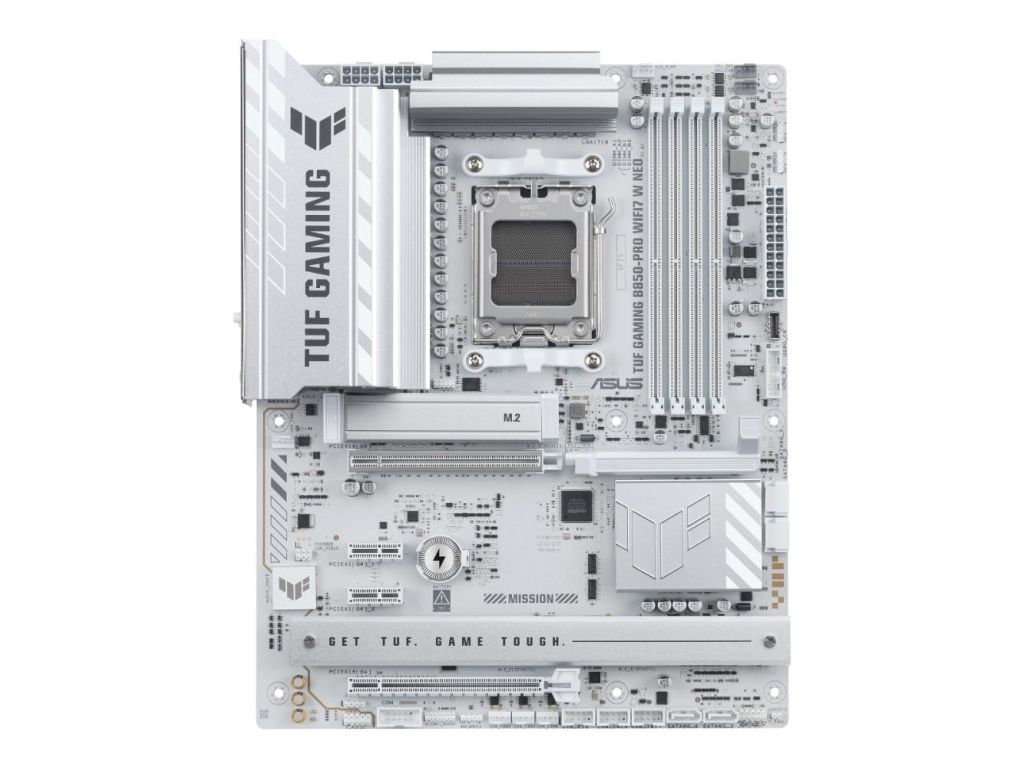

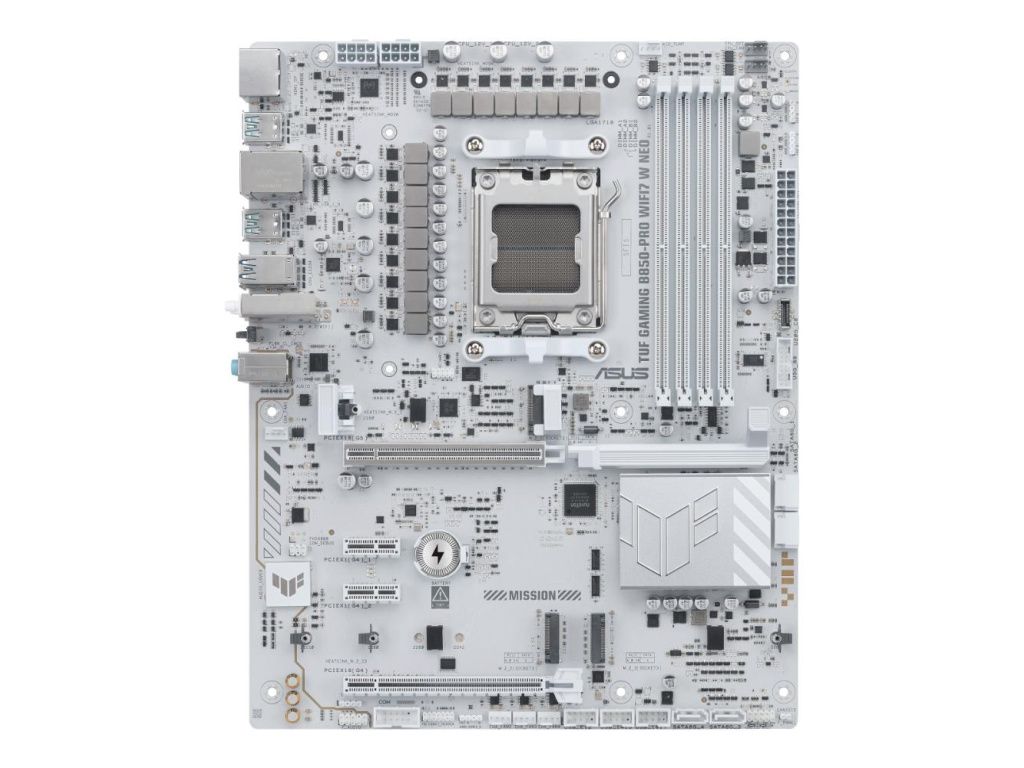

ASUS MB Sc AM5 TUF GAMING B850-PRO WIFI7 W NEO, AMD B850, 4xDDR5, 1xHDMI, 1xDP, 90MB1NW0-M0EAY0

CPU
AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors*
* Refer to https://www.asus.com/support/download-center/ for CPU support list.

Chipset
AMD B850 Chipset

Memory
4 x DIMM slots, max. 256GB, DDR5
Supports up to
8400+MT/s(OC)*/8200+MT/s(OC)** with Ryzen™ 9000 Series Processors,
9000+MT/s(OC)*/8600+MT/s(OC)** with Ryzen™ 8000 Series Processors,
8000+MT/s(OC)*/8000+MT/s(OC)** with Ryzen™ 7000 Series Processors,
ECC and Non-ECC Un-buffered DIMM***
Dual channel memory architecture
Supports AMD Extended Profiles for Overclocking (EXPO™)
ASUS Enhanced Memory Profile (AEMP)

Graphics
1 x DisplayPort**
1 x HDMI™ port***
* Available only on processors featuring integrated graphics.
** Supports max. 8K@30Hz as specified in DisplayPort 1.4.
*** Supports 4K@60Hz as specified in HDMI 2.1.

Expansion Slots
AMD Ryzen™ 9000 & 7000 Series Desktop Processors
1 x PCIe 5.0 x16 slot (supports x16 mode)
AMD Ryzen™ 8000 Series Desktop Processors
1 x PCIe 4.0 x16 slot (supports x8/x4 mode)
AMD B850 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
2 x PCIe 4.0 x1 slots

Storage
Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports
AMD Ryzen™ 9000 & 7000 Series Processors
M.2_1 slot (Key M), type 2280 (PCIe 5.0 x4)
M.2_2 slot (Key M), type 2242/2260/2280/22110 (PCIe 4.0 x4)
AMD Ryzen™ 8000 Series Processors
M.2_1 slot (Key M), type 2280 (PCIe 4.0 x4)
M.2_2 slot (Key M), type 2242/2260/2280/22110 (PCIe 4.0 x4/x2)
AMD B850 Chipset
M.2_3 slot (Key M), type 2280 (PCIe 4.0 x4)
4 x SATA 6Gb/s ports

RAID Support
AMD RAIDXpert2 Technology
RAID 0/1/5/10

Ethernet
1 x Realtek 2.5Gb Ethernet
TUF LANGuard

Wireless & Bluetooth
Wi-Fi 7 (Realtek RTL8922AE)
2x2 Wi-Fi 7 (802.11be)
Supports 2.4/5/6GHz frequency band
Bluetooth v5.4 (supports LE Audio)

USB
Rear USB (Total 10 ports)
4 x USB 10Gbps (2 x Type-A + 2 x USB Type-C)
4 x USB 5Gbps (Type-A)
2 x USB 2.0
Front USB (Total 9 ports)
1 x USB 20Gbps Type-C
1 x USB 5Gbps header (2 ports)
3 x USB 2.0 headers (6 ports)

Audio
Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC
120 dB SNR playback / 113 dB SNR recording
Supports up to 32-Bit/192 kHz playback

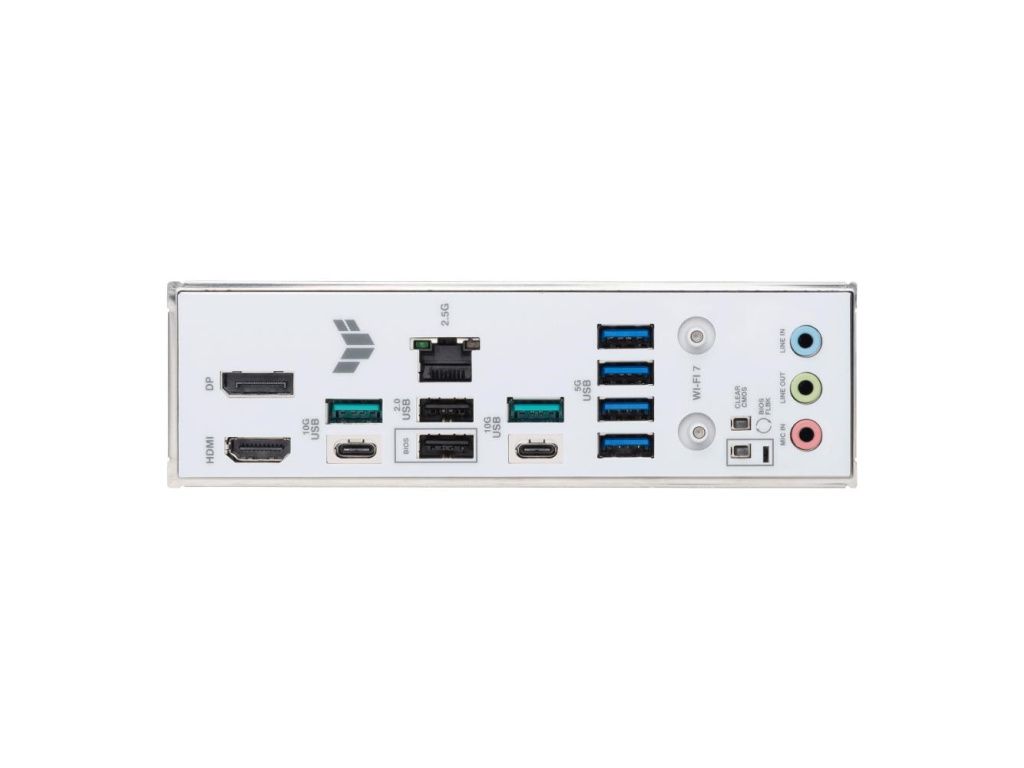

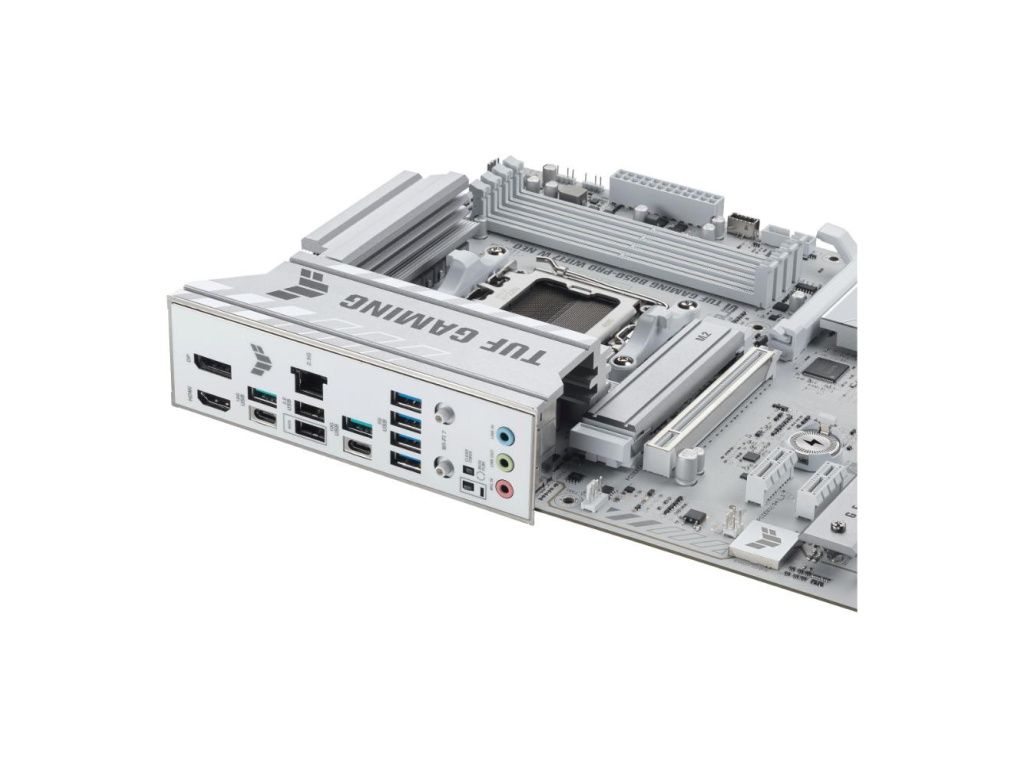

Back Panel I/O Ports
USB Type-C and Type-A ports
DisplayPort
HDMI™
Wi-Fi module
Realtek 2.5Gb Ethernet
3 x Audio jacks
BIOS FlashBack™ button
Clear CMOS button

Internal I/O Connectors
CPU / Chassis / AIO fan headers
M.2 and SATA connectors
USB headers
RGB headers
Front panel connectors

Special Features
ASUS TUF Protection
ASUS Q-Design
ASUS Thermal Solution
ASUS EZ DIY
Aura Sync

Software Features
Armoury Crate
Fan Xpert 4
ASUS AI Advisor
TUF GAMING CPU-Z
Norton 360 for Gamers (trial)
WinRAR (trial)

BIOS
64MB Flash ROM, UEFI AMI BIOS

Operating System
Windows 11

Form Factor
ATX Form Factor
12 inch x 9.6 inch (30.5 cm x 24.4 cm)
