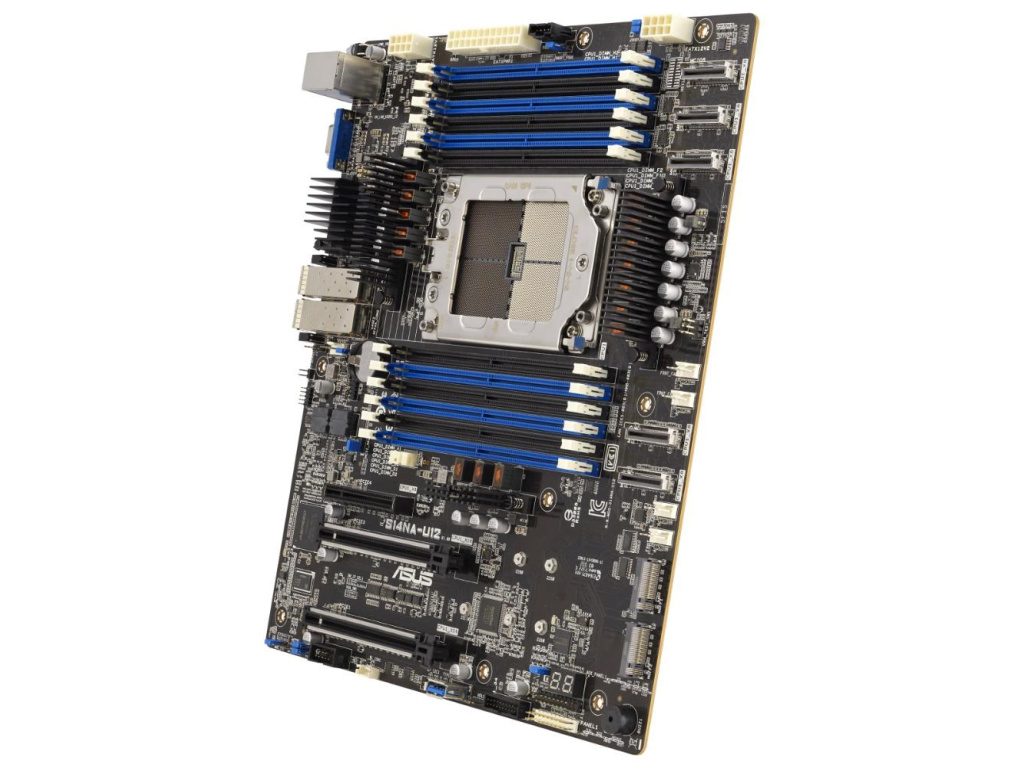

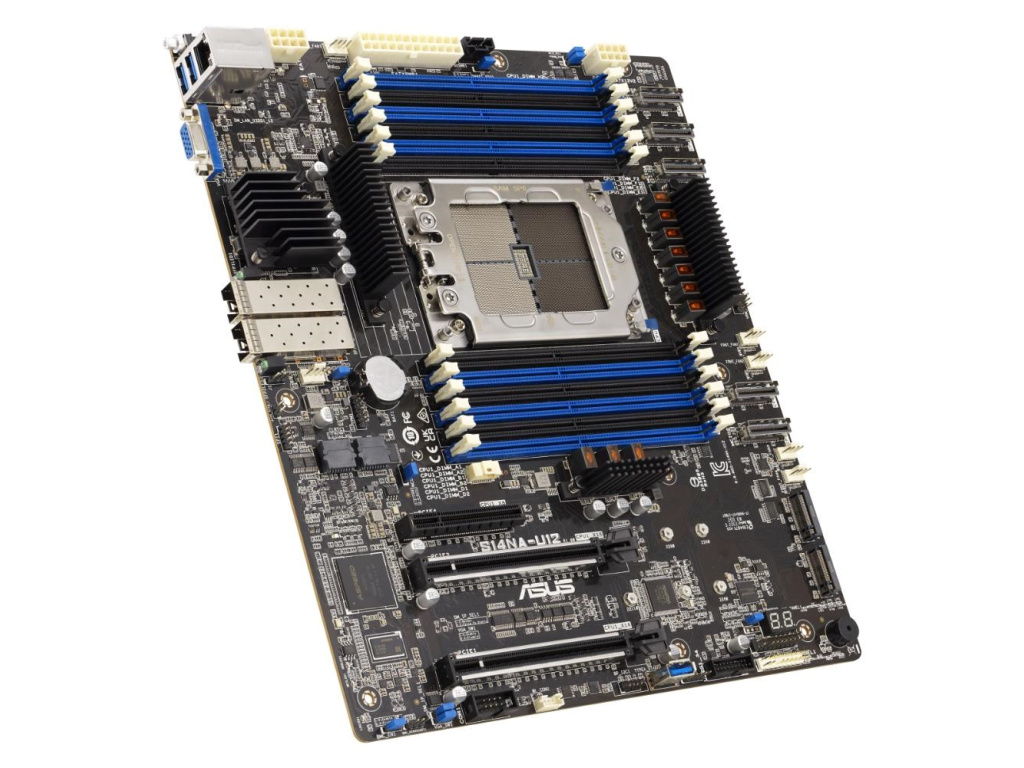

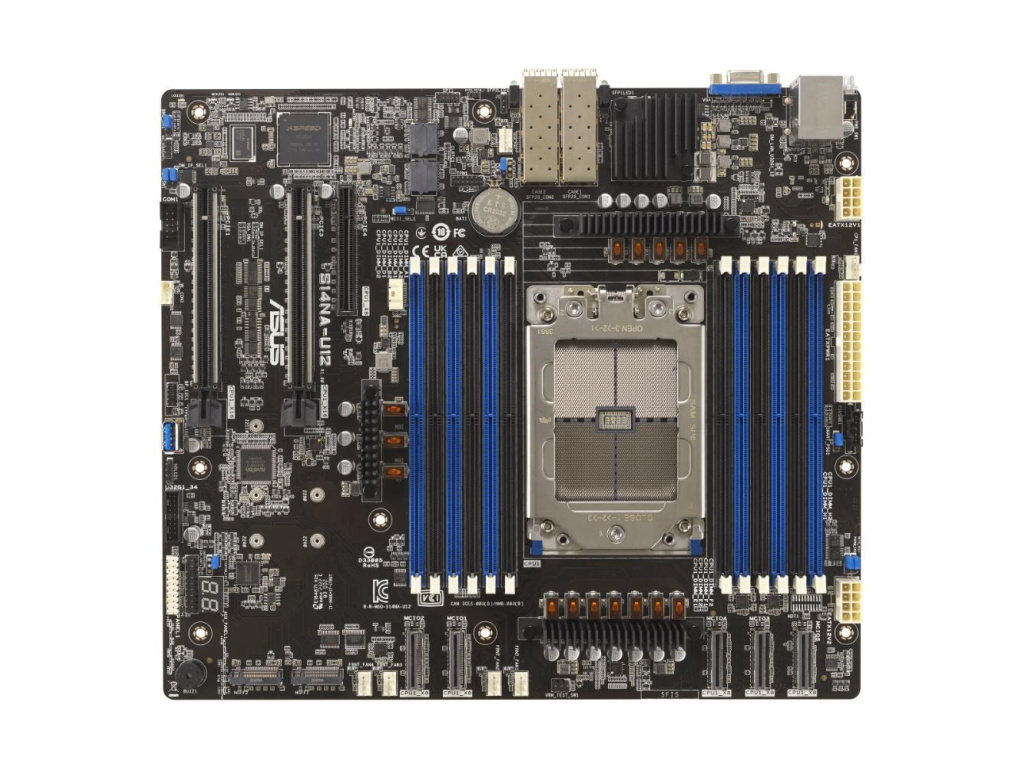

ASUS MB S14NA-U12 SP6, 12x DIMM DDR5, 1x VGA, CEB, 90SB0CG0-M0UAY0

Processor / System Bus
1 x Socket SP6 (LGA 4844)
AMD EPYC™ 8004 Series (up to 225W)

Memory
Total Slots: 12 (6-channel, 2-DIMM per Channel)
Capacity: Maximum up to 1152GB per CPU socket
Memory Type: DDR5 4800/4000/3600 RDIMM
Memory Sizes: 96GB, 64GB, 48GB, 32GB, 24GB, 16GB (RDIMM)
*Please refer to www.asus.com for latest memory AVL update

Expansion Slots
Total Slots: 3
2 x PCIe 5.0 x16 slot (x16 link, FL)
1 x PCIe 5.0 x8 slot (x8 link, FL)

Form Factor
CEB, 12" x 10.5"

Storage
M.2:
1 x M.2 (PCIe Gen5 x4, support 22110) (SATA Mode support)
1 x M.2 (PCIe Gen5 x4, support 2280) (SATA Mode support)
MCIO:
4 x MCIO connector (PCIe Gen5 x8), support 8 x NVMe drives
1 x MCIO connector (PCIe Gen5 x8), support 8 x SATA drives or 2 x NVMe drives

Networking
2 x SFP28 25Gb/s (Broadcom BCM57414B1KFSBG)
1 x Mgmt LAN

On Board I/O
1 x USB 3.2 Gen1 header (2 ports for front panel)
1 x USB 3.2 Gen1 port (Type-A vertical)
1 x Serial port header
6 x FAN headers (4-pin)
1 x TPM header
1 x Chassis Intruder header (2-pin)

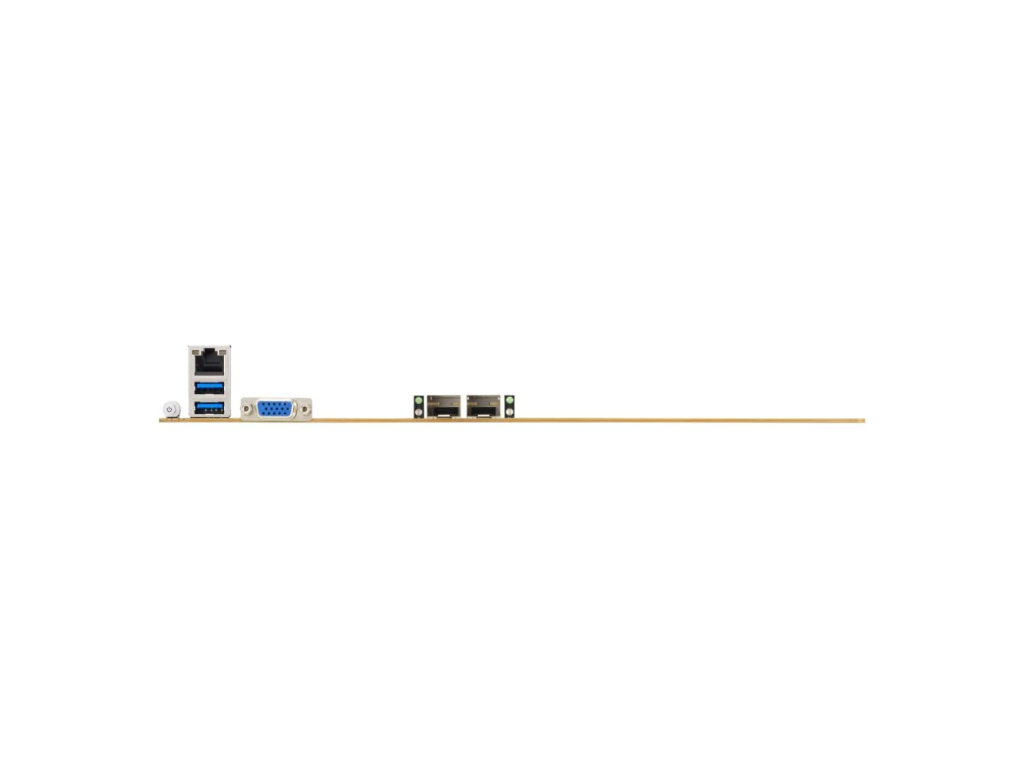

Back I/O Ports
2 x USB 3.2 Gen1 ports
1 x VGA port
2 x SFP28 25Gb/s
1 x RJ-45 Management port

Management Solution
ASUS Control Center
ASMB11-iKVM module for KVM-over-Internet

Environment
Operation temperature: 10? ~ 35?
Non-operation temperature: -40? ~ 70?
Non-operation humidity: 20% ~ 90% (non-condensing)

Accessories
Gift Box (1-in-1):
1 x I/O shield
1 x COM port cable
1 x Double M.2 screw
4 x Rubber
Bulk Pack (10-in-1):
1 x I/O shield
1 x Double M.2 screw
4 x Rubber
