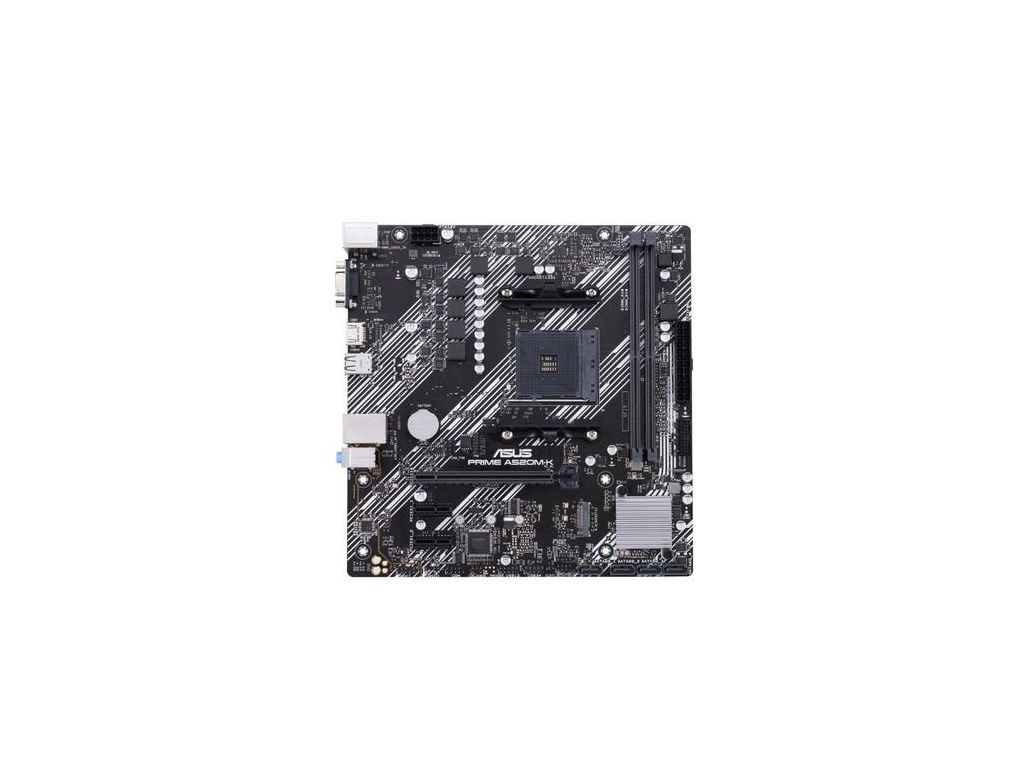

ASUS MB PRIME A520M-K soc.AM4 A520 DDR4 mATX M.2 D-Sub HDMI, 90MB1500-M0EAY0

Detailní popis produktu

Výkonná základní deska, socket AMD AM4, čipset AMD A520, podpora procesorů AMD Ryzen 3. generace; 2x DDR4 až 3200 MHz (až 4600 MHz OC), maximálně 64 GB; sloty: 1x PCI-E 3.0 x16, 2x PCI-E 3.0 x1; konektory: 4x SATA 6Gb/s, 1x M.2, 6x USB 2.0, 6x USB 3.2 Gen1, 1x PS/2, 1x GLAN, 1x VGA, 1x HDMI, 3x 3,5 mm audio jack; formát mATX


Zadní vstupy a výstupy
1 x PS/2 keyboard/mouse combo port(s)
1 x D-Sub
1 x HDMI
1 x LAN (RJ45) port(s)
4 x USB 3.2 Gen 1 (blue) Type-A
2 x USB 2.0
3 x Audio jack(s)
Vnitřní vstupy a výstupy
1 x CPU Fan connector(s)
1 x Chassis Fan connector(s)
1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
1 x SPI TPM header
4 x SATA 6Gb/s connector(s)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin EATX 12V Power connectors
1 x Front panel audio connector(s) (AAFP)
1 x Clear CMOS jumper(s)
1 x System panel connector
1 x COM port header
1 x Speaker connector

mATX ( 22.6 cm x 22.1 cm )


EAN: 4718017826921
