TP-LINK TL-SG116 GBit switch, 16x 10/100/1000Mbps 16port, steel case, TL-SG116

Detailní popis produktu

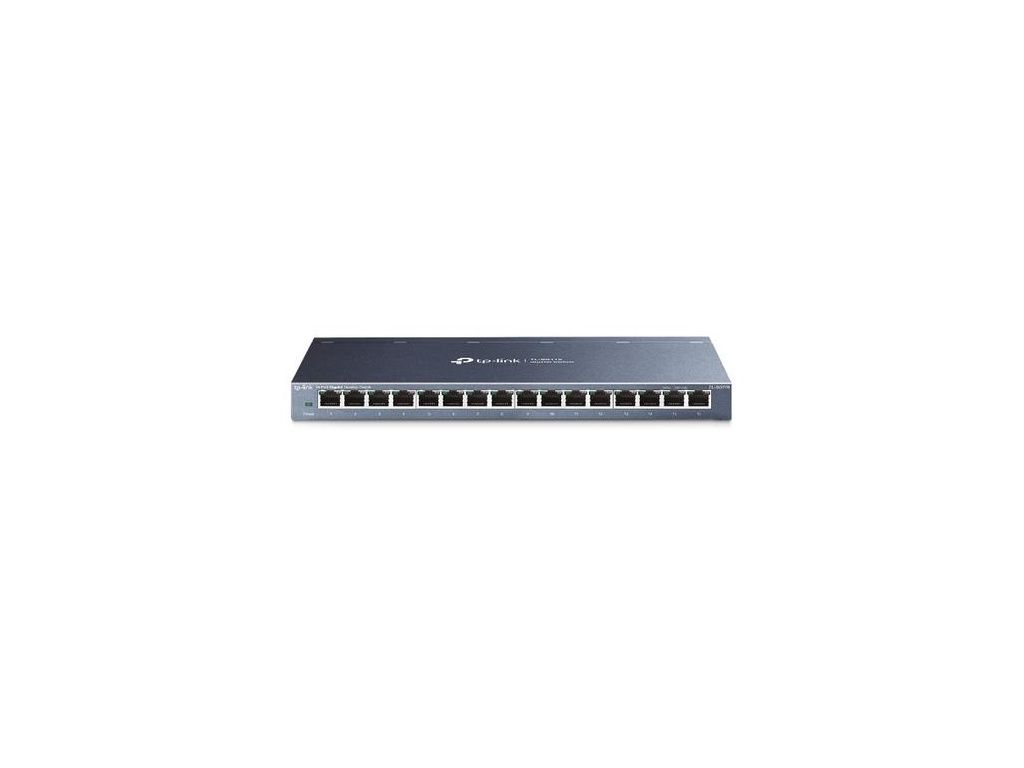

16-Port Gigabit Desktop Switch
TL-SG116


16 10/100/1000Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX
Green Ethernet technology saves power consumption
IEEE 802.3x flow control provides reliable data transfer
Steel housing, desktop or wall-mounting design
Support 802.1p/DSCP QoS and IGMP Snooping function
Plug and play, with no configuration needed



HARDWARE FEATURES



Standards and Protocols
IEEE 802.3i /802.3u /802.3ab /802.3x /802.1p


Interface
16 10/100/1000Mbps Ports, Auto-Negotiation, Auto-MDI/MDIX

Fan Quantity
Fanless

External Power Supply
External Power Adapter (Output: 12VDC / 1.0A)

LED Indicator
System Power
Link/Act indicators per port built into each RJ-45 port


Dimensions ( W x D x H )
11.26 x 4.4 x 1.0 in. (286*111.7*25.4 mm)

Max Power Consumption
10W(220V/50Hz)

Max Heat Dissipation
34.12BTU/h


PERFORMANCE



Packet Forwarding Rate
23.8Mpps

MAC Address Table
8K

Packet Buffer Memory
4.1Mb

Jumbo Frame
10KB


SOFTWARE FEATURES



Advanced Features
Green Technology
802.3X Flow Control
802.1p/DSCP QoS
IGMP Snooping

Transfer Method
Store and Forward


OTHERS



Certification
CE, FCC ,RoHS

Package Contents
16-Port 10/100/1000Mbps Desktop Switch
Power Adapter
Installation Guide
Rubber Feet

EAN: 6935364084325
