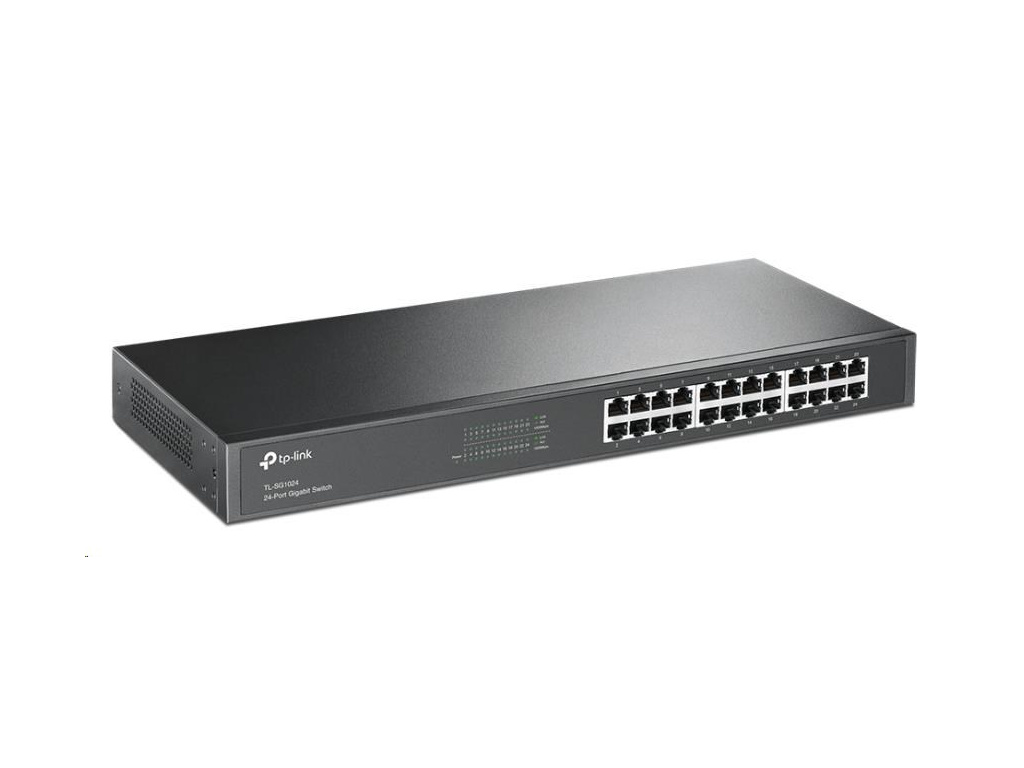

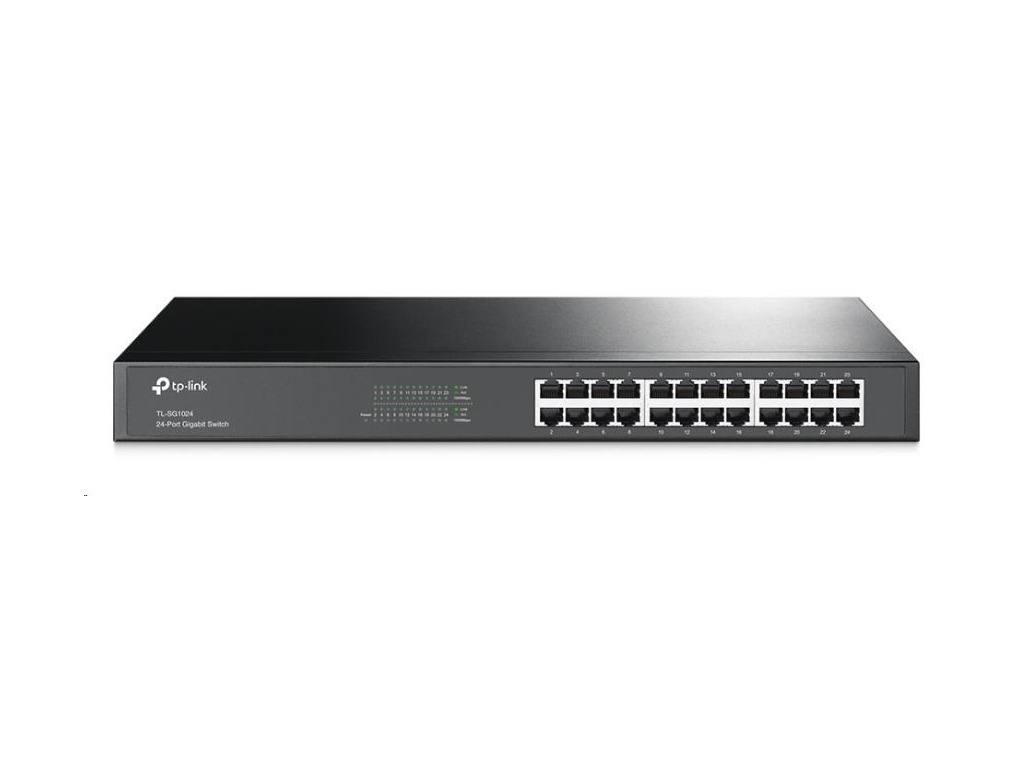

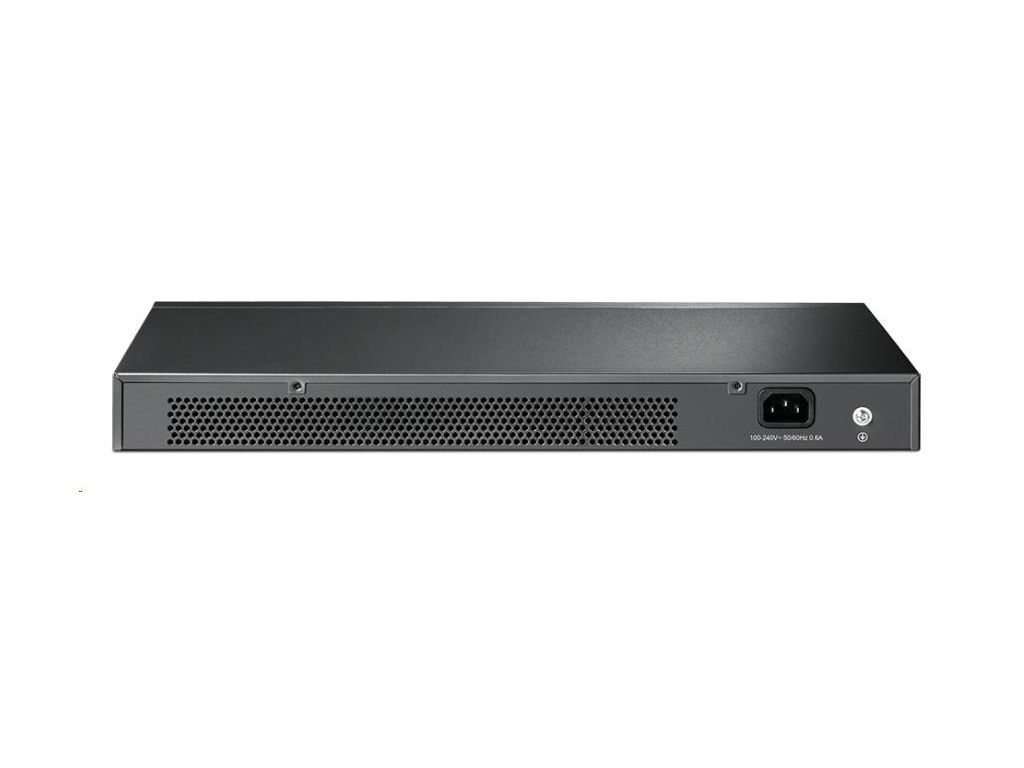

TP-Link switch TL-SG1024 (24xGbE, fanless), TL-SG1024

Detailní popis produktu

HARDWARE FEATURES Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab , IEEE 802.3x Interface 24 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX) Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
100BASE-TX/1000BASE-T: UTP category 5, 5e or above cable (maximum 100m) Fan Quantity Fanless Physical Security Lock Yes Power Supply 100-240VAC, 50/60Hz Dimensions ( W x D x H ) 17.3 × 5.5 × 1.7 in (440 × 140 × 44 mm) Mounting Rack-Mountable Max. Power Consumption 13.62W Max. Heat Dissipation 46.44BTU/h PERFORMANCE Advanced Features • Isolation Mode: Ports 1-22
• Loop Prevention: Ports 1-24 Jumbo Frame 10KB QoS 802.1p/DSCP QoS*
*Only for V11 and later version Green Technology Yes Transmission Method Store-and-Forward Switching Capacity 48Gbps Packet Forwarding Rate 35.7Mpps MAC Address Table 8K OTHERS Certification FCC, CE, RoHS Package Content 24-Port Gigabit Rackmount Switch
Power Cord
Installation Guide
Rackmount Kits
Rubber Feet Environment Operating Temperature: 0?~40? (32?~104?);
Storage Temperature: -40?~70? (-40?~158?);
Operating Humidity: 10%~90% non-condensing;
Storage Humidity: 5%~90% non-condensing
