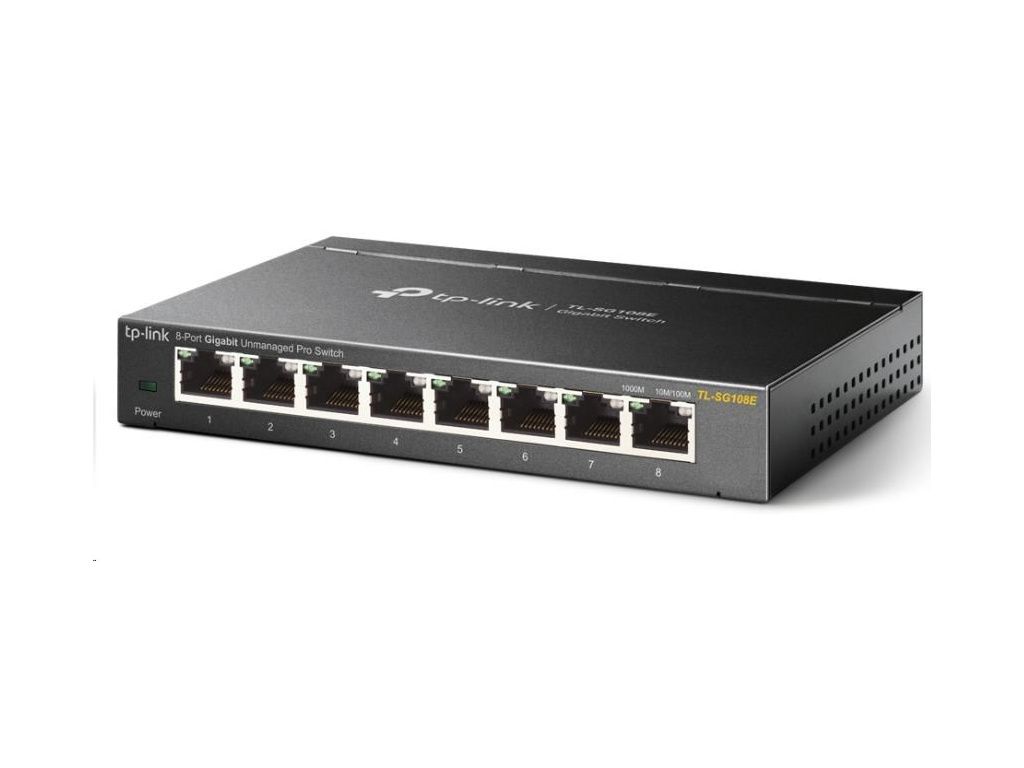

TP-Link Easy Smart switch TL-SG108E (8xGbE, fanless), TL-SG108E

Detailní popis produktu

HARDWARE FEATURES Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p Interface 8 10/100/1000 Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100? STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100? STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100? STP (maximum 100m) Fan Quantity Fanless Power Supply External Power Adapter(Output: 5 VDC/ 0.6 A) Dimensions ( W x D x H ) 6.2 × 4.0 × 1.0 in (158 × 101 × 25 mm) Max Power Consumption 3.68 W (220 V/ 50 Hz) Max Heat Dissipation 12.55 BTU/h PERFORMANCE Switching Capacity 16 Gbps Packet Forwarding Rate 11.9 Mpps MAC Address Table 4 K Packet Buffer Memory 1.5 Mb Jumbo Frame 16 KB SOFTWARE FEATURES Quality of Service Support Port-based/802.1p/DSCP priority
Support 4 priority queues
Rate Limit
Storm Control L2 Features IGMP Snooping V1/V2/V3
Static Link Aggregation
Port Mirroring
Cable Diagnostics
Loop Prevention VLAN Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)
MTU/Port/Tag VLAN Transmission Method Store-And-Forward OTHERS Certification FCC, CE, RoHS Package Contents TL-SG108E
Power Adapter
Installation Guide
Rubber Feet System Requirements Microsoft Windows for running Utility Environment Operating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
