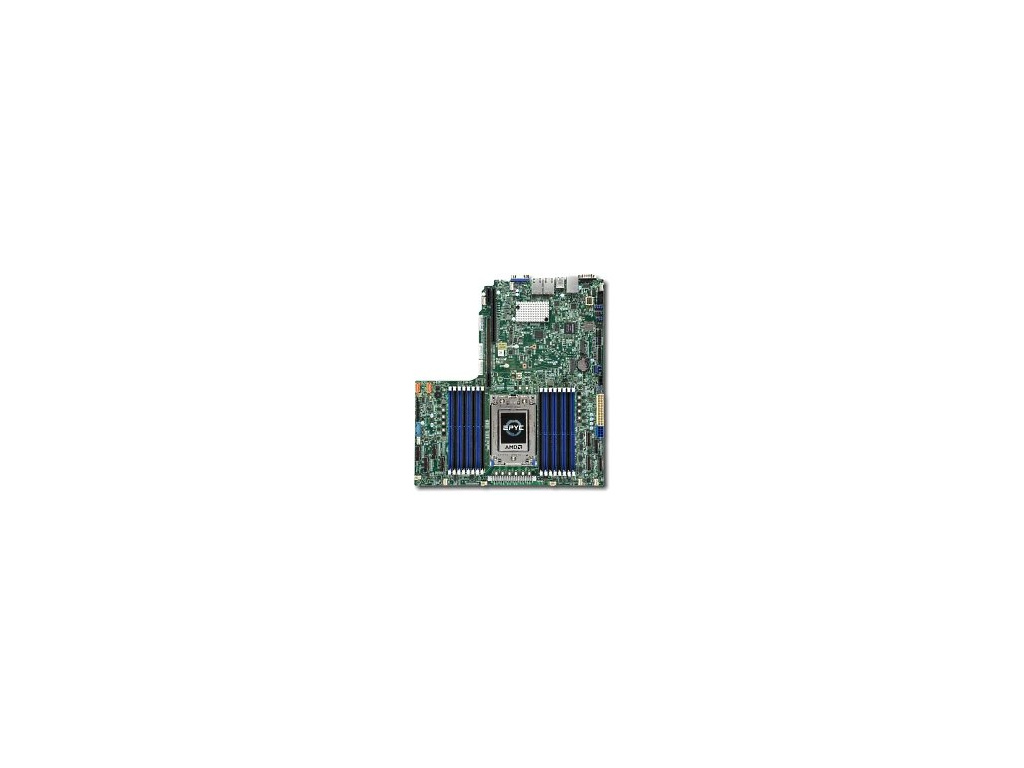

    SUPERMICRO MB 1xSP3 (Epyc 7000series SoC), 16x DDR4, 16xSATA3 + 12x NVMe, PCIe 3.0 (x32, x16), IPMI, 2x 10Gb, IPMI, bulk, MBD-H11SSW-NT-O

    Kód: ALIASBSRMBDH11SSWNTO
    Neohodnoceno Podrobnosti hodnocení
    SUPERMICRO MB 1xSP3 (Epyc 7000series SoC), 16x DDR4, 16xSATA3 + 12x NVMe, PCIe 3.0 (x32, x16), IPMI, 2x 10Gb, IPMI, bulk, MBD-H11SSW-NT-O
    18 769 Kč 15 512 Kč bez DPH
    Vyprodáno
    Možnosti doručení
    Položka byla vyprodána…

    Detailní informace

    Ověřený obchod
    Ověřený obchod
    Více než 25 let na trhu s IT
    SKLAD
    Sklad
    30 000 produktů připraveno skladem
    Výdejní místa KUPSIONLINE.CZ
    Široká síť výdejních míst
    Více než 7 000 výdejních míst v ČR
    Doprava zdarma
    Doprava zdarma
    Při nákupu nad 10tis. Kč doprava zdarma

    Detailní popis produktu

    Key Features



    1.Single AMD EPYC™ 7001/7002* Series Processor (*AMD EPYC 7002 series drop-in support requires board revision 2.x)



    2.2TB Registered ECC DDR4 2666MHz SDRAM in 16 DIMMs 4TB Registered ECC DDR4 3200MHz SDRAM in 16 DIMMs (Board revision 2.x required)



    3.Expansion slots: 1 PCI-E 3.0 x32 Left Riser Slot      1 PCI-E 3.0 x16 Right Riser Slot

    M.2 Interface: 2 PCI-E 3.0 x2   M.2 Form Factor: 2280, 22110   M.2 Key: M-key



    4.12 NVMe via SlimSAS, 4 NVMe or 16 SATA3 via SlimSAS, 2 M.2, 2 SATA3



    5.2x 10GBase-T LAN Ports via Broadcom BCM57416, 1 Realtek RTL8211E PHY (dedicated IPMI)



    6.ASPEED AST2500 BMC graphics



    7.Up to 7 USB 3.0 ports (4 rear + 2 front + 1 Type A)



    8.6 PWM 4-pin Fans with tachometer status monitoring



    Specifications

































    Product SKUs

    MBD-H11SSW-NT

    • H11SSW-NT
    MBD-H11SSW-NT-B

    • H11SSW-NT (Bulk Pack)























    Physical Stats

    Form Factor

    • Proprietary
    Dimensions

    • 13.4" x 12.29" (34cm x 31.2cm)



























    Processor/Chipset

    CPU

    • Single AMD EPYC™ 7001/7002* series Processor (*Board revision 2.x required)

    • Socket SP3
    Cores

    • Up to 32 Cores

    • Up to 64 Cores (Board revision 2.x required)
    Chipset

    • System on Chip



































    System Memory

    Memory Capacity

    • 16 DIMM slots

    • Supports up to 2TB Registered ECC DDR4 2666MHz SDRAM in 16 DIMMs

    • Supports up to 4TB Registered ECC DDR4 3200MHz SDRAM (Board revision 2.x required)

    • 8-channel memory bus
    Memory Type

    • DDR4 2666 MHz Registered ECC, 288-pin gold-plated DIMMs

    • DDR4 3200 MHz Registered ECC, 288-pin gold-plated DIMMs (Board revision 2.x required)
    DIMM Sizes

    • 8GB, 16GB, 32GB, 64GB, 128GB, 256GB* (*Board revision 2.x required)
    Memory Voltage

    • 1.2V
    Error Detection

    • Corrects single-bit errors

    • Detects double-bit errors (using ECC memory)































    On-Board Devices

    SATA

    • SATA3 (6 Gbps)
    IPMI

    • Support for Intelligent Platform Management Interface v.2.0

    • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

    • ASPEED AST2500 BMC
    Network Controllers

    • 2x 10GBase-T LAN Ports via Broadcom BCM57416

    • 1 Realtek RTL8211E PHY (dedicated IPMI)
    VGA

    • ASPEED AST2500 BMC











































    Input / Output

    SATA

    • 2 SATA3 (6 Gbps) ports
    SATA/NVMe Hybrid

    • 16 SATA3 / 4 NVMe
    NVMe

    • 12 NVMe
    LAN

    • 2 RJ45 10GBase-T Ethernet LAN ports

    • 1 RJ45 Dedicated IPMI LAN port
    USB

    • 7 USB 3.0 ports

      (4 rear + 2 front + 1 Type A)
    VGA

    • 1 VGA port
    Others

    • 2 COM ports (rear)

    • 2 SATA DOM power connectors

    • 1 TPM 2.0 header

    • 1 TPM 1.2 header


























    Expansion Slots

    PCI-Express

    • 1 PCI-E 3.0 x32 Left Riser Slot

    • 1 PCI-E 3.0 x16 Right Riser Slot

    M.2

    • Interface: 2 PCI-E 3.0 x2

    • Form factor: 2280, 22110

    • Key: M-key































    Chassis ( Optimized for H11SSW-NT )

    2U
























    Server(s) ( with H11SSW-NT )

    Model(s)
























    System BIOS

    BIOS Type

    • AMI 128Mb SPI Flash EEPROM
    BIOS Features

    • Plug and Play (PnP)

    • DMI 2.3

    • PCI 2.2

    • ACPI 5.1

    • USB Keyboard Support

    • SMBIOS 3.1.1























    Management

    Software

    Power Configurations

    • ACPI Power Management

    • Power-on mode control for AC power loss recovery



































    PC Health Monitoring

    CPU

    • Monitors CPU Core Voltages, +1.8V, +3.3V, +5V, +5V standby, +3.3V standby

    • CPU switching voltage regulator

    • Supports system management utility

    • VBAT
    FAN

    • Up to 6-fan status tachometer monitoring

    • Up to 6 4-pin fan headers

    • Dual Cooling Zone

    • Status monitor for speed control

    • Pulse Width Modulated (PWM) fan connectors
    Temperature

    • Monitoring for CPU and chassis environment

    • CPU Thermal Trip Support

    • Thermal control for 6x Fan connectors

    • I²C Temperature Sensing Logic
    LED

    • CPU / System Overheat LED
    Other Features

    • Chassis Intrusion Detection

    • Chassis Intrusion Header

    • UID



















    Operating Environment / Compliance

    Environmental Specifications

    • Operating Temperature:

      10°C to 35°C (50°F to 95°F)

    • Non-operating Temperature:

      -40°C to 70°C (-40°F to 158°F)

    • Operating Relative Humidity:

      8% to 90% (non-condensing)

    • Non-operating Relative Humidity:

      5% to 95% (non-condensing)






    Parts List



































    Bulk Pack List

      Part Number Qty Description
    H11SSW-NT MBD-H11SSW-NT-B 1 H11SSW-NT Motherboard
    I/O Cable CBL-SAST-0813 1 SLIMLINE SAS x8 (LA) to SATA x4,INT, 16/26CM,32AWG



































    Retail Pack List

      Part Number Qty Description
    H11SSW-NT MBD-H11SSW-NT-O 1 H11SSW-NT Motherboard
    I/O Cable CBL-SAST-0813 1 SLIMLINE SAS x8 (LA) to SATA x4,INT, 16/26CM,32AWG




















































    Optional Parts List

      Part Number Qty Description
    I/O Cable CBL-SAST-0814 - SLIMLINE SAS x8 (LA) to 2x Oculink x4,INT,13CM,34AWG
    I/O Cable CBL-SAST-0815 - SLIMLINE SAS x8 to 2x Oculink x4,INT, 22CM,34AWG
    I/O Cable CBL-SAST-0816 - SLIMLINE SAS x8 (LA) to 2x Oculink x4,INT, 28CM,34AWG
    TPM security module AOM-TPM-9655V - TPM 1.2 module with Infineon 9655, RoHS/REACH,PBF;
    AOM-TPM-9665V - TPM 2.0 module with Infineon 9665, RoHS/REACH,PBF;




    EAN:

    Doplňkové parametry

    Kategorie: Socket SP3
    Záruka: 3 roky
    Hmotnost: 1.28 kg
    EAN: 672042360055
    Kód výrobce: MBD-H11SSW-NT-O
