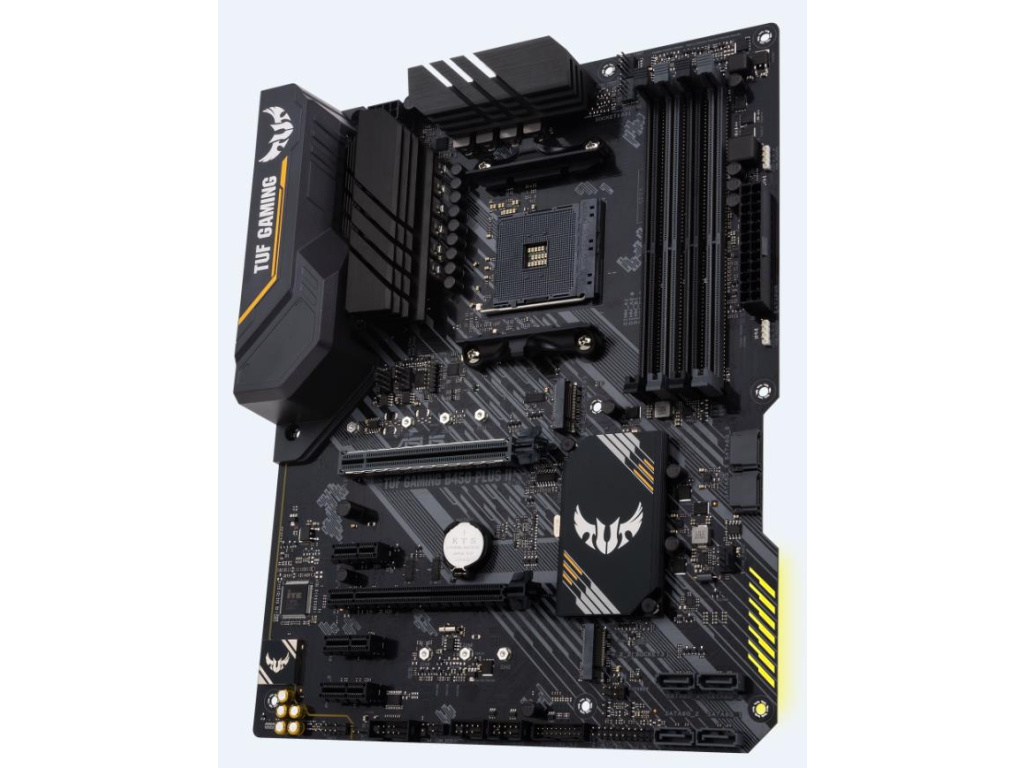

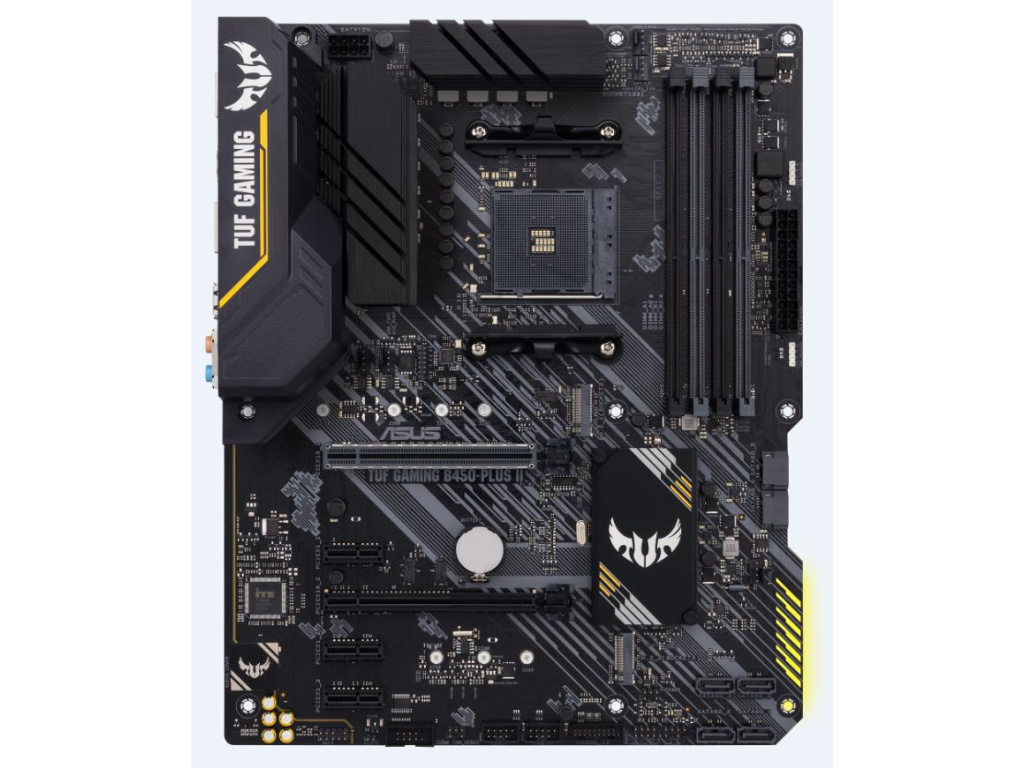

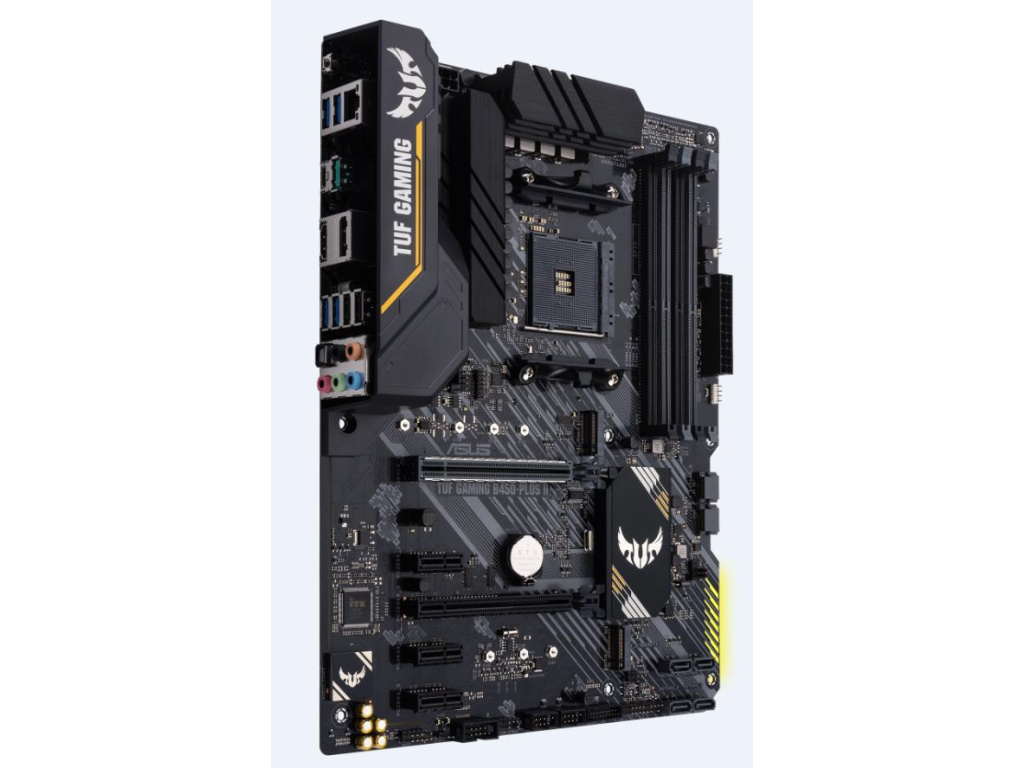

ASUS TUF GAMING B450-PLUS II, 90MB1650-M0EAY0

Detailní popis produktu

Chipset: AMD B450
Rozměrový formát: ATX Form Factor (305 mm x 244 mm)
Podpora pro procesory: 3rd/2nd/1st Gen AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/Athlon™ with Radeon™ Vega Graphics Processors
Patice procesoru: AM4
Pozice na paměti: 4x DDR4 DIMM
Podpora pro paměti: 4400(O.C)/3533(O.C)/3466(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory
Max.velikost operační paměti: 128 GB
Podpora pro paměti typu: DDR4
Dual Channel Memory Architecture
ECC Memory (ECC mode) support varies by CPU
Grafické výstupy:
Integrated Graphics Processor (na základě procesorů 2. a 1. generace AMD s Radeon Grpahics/Athlon)
Multi GPU: AMD CrossFireX™ Technology
Zvuková karta:
Realtek® ALC S1200A 8-Channel High Definition Audio CODEC
Síťová karta:
Realtek® L8200A
Rozšiřující sloty:

3rd/2nd/1st Gen AMD Ryzen™ Processors
1x PCIe 3.0/2.0 x16 (x16 mode)

2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors
1x PCIe 3.0/2.0 x16 (x8 mode)

AMD Athlon™ with Radeon™ Vega Graphics Processors
1x PCIe 3.0/2.0 x16 (x4 mode)

AMD B450 chipset
1x PCIe 2.0 x16 (max at x4 mode)
3x PCIe 2.0 x1
RAID řadič: 0, 1, 10
SATA:
6x SATA 6Gb/s ports
M.2:
1x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
1x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (PCIE 2.0 x 4 mode)
USB:

zadní USB porty ( celkem 8 )
2x USB 3.2 Gen 2 port(s)(1 x USB Type-C®)(1 x Type-A +0 x )
4x USB 3.2 Gen 1 port(s)(4 x Type-A)
2x USB 2.0 port(s)(2 x Type-A)

přední USB porty ( celkem 6 )
2x USB 3.2 Gen 1 port(s)
4x USB 2.0 port(s)
Interní porty:
1x CPU Fan connector(s) (1 x 4 -pin)
3x Chassis Fan connector(s) (3 x 4 -pin)
1x AIO_PUMP connector (1 x 4 -pin)
2x Aura RGB Strip Header
1x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) (19-pin)
2x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
1x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (PCIE 2.0 x 4 mode)
1x SPI TPM header
6x SATA 6Gb/s connector(s)
1x 24-pin EATX Power connector(s)
1x 8-pin ATX 12V Power connector(s)
1x Front panel audio connector(s) (AAFP)
1x System panel(s)
1x Clear CMOS jumper(s)
1x COM port header

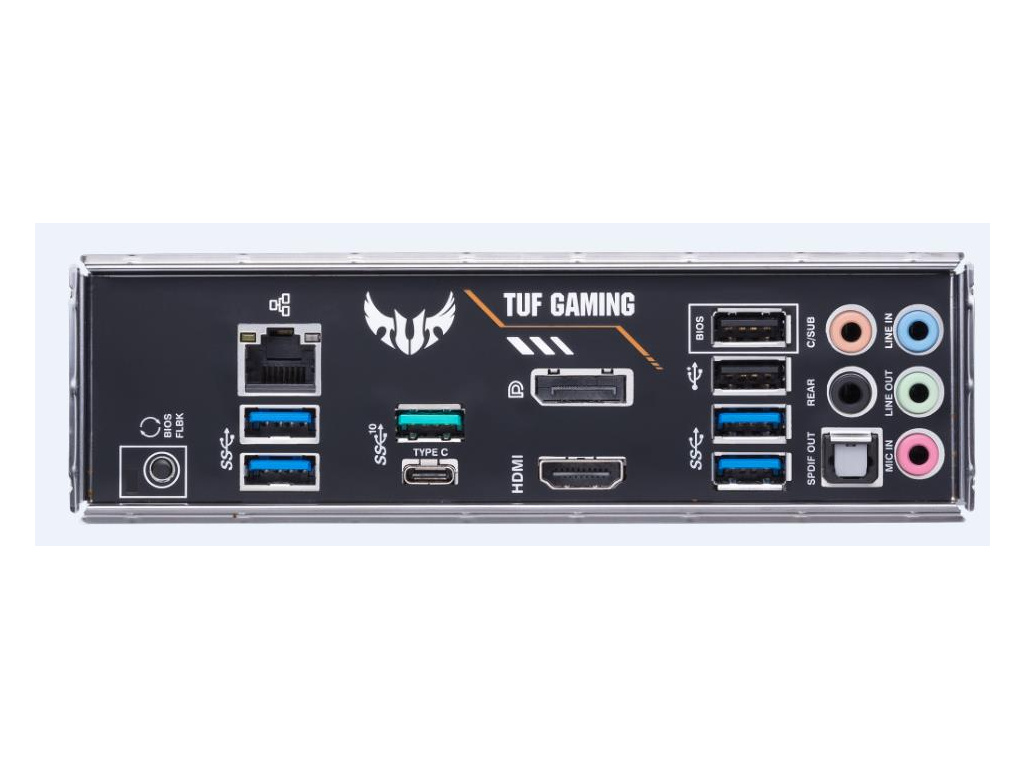

Externí porty:
1x DisplayPort
1x HDMI
1x LAN (RJ45) port(s)
2x USB 3.2 Gen 2 (1 x USB Type-C®+1 x Type-A)
4x USB 3.2 Gen 1 Type-A
2x USB 2.0
5x Audio jack(s)
1x BIOS FlashBack™ Button(s)

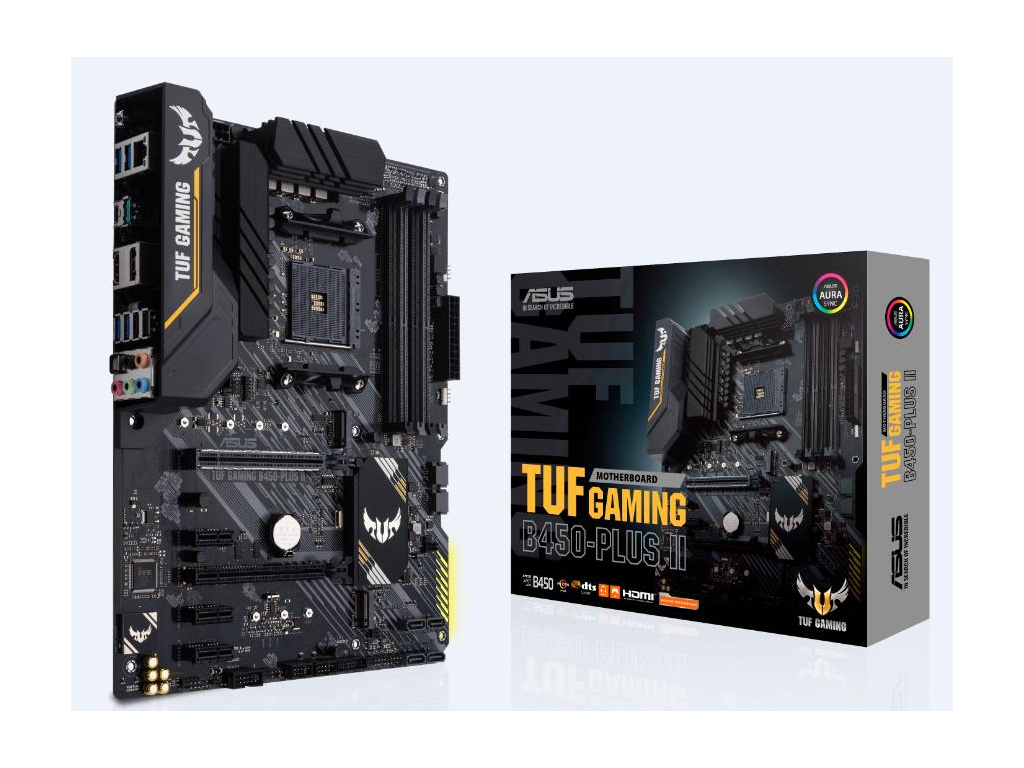

Obsah balení:
User's manual
I/O Shield
2x SATA 6Gb/s cable(s)
1x M.2 Screw Package
1x Supporting DVD
1x TUF GAMING Sticker
1x TUF Certification card(s)
BIOS: 256 Mb Flash ROM, UEFI AMI BIOS
Stránka výrobce: https://www.asus.com/Motherboards/TUF-GAMING-B450-PLUS-II https://www.asus.com/microsite/motherboard/ASUS-motherboards-Win11-ready/ https://www.asus.com/support/FAQ/1046215

EAN: 4718017957489
