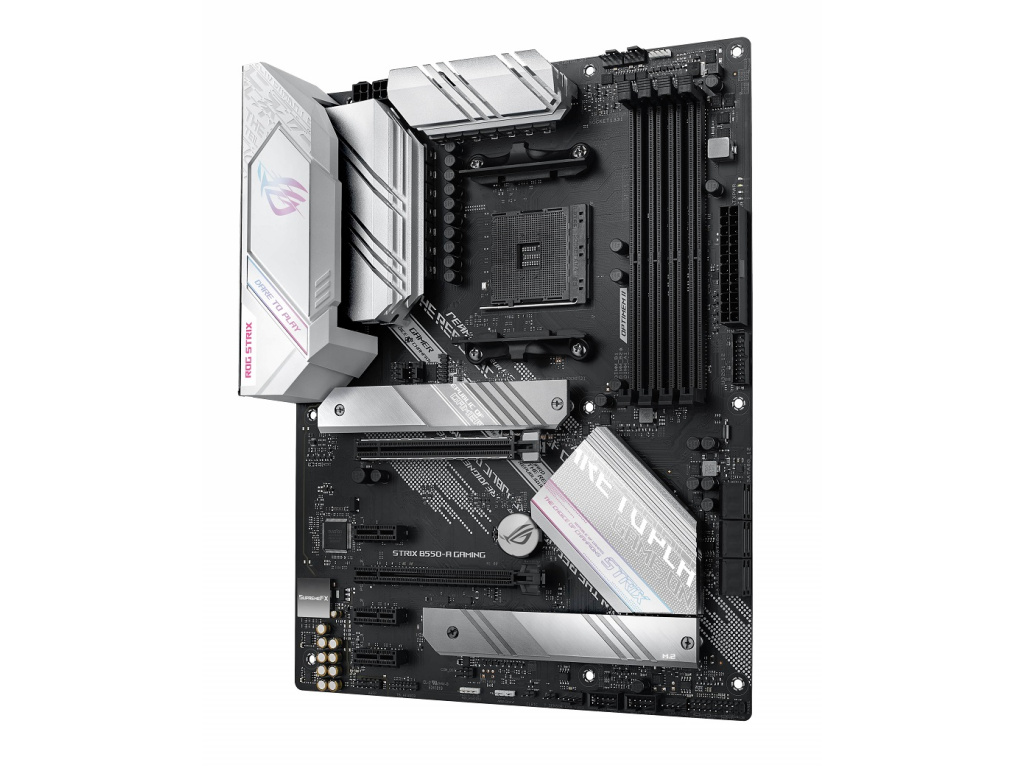

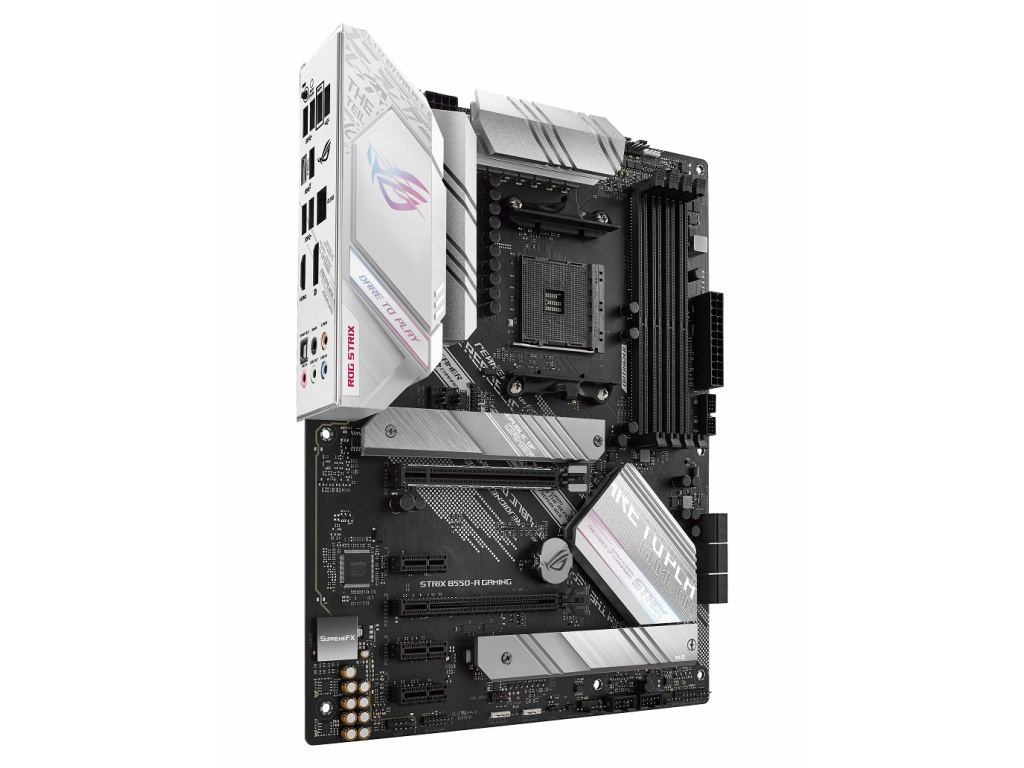

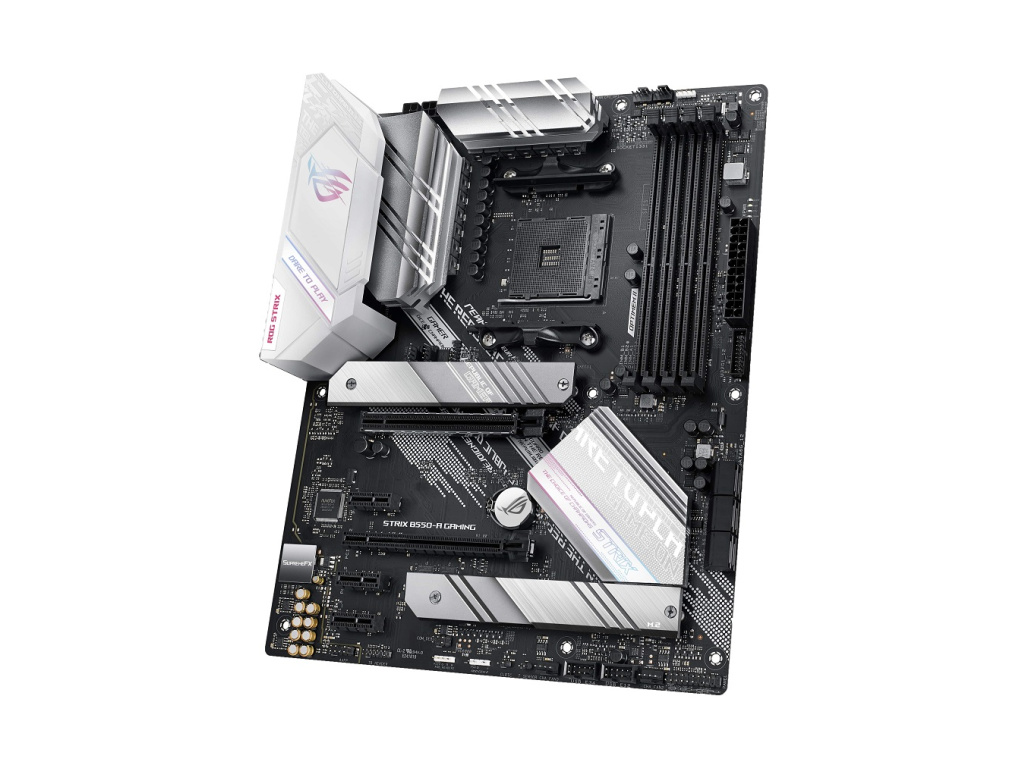

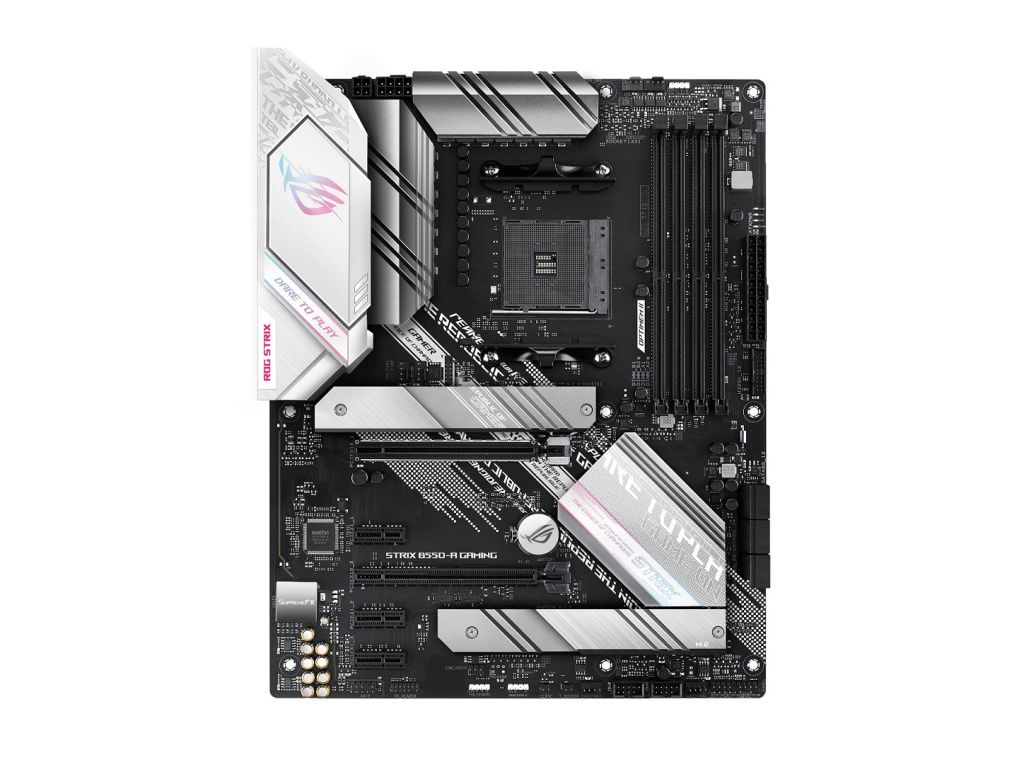

ASUS ROG STRIX B550-A GAMING/AM4/ATX, 90MB15J0-M0EAY0

Detailní popis produktu

Chipset: AMD B550
Rozměrový formát: ATX Form Factor (305 mm x 244 mm)
Podpora pro procesory: AMD AM4 Socket for AMD Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors
Patice procesoru: AM4
Pozice na paměti: 4x DDR4 DIMM
Podpora pro paměti:
5100(O.C)/4800(O.C.)/4600(O.C)/4400(O.C)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory
4600(O.C)/4400(O.C)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory
Max.velikost operační paměti: 128 GB
Podpora pro paměti typu: DDR4
Dual Channel Memory Architecture
ECC Memory (ECC mode) support varies by CPU.
Grafické výstupy:
Integrated Graphics Processor (na základě procesoru)
Multi GPU: AMD 2-Way CrossFireX Technology
Zvuková karta:
ROG SupremeFX8-Channel High Definition Audio CODEC S1220A
Síťová karta:
Intel® I225-V 2.5Gb Ethernet (ASUS LANGuard)
Rozšiřující sloty:
3x PCIe 3.0 x1
1x PCIe 4.0 x16 (x16 mode)
1x PCIe 3.0 x16 (x16 mode)
RAID řadič: 0, 1, 10
SATA:
6x SATA 6Gb/s
M.2:
1x M.2 Socket 1 with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode)
1x M.2 Socket 2 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
USB:

zadní USB porty ( celkem 8 )
2x USB 3.2 Gen 2 (1 x Type-A+1 x USB Type-C®)
4x USB 3.2 Gen 1
2x USB 2.0

přední USB porty ( celkem 6 )
2x USB 3.2 Gen 1 port(s)
4x USB 2.0 port(s)
Interní porty:
1x M.2 Socket 1 with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode)
1x M.2 Socket 2 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
1x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
1x Thunderbolt header(s)
1x CPU Fan connector(s)
1x CPU OPT Fan connector(s)
3x Chassis Fan connector(s)
1x AIO_PUMP connector
1x AAFP connector
2x Aura RGB Strip Header(s)
1x Addressable Gen 2 header(s)
2x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
6x SATA 6Gb/s connector(s)
1x 24-pin EATX Power connector(s)
1x 8-pin ATX 12V Power connector(s)
1x 4-pin ATX 12V Power connector(s)
1x System panel(s)
1x Thermal sensor connector(s)
1x Clear CMOS jumper(s)

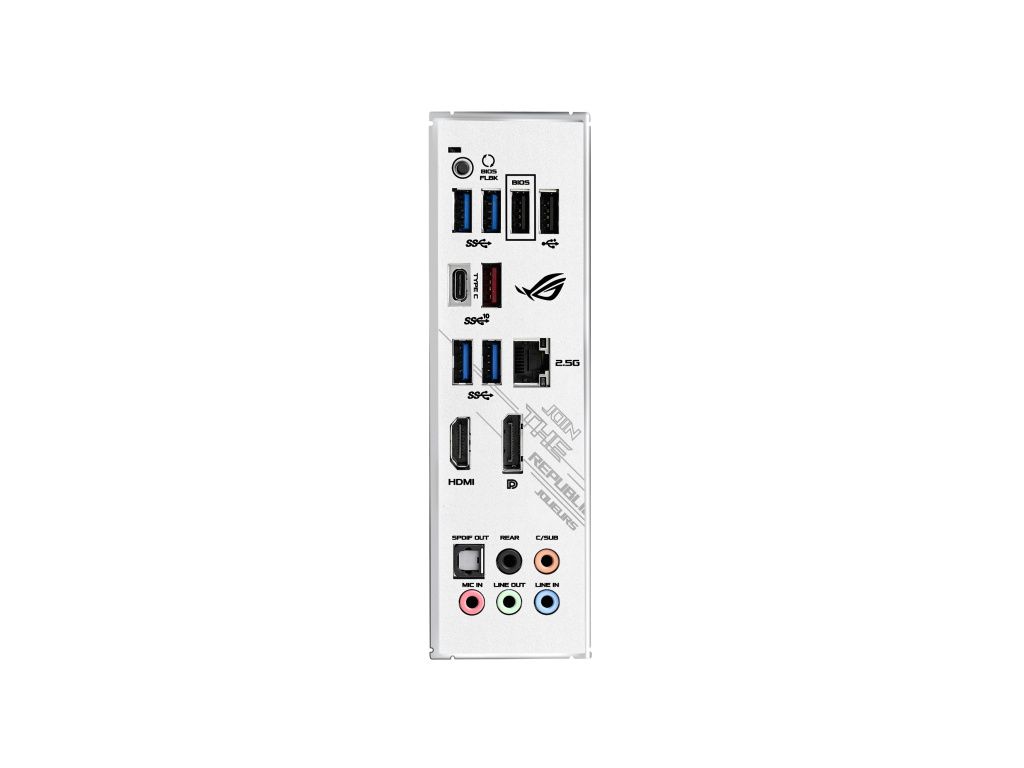

Externí porty:
1x BIOS FlashBack™ Button(s)
2x USB 3.2 Gen 2 (1 x Type-A+1 x USB Type-C®)
1x Intel® I225-V 2.5Gb Ethernet
4x USB 3.2 Gen 1
1x DisplayPort
1x HDMI
2x USB 2.0
1x Optical S/PDIF out
5x Gold-plated audio jacks
Obsah balení:
1 x M.2 SSD screw package(s)
1x M.2 Rubber Package(s)
User´s manual
4x SATA 6Gb/s cable(s)
1x Supporting DVD
1x ROG Strix stickers
1x Cable ties pack(s)
1x Extension cable for Addressable LED
1x ROG Thank you card
BIOS: 256 Mb Flash ROM, UEFI AMI BIOS
Stránka výrobce: https://rog.asus.com/motherboards/rog-strix/rog-strix-b550-a-gaming-model/ https://www.asus.com/microsite/motherboard/ASUS-motherboards-Win11-ready/ https://www.asus.com/support/FAQ/1046215

EAN: 4718017826594
