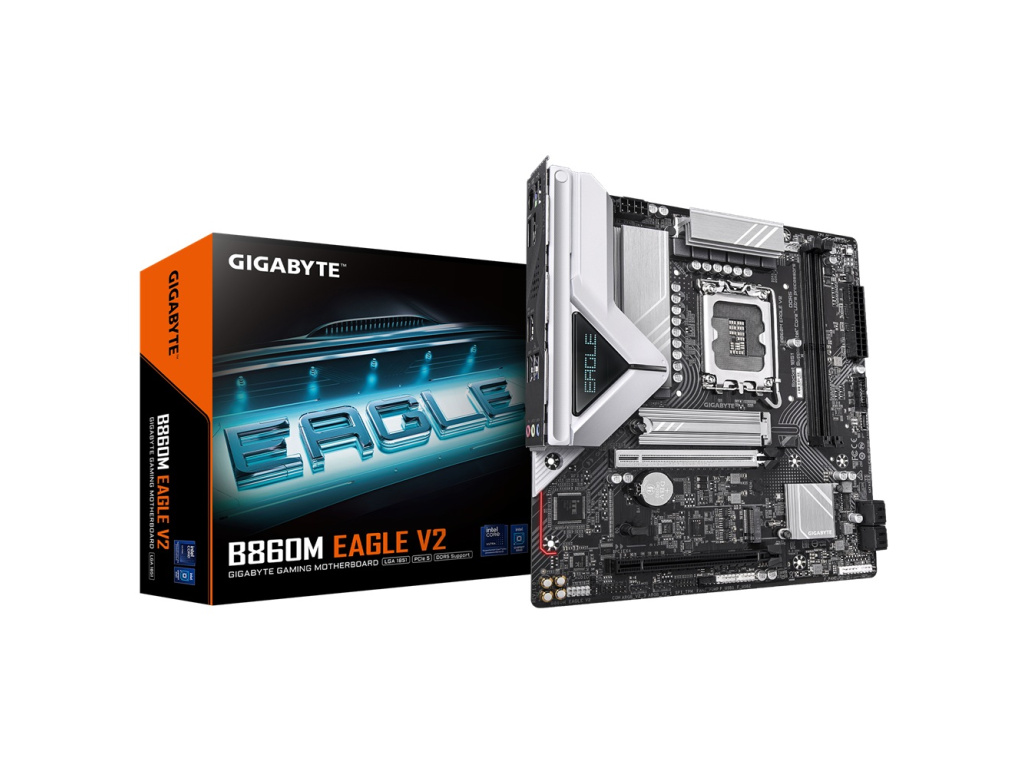

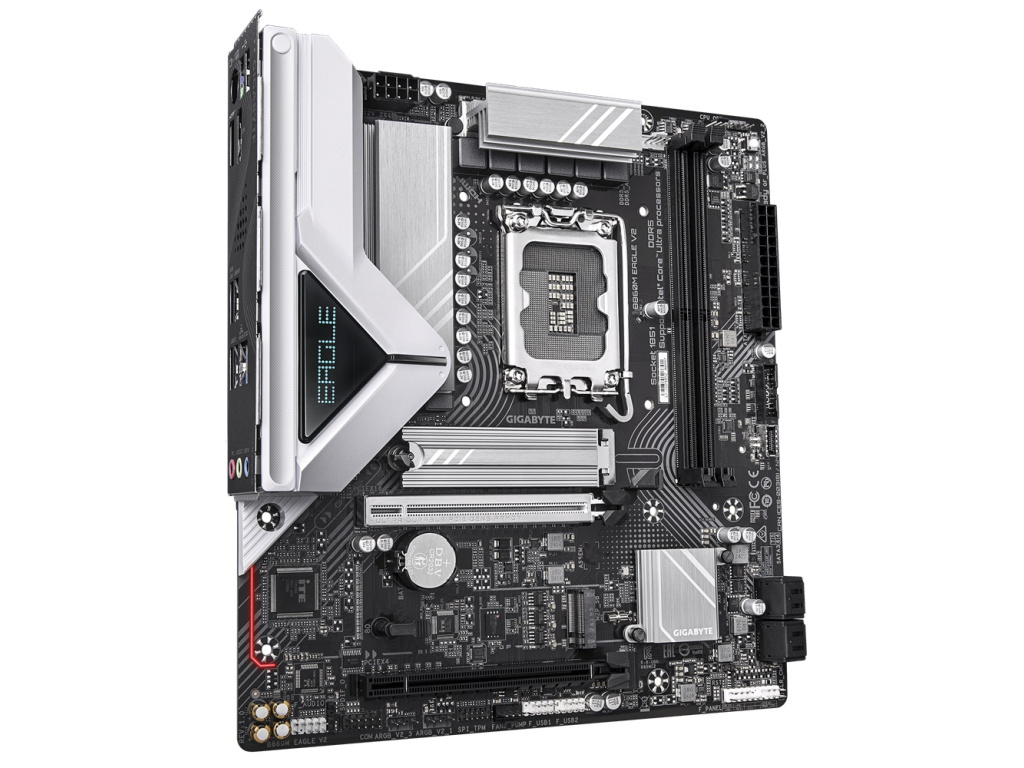

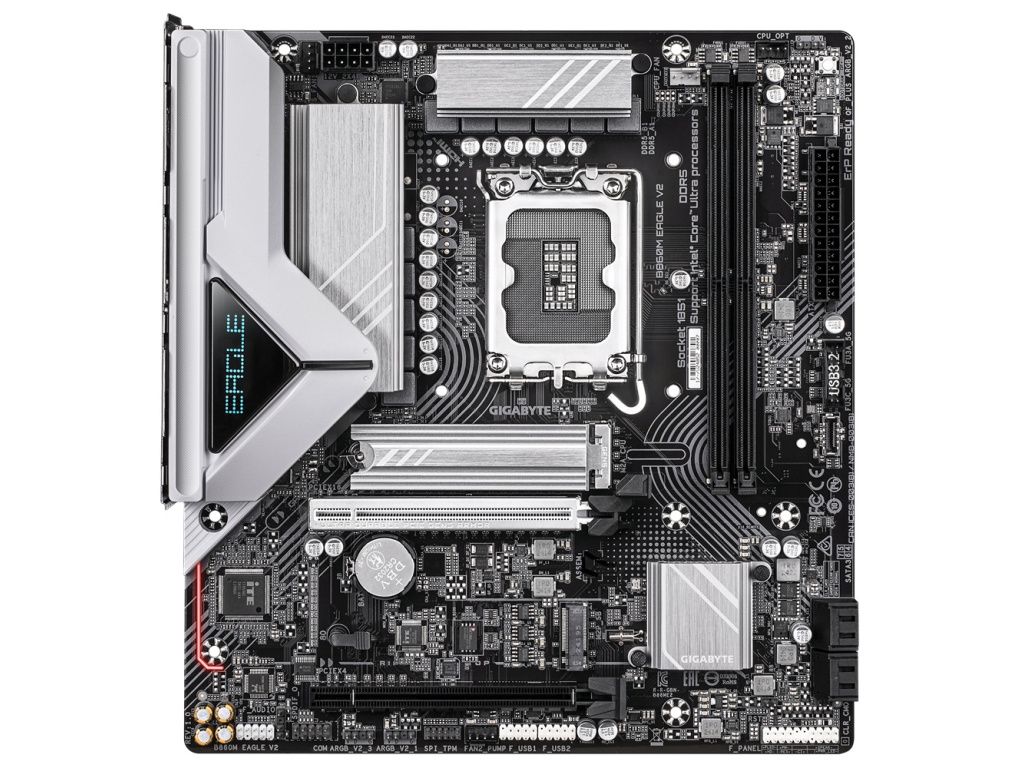

Gigabyte B860M EAGLE V2/LGA 1851/mATX, B860M EAGLE V2

Detailní popis produktu

GIGABYTE B860M EAGLE V2
Chipset: Intel B860 Express Chipset
Rozměrový formát: Micro ATX Form Factor, 24.4cm x 22.5cm
Podpora pro procesory: Intel ® Core™ Ultra
Patice procesoru: LGA1851
Paměť:
2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Grafické výstupy:
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz - Support for HDMI 2.1 version and HDCP 2.3
1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz - Support for DisplayPort 2.1 version
Zvuková karta:
Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF Out
Ethernet: Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Rozšiřující sloty:
1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) - The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot
1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
Úložný prostor:
1 x M.2 connector (Socket 3, M key, type 2280 PCIe 5.0 x4/x2 SSD support)(M2A_CPU)
1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)(M2P_SB)
4 x SATA 6Gb/s connectors
RAID řadič: RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
USB:
1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header
5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
3 x USB 2.0/1.1 ports on the back panel Chipset+USB 2.0 Hub:
4 x USB 2.0/1.1 ports available through the internal USB headers

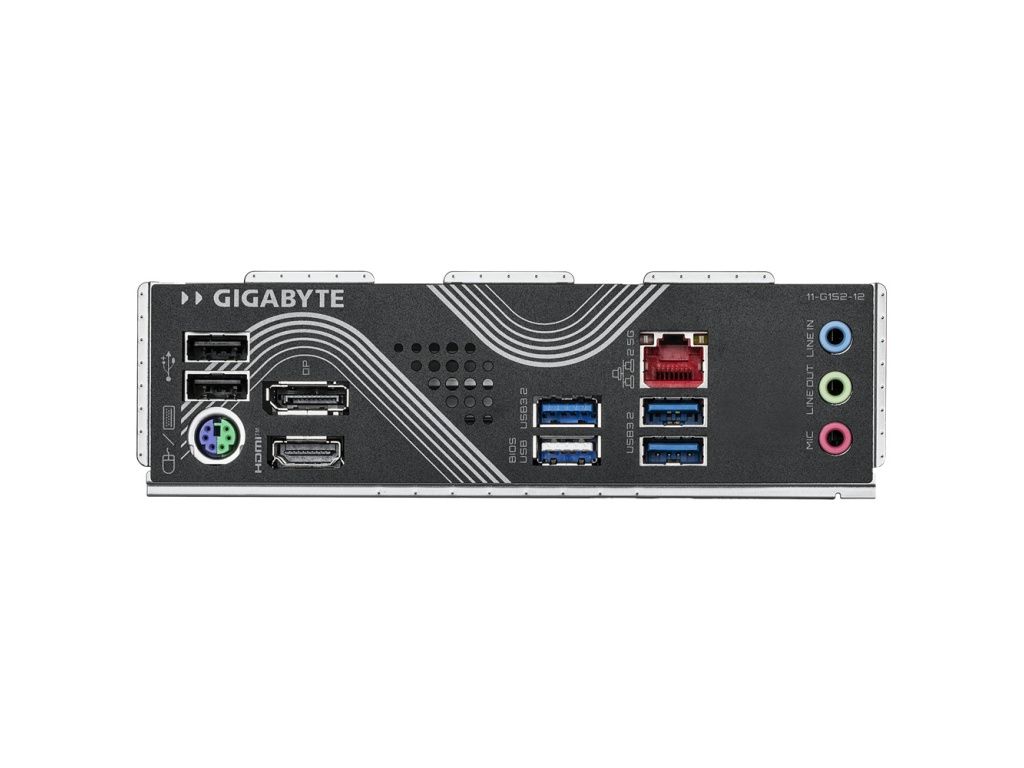

Porty na zadním panelu:
1 x PS/2 keyboard/mouse port
1 x HDMI por

1 x DisplayPort

3 x USB 3.2 Gen 1 ports
3 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks
Interní porty: Napájení
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector Související s ventilátorem a chlazením
1 x CPU fan header
1 x CPU fan/water cooling pump header
1 x system fan header
1 x system fan/water cooling pump header Související s úložištěm
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors USB
1 x USB Type-C® header, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers Ostatní
3 x addressable RGB Gen2 LED strip headers
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only)
1 x serial port header
1 x Q-Flash Plus button
1 x reset jumper
1 x Clear CMOS jumper
BIOS:
1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Odkaz na stránku výrobce: https://www.gigabyte.com/Motherboard/B860M-EAGLE-V2/sp#sp

EAN: 4719331869656
