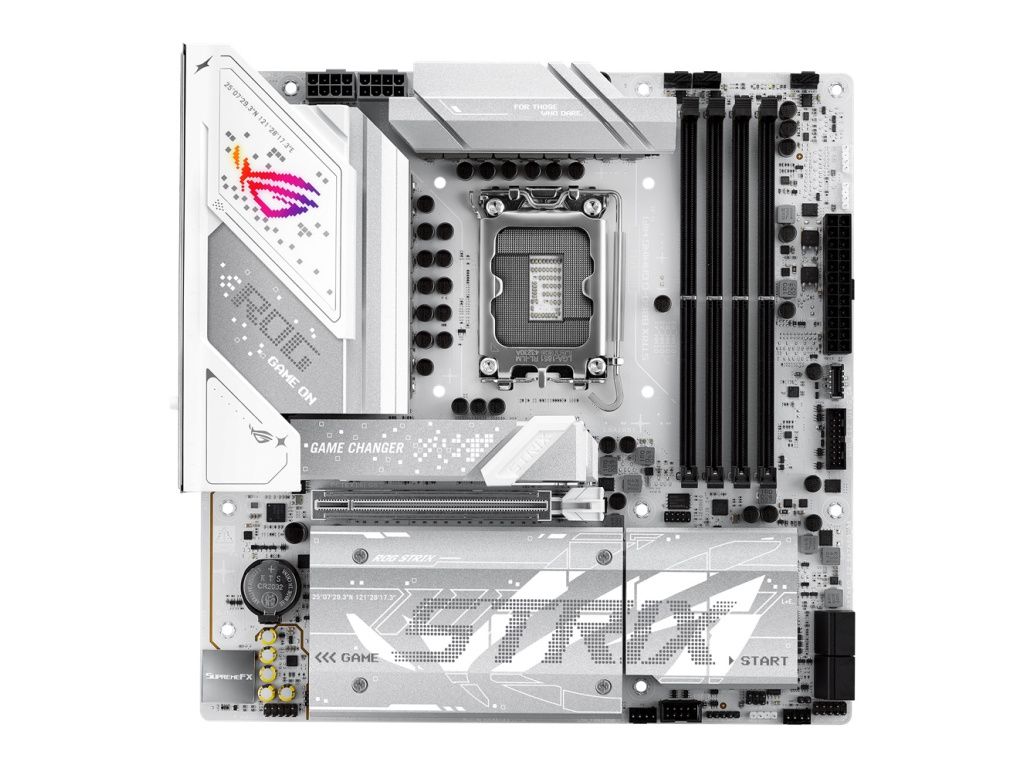

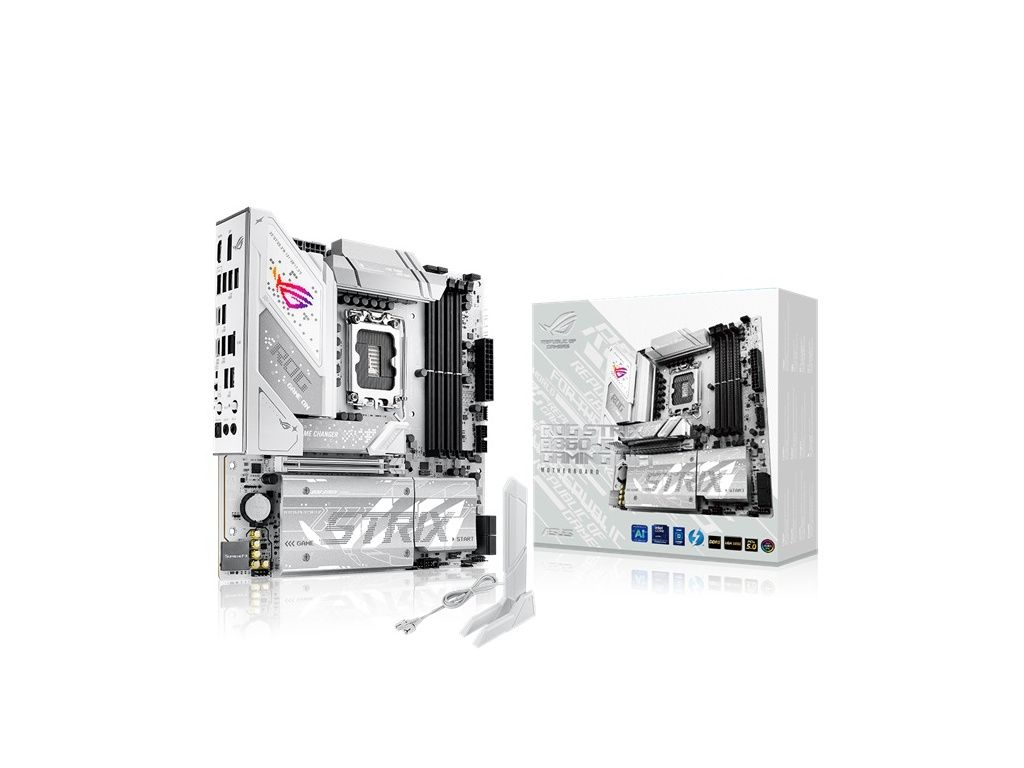

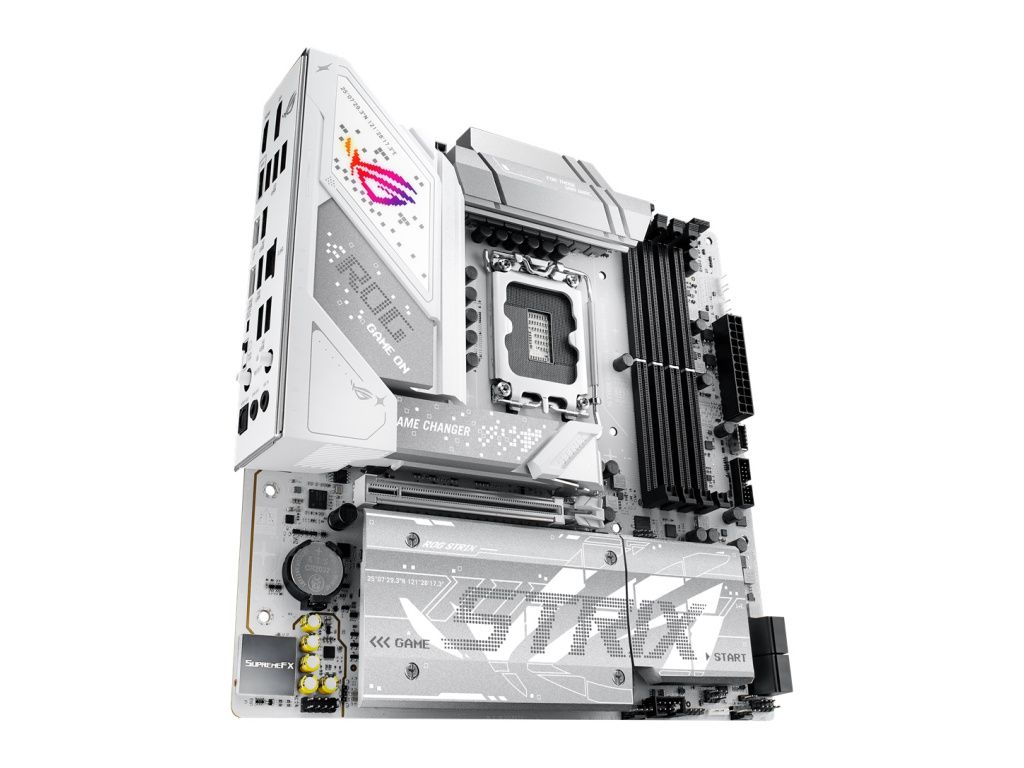

ASUS ROG STRIX B860-G GAMING WIFI, 90MB1JF0-M0EAY0

Detailní popis produktu

ASUS ROG STRIX B860-G GAMING WIFI
mATX Form Factor
CPU: Support Intel® Core™ Ultra Processors(Series 2) LGA1851, Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0
Chipset: Intel® B860 Chipset
Paměť: 4 x sloty DIMM, max. 192 GB, DDR5 - Podpora až 9066+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)
Dvoukanálová paměťová architektura
Podpora paměťového modulu Intel® Extreme Memory Profile (XMP)
ASUS Enhanced Memory Profile III(AEMPIII)
Grafické porty:
1 x DisplayPort
1 x HDMI™ port
1 x Intel® Thunderbolt™ 4 supports DisplayPort and Thunderbolt™ video outputs
Rozšiřující sloty: Intel® Core™ Ultra Processors(series 2)
1 x PCIe 5.0 x16 slot
Úložný prostor: Total Supports 4 x M.2 slots and 4 x SATA 6Gb/s ports Intel® Core™ Ultra Processors(series 2)
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) Intel® B860 Chipset
M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4)
M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4)
M.2_4 slot (Key M), type 2230/2280 (supports PCIe 4.0 x4)
4 x SATA 6Gb/s ports
Ethernet:
1 x Intel® 2.5Gb Ethernet
Připojení a Bluetooth:
Wi-Fi 7
2x2 Wi-Fi 7 (802.11be)
Supports 2.4/5/6GHz frequency band
Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.
Bluetooth® v5.4
USB: Zadní USB (Total 7 ports)
1 x Thunderbolt™ 4 port (1 x USB Type-C®)
1 x USB 20Gbps port(s) (1 x USB Type-C®)
1 x USB 10Gbps port(s) (1 x Type-A)
3 x USB 5Gbps port(s) (3 x Type-A)
4 x USB 2.0 port(s) (4 x Type-A) Přední USB (Total 7 ports)
1 x USB 10Gbps connector
1 x USB 5Gbps header(s) support(s) 2 additional USB 5Gbps ports
2 x USB 2.0 header(s) support(s) 3 additional USB 2.0 ports
Audio: Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC
SupremeFX Shielding Technology
Savitech SV3H712 AMP
Rear optical S/PDIF out port
Premium audio capacitors
Audio cover

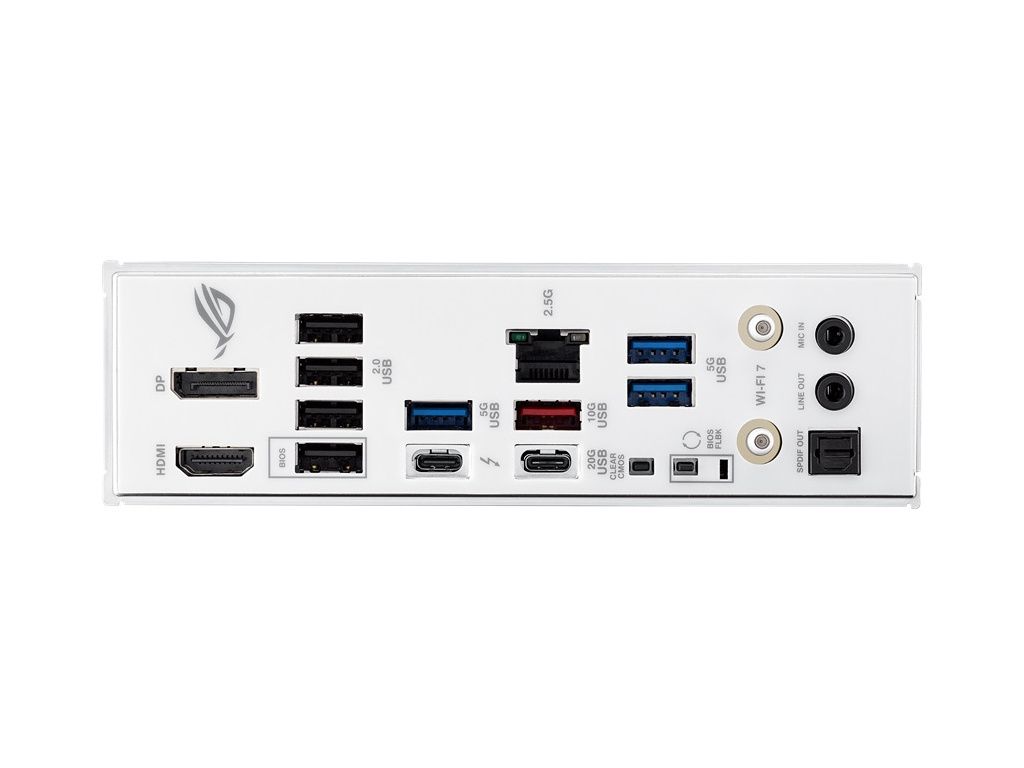

Vstupy/výstupy zadního panelu:
1 x Thunderbolt™ 4 USB Type-C® port(s)
1 x USB 20Gbps port(s) (1 x USB Type-C® with DP Alt mode)
1 x USB 10Gbps port(s) (1 x Type-A)
3 x USB 5Gbps port(s) (3 x Type-A)
4 x USB 2.0 port(s) (4 x Type-A)
1 x DisplayPort
1 x HDMI™ port
1 x Wi-Fi module
1 x Intel® 2.5Gb Ethernet port
2 x Audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack™ button
1 x Clear CMOS button
Interní vstupy/výstupy: Ventilátory a chlazení:
1 x 4-pin CPU Fan header(s)
1 x 4-pin CPU OPT Fan header(s)
1 x 4-pin AIO Pump header(s)
2 x 4-pin Chassis Fan header(s) Napájení:
1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connector Úložiště:
4 x M.2 slots (Key M)
1 x M.2 Vertical slot (Key M)
4 x SATA 6Gb/s ports USB:
1 x USB 10Gbps connector (support(s) USB Type-C® )
1 x USB 5Gbps header(s) support(s) 2 additional USB 5Gbps ports
2 x USB 2.0 header(s) support(s) 3 additional USB 2.0 ports Různé:
3 x Addressable Gen 2 header(s)
1 x Front Panel Audio header (F_AUDIO)
1 x 10-1 pin Front System Panel header
1 x Thermal Sensor header
Příslušenství: Kabely:
2 x SATA 6Gb/s cables Různé:
1 x ASUS WiFi Q-Antenna
1 x Cable ties package
1 x M.2 Q-Latch package(s)
1 x M.2 Q-Slide package
1 x ROG key chain
1 x ROG Strix sticker
3 x M.2 rubber package(s)
1 x M.2 backplate rubber package(s) Dokumenty:
1 x Quick start guide

EAN: 4711387806838
