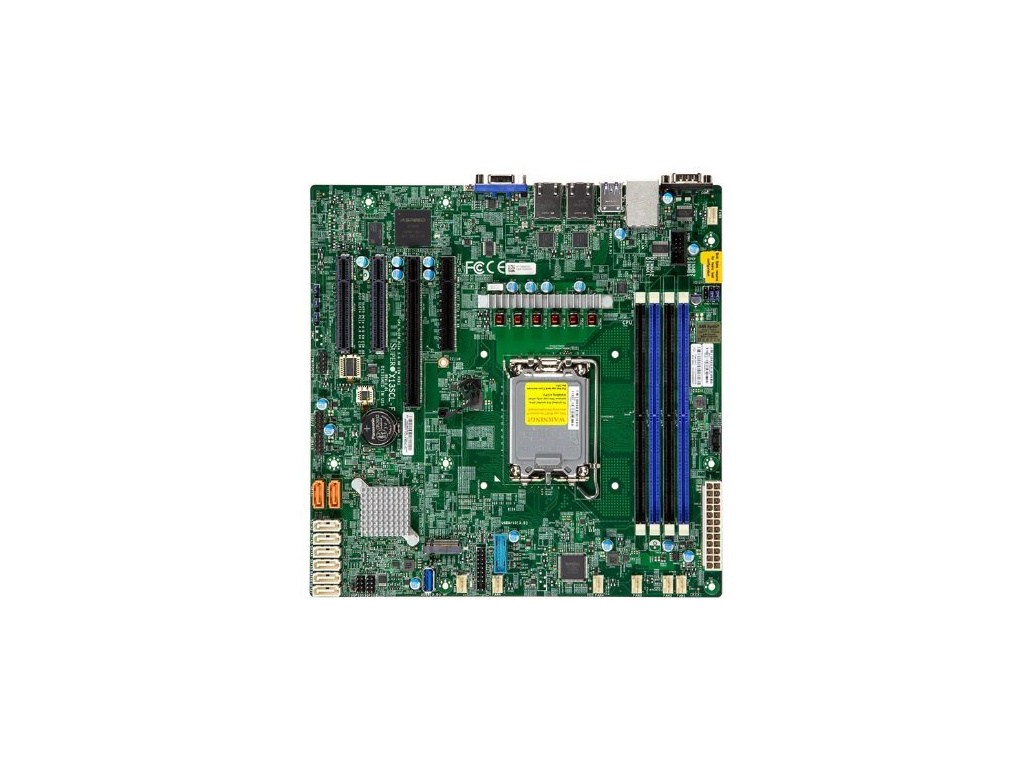

SUPERMICRO MB LGA1700 4xDDR5 8xSATA 1xM.PCIe2x1x1x4/8/16 1xLAN IPMI, MBD-X13SCL-F-B

Kód: ALIASBSRMBDX13SCLFB

Neohodnoceno

Značka: SUPERMICRO

SUPERMICRO MB LGA1700 4xDDR5 8xSATA 1xM.PCIe2x1x1x4/8/16 1xLAN IPMI, MBD-X13SCL-F-B

8 939 Kč 7 388 Kč bez DPH

Vyprodáno

Možnosti doručení
Položka byla vyprodána…

Detailní informace

Ověřený obchod

Více než 25 let na trhu s IT

30 000 produktů připraveno skladem

Široká síť výdejních míst

Více než 7 000 výdejních míst v ČR

Doprava zdarma

Při nákupu nad 10tis. Kč doprava zdarma

Detailní popis produktu

Product SKUs

MBD-X13SCL-F

Physical Stats
Form Factor	microATX
Dimension	9.6" x 9.6" (24.38cm x 24.38cm)

Processor
CPU	Intel® Xeon® E-2400/Pentium®* Processor Single Socket Socket V0 (LGA-1700) supported, CPU TDP supports Up to 95W TDP *Pentium® G7400 and G7400T
Core	Up to 8 cores

System Memory
Memory Capacity	4 DIMM slots Up to 128GB Unbuffered ECC UDIMM, DDR5-4400MHz
Memory Type	4400/4000/3600 MT/s Up to 128GB of memory with speeds of up to 4400MT/s (2DPC)
DIMM Sizes	8GB, 16GB, 32GB
Memory Voltage	1.1V
Error Detection	Corrects single-bit errors Detects double-bit errors (using ECC memory)

On-Board Devices
Chipset	Intel® C262
SATA	Intel® C262 controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10
IPMI	ASPEED AST2600 BMC
Graphics	1 Aspeed AST2600 BMC port(s)
Network Controllers	Dual LAN with 1GbE with Intel® I210

Input / Output
SATA	8 SATA3 (6Gbps) port(s)
LAN	1 RJ45 Dedicated IPMI LAN port
USB	6 USB 2.0 port(s) (4 via header; 2 rear) 5 USB 3.2 Gen1 port(s) (2 via header; 2 rear; 1 type A)
Video Output	1 VGA D-Sub Connector port(s)
Serial Port	2 COM Port(s) (1 header; 1 rear)
TPM	1 TPM Header

Expansion Slots
PCIe	2 PCIe 4.0 x4 (in x8 slot), 1 PCIe 5.0 x8, 1 PCIe 5.0 x8 (in x16 slot)
M.2	M.2 Interface: 1 PCIe 4.0 x4 Form Factor: 2280/22110 Key: M-Key

System BIOS
BIOS Type	AMI 32MB AMI UEFI
BIOS Features	ACPI 6.4 SMBIOS 3.5 UEFI 2.8 Plug and Play (PnP) PCI FW 3.3

Management
Software	Redfish API, Supermicro Server Manager (SSM), Supermicro Update Manager (SUM), SuperDoctor® 5, Super Diagnostics Offline , KVM with dedicated LAN , IPMI 2.0
Power Configurations	ACPI Power Management, Power-on mode control for AC power loss recovery, Power button override mechanism, Wake-On-LAN

Security
Hardware	Trusted Platform Module (TPM) 2.0

PC Health Monitoring
Voltage	VBAT, System level control, Supports system management utility, Monitors CPU voltages, Chipset Voltage, Chassis intrusion header, +5V standby, +5V, +3.3V, +12V, Memory Voltages, 7-fan status, +3.3V standby
LED	UID/Remote UID CPU / System Overheat LED
Temperature	Monitoring for CPU and chassis environment CPU thermal trip support PECI
FAN	7x 4-pin fan headers (up to 7 fans) Fan speed control Overheat LED indication 7 fans with tachometer status monitoring
Other Features	WOL, UID, M.2 NGFF connector, Control of power-on for recovery from AC power loss, Chassis intrusion header, ACPI power management

Operating Environment
Operating Temperature Range	0°C - 50°C (32°F - 122°F)
Non-Operating Temperature Range	-40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range	8% - 90% (non-condensing)
Non Operating Relative Humidity Range	5% - 95% (non-condensing)

EAN: 672042899166

Doplňkové parametry

Kategorie:	Socket 1700
Záruka:	3 roky
Hmotnost:	1.18 kg
EAN:	672042899166
EAN:	672042899166
Kód výrobce:	MBD-X13SCL-F-B
