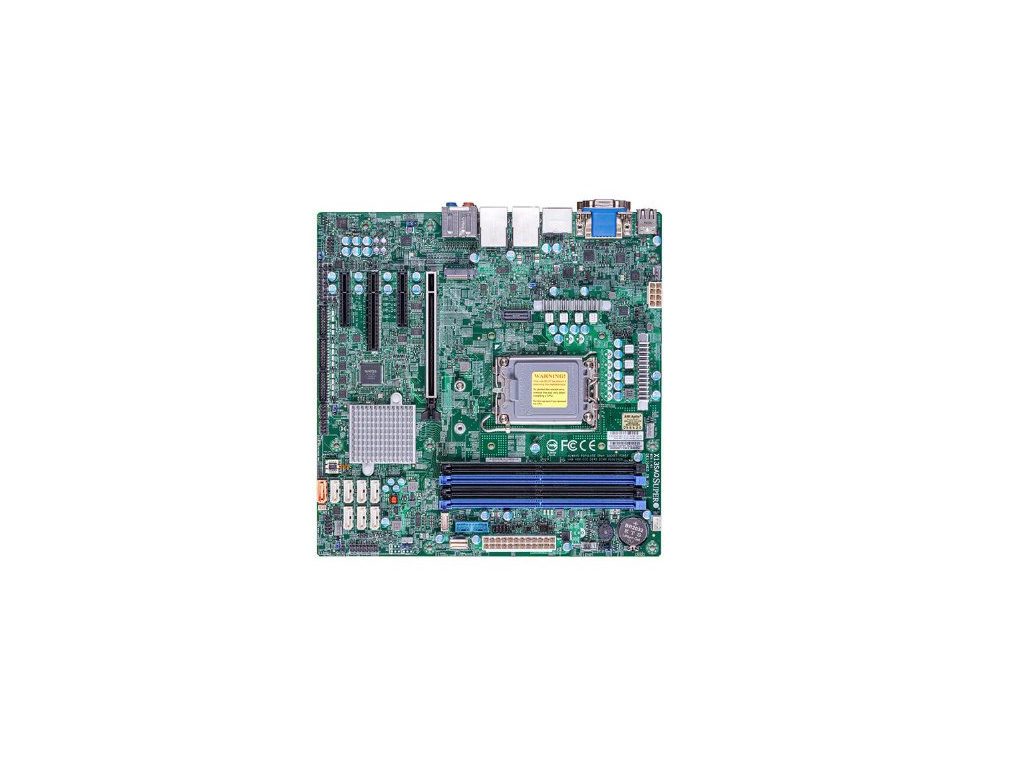

SUPERMICRO MB LGA1700 (core 12.g), W680,4xDDR5,8xSATA3,1xM.2,1x16,1x42x3 PCIe PCI,HDMI,DP,DVI,Audio,2x LAN, MBD-X13SAQ-O

Kód: ALIASBSRMBDX13SAQO
10 169 Kč 8 404 Kč bez DPH
Skladem online (6 ks)
Můžeme doručit do:
8.12.2025
Možnosti doručení

Detailní informace

Detailní popis produktu




















Product SKUs
MBD-X13SAQ
















Physical Stats
Form Factor

  • Micro-ATX


Dimension

  • 9.6" x 9.6" (24.38cm x 24.38cm)


















Processor
CPU

  • 14th/13th/ 12th Generation Intel Core i9/Core i7/Core i5/Core i3/Pentium/Celeron Processor

  • Single Socket V0 supported


Core

  • Up to 24 cores


























System Memory
Memory Capacity

  • 4 DIMM slots

  • Up to 128GB Unbuffered non-ECC UDIMM, DDR5-4400MT/s



  • *Supports up to 128GB of DDR5 UDIMM with speeds of up to 4400MT/s with one DIMM, or 4000MT/s with two DIMM single rank, or 3600MT/s with two DIMM dual rank in four memory slots


Memory Type

  • 4400/4000/3600 MT/s


DIMM Sizes

  • 4GB, 8GB, 16GB, 32GB


Memory Voltage

  • 1.1V


























On-Board Devices
Chipset

  • Intel Q670E


SATA

  • Intel Q670E controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10


Audio

  • ALC 888S HD Audio


Network Controllers

  • Dual LAN with Intel® Ethernet i225LM






























Input / Output
SATA

  • 8 SATA3 (6Gbps) port(s)


USB

  • 4 USB 2 port(s) (2 via header; 2 rear type A)

  • 4 USB 3.2 Gen2 port(s) (2 via header; 2 rear type A)

  • 2 USB 3.2 Gen1 port(s) (2 via header)

  • 2 USB 3.2 Gen2x2 port(s) (2 rear type C)


Video Output

  • 1 VGA port(s), 1 DVI - D port(s), 1 DP 1.4a port(s), 1 HDMI 2.0b port(s)


Serial Port

  • 6 COM Port(s) (2 header; 4 header)


TPM

  • TPM TPM 2.0 onboard




























Expansion Slots
PCIe

  • 1 PCIe 5.0 x16,

  • 1 PCIe 4.0 x4 (in x8 slot),

  • 1 PCIe 3.0 x4,

  • 1 PCIe 3.0 x2 (in x4 slot),

  • 1 PCIe 4.0 x4 SlimSAS


















System BIOS
BIOS Type

  • AMI UEFI


BIOS Features

  • ACPI 6.1

  • SMBIOS 3.0 or later

  • PCI FW 3.0

  • UEFI 2.7

  • RTC (Real Time Clock) Wakeup






















Management
Software

  • Supermicro Server Manager (SSM), Supermicro Update Manager (SUM), Supermicro SuperDoctor® 5 (SD5), Super Diagnostics Offline (SDO), SuperServer Automation Assistant (SAA) New!


System Management Software

  • Wake-on-LAN, Watchdog


Power Configurations

  • ACPI Power Management, ATX Power connector






























PC Health Monitoring
Voltage

  • VBAT, 4 fans with tachometer monitoring, 1.05 (PCH), +5V standby, +5V, +3.3V, +12V, +1.8V, +1.5V, +1.35V


LED

  • Power LED


Temperature

  • Monitoring for CPU and chassis environment

  • CPU thermal trip support


Other Features

  • RoHS

  • M.2 NGFF connector

  • Chassis intrusion detection

  • ATX Power connector

  • ACPI power management


FAN

  • 4x 4-pin fan headers (up to 4 fans)


























Operating Environment
Operating Temperature Range

  • 0°C - 60°C (32°F - 140°F)


Non-Operating Temperature Range

  • -40°C - 85°C (-40°F - 185°F)


Operating Relative Humidity Range

  • 10% - 85% (non-condensing)


Non Operating Relative Humidity Range

  • 5% - 95% (non-condensing)








EAN: 672042497560

Doplňkové parametry

Kategorie: Socket 1700
Záruka: 3 roky
Hmotnost: 1.1 kg
EAN: 672042497560
EAN: 672042497560
Kód výrobce: MBD-X13SAQ-O
