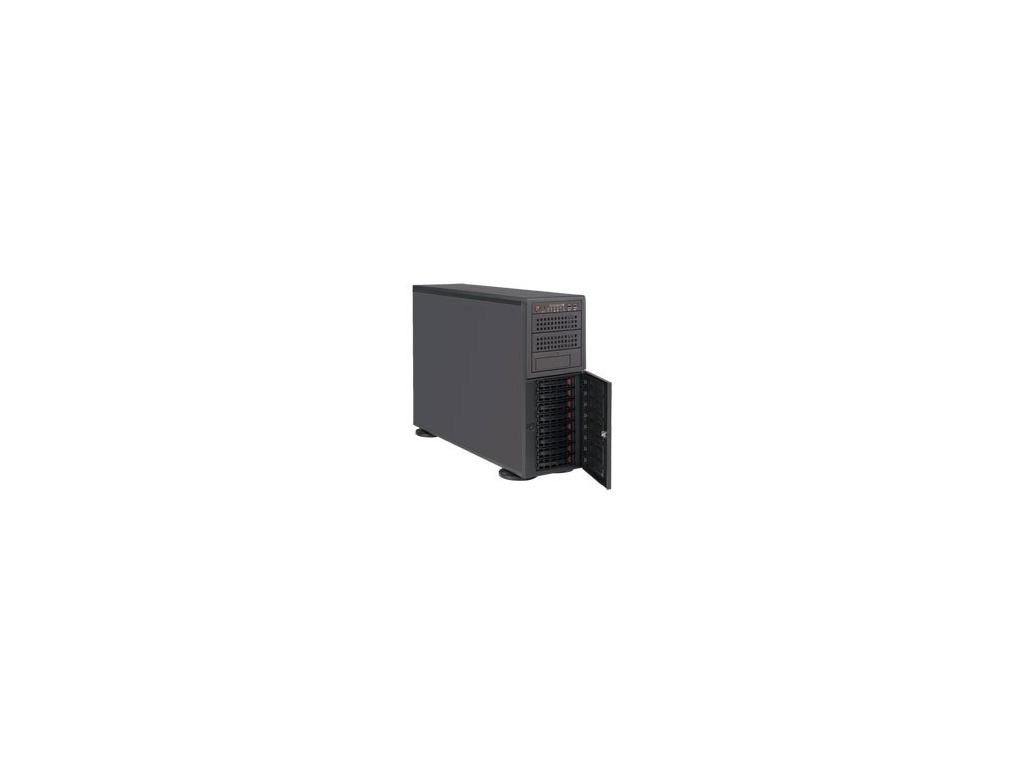

SUPERMICRO Tower/4U WS 2x LGA4189, iC621A, 16x DDR4, 8x HS (3,5"), 2x1200W (titanium), 2x10GbE, IPMI, SYS-740A-T

Detailní popis produktu

Key Applications- Rendering

- CAD

- Multimedia/Digital Content creation

- Engineering/scientific research



Key Features

1. 3rd Gen Intel® Xeon® Scalable processor support


2. Intel® C621A Chipset


3. 5 PCI-E 4.0 x16, 1 PCI-E 4.0 x8, 2 NVMe M.2 slots


4. 3x 5.25" peripheral drive bays

   8x 3.5/2.5" hot-swap SATA (default) drive bays (SAS support requires optional add-on card )

   up to 4x NVMe SSD support with optional cables


5. Dual 1200W Titanium level power supplies for high powered configurations


6. 1 VGA, 6 USB 3.2 Gen1 (4 Rear, 2 Front),  1 USB 3.2 Gen2 (Rear), 7.1 HD Audio

   Supports up to two double width active GPUs

Product SKUs   SYS-740A-T SuperServer SYS-740A-T (black)   Motherboard   Super X12DAI-N6   Processor   CPU Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors Support CPU TDP 270W * Cores Up to 40C/80T; Up to 60MB Cache Note *Certain CPU SKUs are conditionally supported, please contact Supermicro Technical Support for additional information about specialized system optimization   System Memory   Memory Memory Capacity: 16 DIMM slots Up to 4TB: 16x 256 GB DRAM Up to 6TB: 8x 256 GB DRAM and 8x 512 GB PMem Memory Type: 3200MHz ECC DDR4 RDIMM, LRDIMM Intel® Optane™ persistent memory 200 series Note Memory DIMM capacities larger than 64GB, LRDIMMs, and PMem are supported under certain conditions, please contact Supermicro Technical Support for additional information about specialized system optimization Memory Voltage 1.2 V Error Detection ECC   On-Board Devices   SATA SATA3 (6Gbps); RAID 0/1/5/10 support Chipset Intel® C621A Network Connectivity 2x 1GbE port(s) IPMI Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support   Input / Output   SATA 2 SuperDOM port(s) LAN 2 RJ45 1GbE (IPMI Shared on LAN port1) USB 6 USB 3.2 Gen1 port(s) (2 Front_USB; 4 Rear_USB) 1 USB 3.2 Gen2 port(s) (1 Rear_USB) Video 1 VGA port(s)   System BIOS   BIOS Type AMI 32MB SPI FLASH ROM   Management   Software Redfish API IPMI 2.0 SSM SPM KVM with dedicated LAN SUM NMI Watch Dog SuperDoctor® 5 Power Configurations ACPI/APM Power Management   PC Health Monitoring   CPU Monitors for CPU Cores, Chipset Voltages, Memory. FAN Fans with tachometer monitoring Pulse Width Modulated (PWM) fan connectors Status monitor for speed control Temperature Monitoring for CPU and chassis environment Thermal Control for fan connectors

Chassis   Form Factor 4U Tower Rackmount Model CSE-745BTS-R1K23BP3   Dimensions and Weight   Height 17.8" (452mm) Width 7" (178mm) Depth 25.5" (647mm) Package 24.6" (H) x 14" (W) x 31.3" (D)   Weight Net Weight: 59 lbs (26.76 kg) Gross Weight: 62 lbs (28.12 kg) Available Color black   Front Panel   Buttons Power On/Off button Reset button LEDs HDD activity LED Network activity LEDs Power status LED   Expansion Slots   PCI-Express (PCI-E) Slot 1: PCI-E 4.0 x16 FHFL Slot 2: PCI-E 4.0 x16 FHFL Slot 3: PCI-E 4.0 x16 FHFL Slot 4: PCI-E 4.0 x16 FHFL Slot 5: PCI-E 4.0 x16 FHFL Slot 6: PCI-E 4.0 x8 FHHL   Drive Bays / Storage   Hot-swap 8x 3.5" hot-swap SATA (SAS/NVMe optional) drive bays (4x 2.5" NVMe hybrid) M.2 2 M.2 NVMe Peripheral Bays 3x 5.25" drive bays (optional)     System Cooling   Fans 5x 8cm heavy duty fans with optimal fan speed control   Power Supply   1U, Redundancy, Titanium, Input: 100-127Vac, 200-240Vac Dimension (W x H x L) 76 x 40 x 336 mm AC Input 1000W: 100-127Vac / 12A-15A / 50-60Hz 1200W: 200-240Vac / 7A-8.5A / 50-60Hz DC Output 200-240Vdc CCC only/ 7A-8.5A / 50-60Hz Output Type Gold Finger (19 pair connector) Certification   Titanium Level     [ Test Report ]   Operating Environment   Environmental Spec. Operating Temperature:    10°C ~ 35°C (50°F ~ 95°F) Non-operating Temperature:    -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity:    8% to 90% (non-condensing) Non-operating Relative Humidity:    5% to 95% (non-condensing)

Parts List - (Items Included)
	Part Number	Qty	Description
Motherboard / Chassis	MBD-X12DAI-N6     CSE-745BTS-R1K23BP3	1     1	Super X12DAI-N6 Motherboard     4U Tower Chassis
Backplane	BPN-SAS3-743A-N4	1	8-port 4U/Tower (SC743/745) 3.5-inch SAS3/SAS2/SATA3 12Gbps backplane, 4 of 8 ports support NVMe devices
Cable 1	CBL-SAST-0631	2	Cross-over Mini SAS HD to 4 SATA w/SB, S. 55cm. 30AWG
Parts	MCP-260-00115-0N	1	Standard I/O Shield for X11DAi with EMI Gasket
Manual	MNL-2378-QRG	1	740A-T Quick Reference Guide
Heatsink / Retention	SNK-P0080AP4	2	4U Active CPU Heat Sink for X12 Generation DP Workstations and 4U Servers

Optional Parts List
	Part Number	Qty	Description
DVD-RW Drive	DVM-LITE-DVDRW24-HBT1	-	BLACK LITE-ON 5.25" HH 24X DVD-RW SATA DRIVE (adding a DVD drive will limit the total number of SATA drives to 7)
Gen3 8-ports SAS Raid controller kit	1x AOC-S3108L-H8IR-16DD and 2x CBL-SAST-0593	-	Enables the 8x hot-swap drive bays to support SAS drives
Gen4 8-ports SAS Raid controller kit	1x AOC-S3908L-H8IR-16DD-P and 1x CBL-SAST-1264-100	-	Enables the 8x hot-swap drive bays to support SAS drives
Management Software	SFT-DCMS-SINGLE •	-	Supermicro System Managment Software Suite - 1 per node
Middle Fan	FAN-0182L4 •	-	9.4K RPM, Hot-swappable Middle Cooling Fan for supporting GPU, PMem or 128GB and larger memory sizes
NVMe Cable	CBL-SAST-0816 •	-	SLIMLINE x8 to 2x Oculink x4 (1 cable supports 2x 2.5" NVMe drives in hotswap drive bays, connects to JNVMe1 on motherboard)
CBL-SAST-1154-85	-	SLIMLINE x8 to 2x Oculink x4 (1 cable supports 2x 2.5" NVMe drives in hotswap drive bays, connects  to JNVMe2 on motherboard)
OOB License	SFT-OOB-LIC •	-	License for out of band management
Rail Kit for rackmount	CSE-PT26L-B •	-	4U Chassis Rail Kit (w/ 2pcs Black Chassis Ears)
Rear Fan	FAN-0180L4 •	-	9.4K RPM, Hot-swappable Rear Exhaust Fan for supporting PMem
SATA Cable	CBL-SAST-0624 •	-	70cm SATA Cable (1pc required for DVD Drive)
SATA Power adapter	CBL-0082L •	-	Y SPLIT SATA POWER ADAPTER (1pc required for DVD Drive)
SuperCap kit for AOC-S3108L-H8IR-16DD	1x BTR-TFM8G-LSICVM02 and 1x BKT-BBU-BRACKET-05	-	SuperCap and mounting bracket for SAS RAID controller AOC-S3108L-H8IR-16DD
SuperCap kit for AOC-S3908L-H8IR-16DD-P	1x BTR-CVPM05 and 1x BKT-BBU-BRACKET-05	-	SuperCap and mounting bracket for SAS RAID controller  AOC-S3908L-H8IR-16DD
TPM security module	AOM-TPM-9670V	-	SPI capable TPM 2.0 with Infineon 9670 controller with vertical form factor
