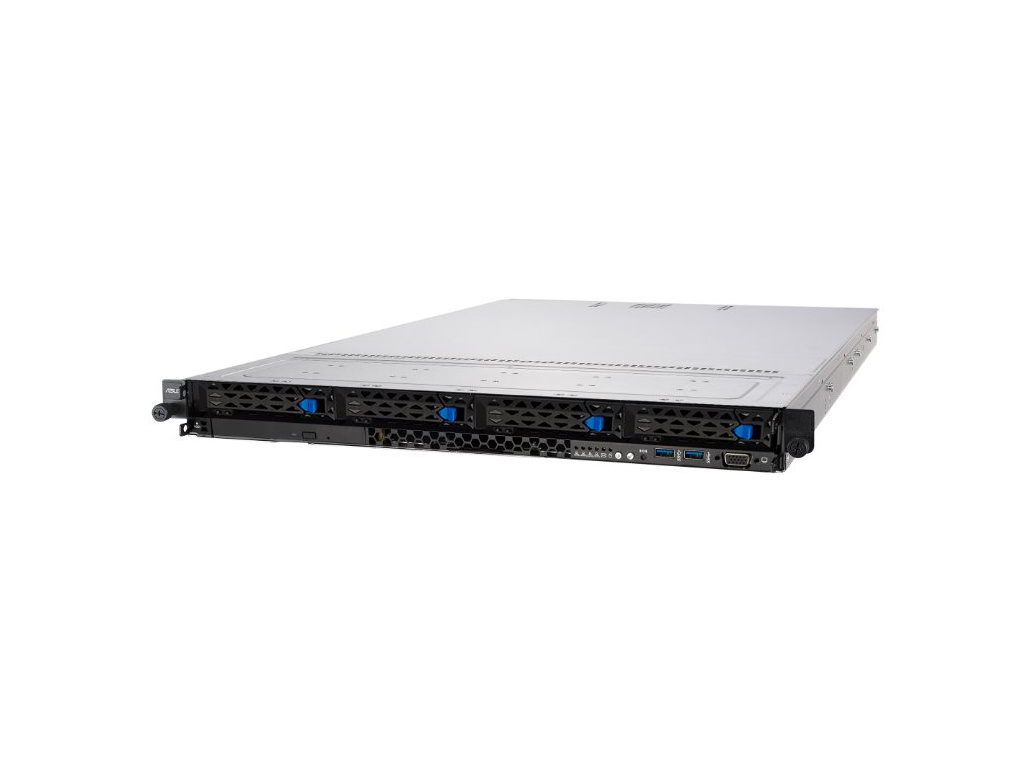

ASUS RS700A 1U server 2x SP3, 32x DDR4 ECC R, 4x SATA/U.2, 1600W (plat), 2x 10Gb LAN, IPMI, 90SF01E2-M00800

Kód: ALIASBRS700AE11RS4U10G4NVME

Neohodnoceno

Značka: Asus

ASUS RS700A 1U server 2x SP3, 32x DDR4 ECC R, 4x SATA/U.2, 1600W (plat), 2x 10Gb LAN, IPMI, 90SF01E2-M00800

71 589 Kč 59 164 Kč bez DPH

(1 ks)

Můžeme doručit do: 14.5.2024 Možnosti doručení

Detailní informace

Ověřený obchod

Více než 23 let na trhu s IT

Sklad

20 000 produktů připraveno skladem

Široká síť výdejních míst

Více než 7 000 výdejních míst v ČR

Doprava zdarma

Při nákupu nad 10tis. Kč doprava zdarma

Detailní popis produktu

Processor / System Bus

2 x Socket SP3 (LGA 4094)

AMD EPYC™ 7003 Series

AMD EPYC™ 7002 Series

Max TDP : 280W

Generation

E11

Memory

Total Slots :

32 (8-channel per CPU, 16 DIMM per CPU)

Capacity :

Maximum up to 4096GB RDIMM

Memory Type :

Dual Channel DDR4 3200/2933 RDIMM

Dual Channel 3200/2933 LRDIMM

Dual Channel 3200/2933 LR-DIMM 3DS non ECC

Memory Size :

64GB, 32GB, 16GB RDIMM

128GB, 64GB LRDIMM

256GB, 128GB, 64GB LR-DIMM 3DS

* Refer to support page for more information

Graphic Card

Please refer to GPU support list

Expansion Slots

Up to 3 x Expansion slots + 1 x Internal PIKE slot

1 x PCIe Gen4 x16, FHFL (CPU1)

1 x PCIe Gen4 x16, FHFL or OCP3.0 (CPU2)

1 x PCIe Gen4 x8 or x16, LP (if PCIe M.2 in use, it will operate at x8 link) (CPU2)

*Installing GPU cards will occupied expansion slots.

Storage

Storage Controller :

4 x SATA3 6Gb/s ports (SATA 6Gb/s & PCIe® Gen4 x4 link)

2 x M.2 connector(2242/2260/2280/22110) both SATA & PCIe mode

SAS Controller :

ASUS PIKE II 3008-8i 8-port SAS 12G RAID card(Optional)

ASUS PIKE II 3108-8i 8-port SAS 12G HW RAID card(Optional)

Broadcom MegaRAID 9560-16i (Optional)

Drive Bays

4 x 3.5" hot-swap drive bays (4 x NVMe/SATA/SAS*)

2 x M.2 (support SATA/PCIe M.2) (up to 22110) (CPU2)

*must with PIKE/RAID card

System Fan

Auxiliary Storage FDD/CD/DVD

1 x Slim type Optical Drive Bay (optional)

Networking

1 x Quad Port Intel I350-AM4 1G LAN Controller + 1 x Mgmt LAN

or

Option 2

1 x Dual Port Intel X710-AT2 Gigabit 10G LAN Controller + 1 x Mgmt LAN

or

None

Graphic

Aspeed AST2600 with 64MB VRAM

Front I/O Ports

2 x USB 3.2 Gen1 ports

1 x VGA port

Rear I/O Ports

2 x USB 3.2 Gen1 ports

1 x VGA port

1 x RJ-45 Mgmt LAN port

1 x OCP3.0 port (Please remember to insert OCP3.0 Board)

Switch/LED

Front Switch/LED:

1 x Power switch (w/LED)

1 x Reset Switch

1 x Location Switch (w/LED)

1 x HDD Access LED

1 x Message LED LAN 1-4 LED (on NIC Module)

Rear Switch/LED:

1 x Power switch w/LED

1 x Port 80 LED(Q-Code)

1 x Location Switch w/LED

1 x Message LED

OS Support

Please find the latest OS support from https://www.asus.com/event/Server/OS_support_list/OS.html

Management Solution

On-Board ASMB10-iKVM for KVM-over-IP

ASUS Control Center Enterprise (Optional)

Regulatory Compliance

BSMI, CE, FCC(Class A)

Dimensions

842.5mm x 449mm x 43.85mm (33.17" x 17.68" x 1.73")

Form Factor

Weight

Net Weight : 18.85KG

Gross Weight : 23.89KG

Power Supply

1+1 Redundant 1200W/1600W 80 PLUS Platinum Power Supply

Rating: 100-127/200-240Vac,9.4A/4.72A (x2) ,50/60Hz Class I (240Vdc, 4.6A Only for China)

*1600W RPSU is required while choosing GPU SKU

Environment

Operation temperature: 10? ~ 35?

Non operation temperature: -40? ~ 60?

Non operation humidity: 20% ~ 90% (Non condensing)

Optional Items

Standard Cooling Solution or

Water Cooling Solution

Note

If only 1 CPU is installed, some functions might be not available.

*SAS support only from SAS HBA/RAID Card

CPU Heatsink/ Cooler

Fan

1 (For supporting GPU SKU, it will have external fan)

Products certified by the Federal Communications Commission and Industry Canada will be distributed in the United States and Canada. Please visit the ASUS USA and ASUS Canada websites for information about locally available products.

All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets.

Specifications and features vary by model, and all images are illustrative. Please refer to specification pages for full details.

PCB color and bundled software versions are subject to change without notice.

Brand and product names mentioned are trademarks of their respective companies.

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.

The information contained is general testing result for reference. Please consult local sales representative for more information on specific supported CPU list on each system.

EAN: 4711081376613

Doplňkové parametry

Kategorie:	Servery
Záruka:	3 roky
Hmotnost:	23.5 kg
EAN:	4711081376613
Kód výrobce:	90SF01E2-M00800
