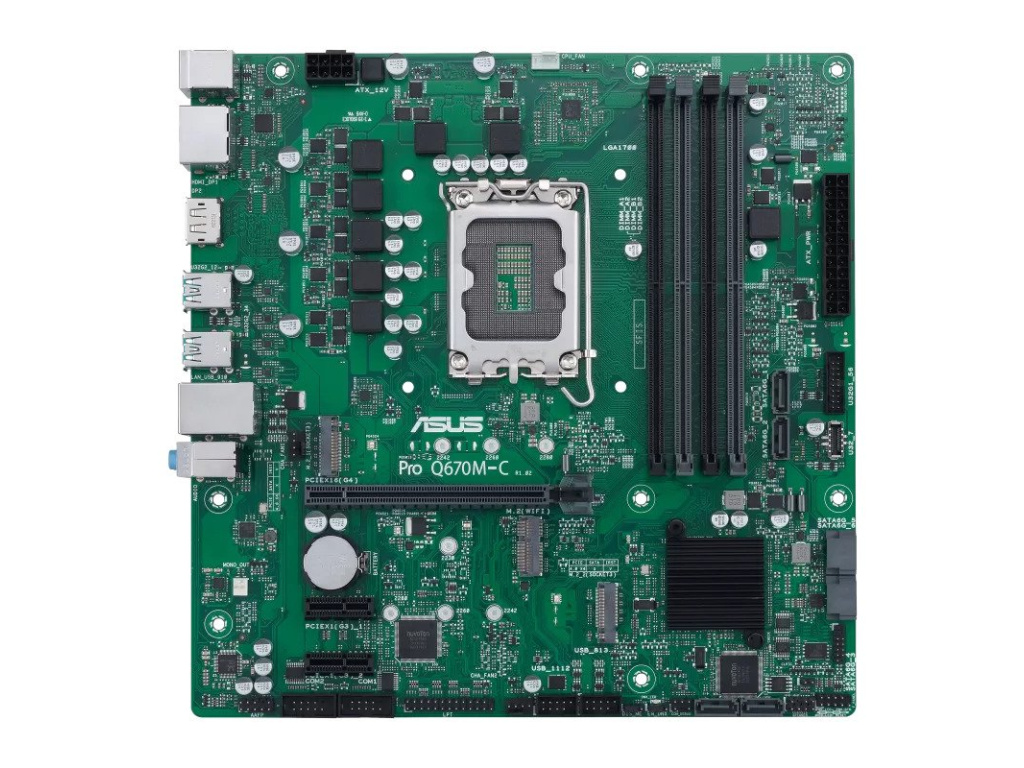

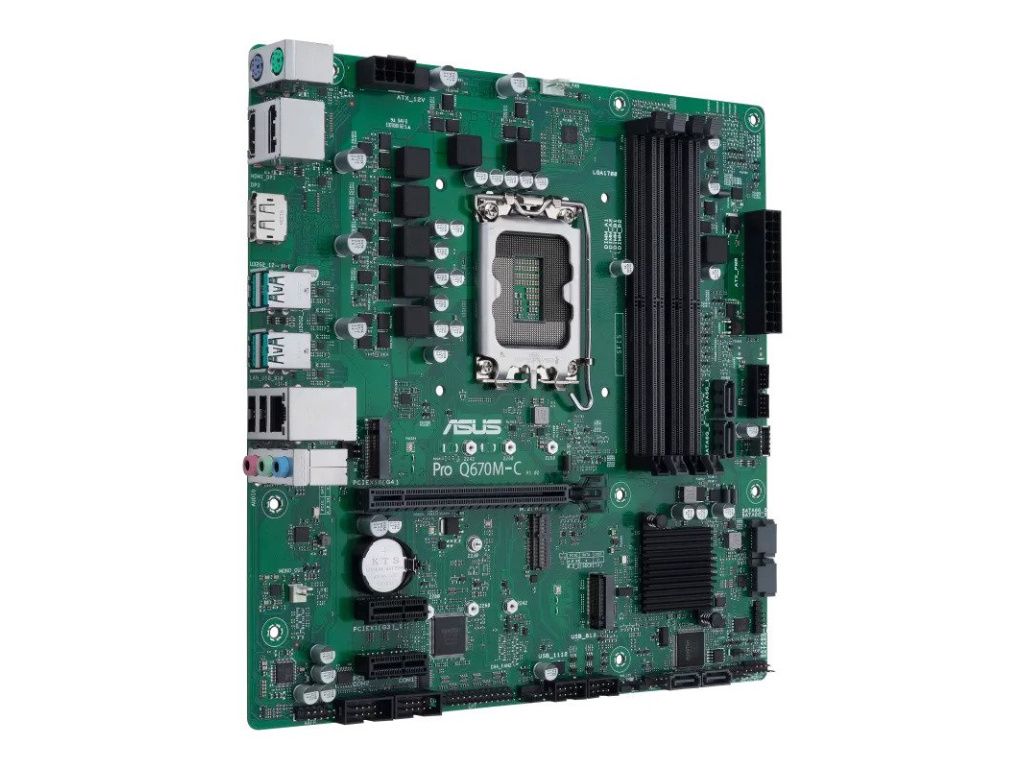

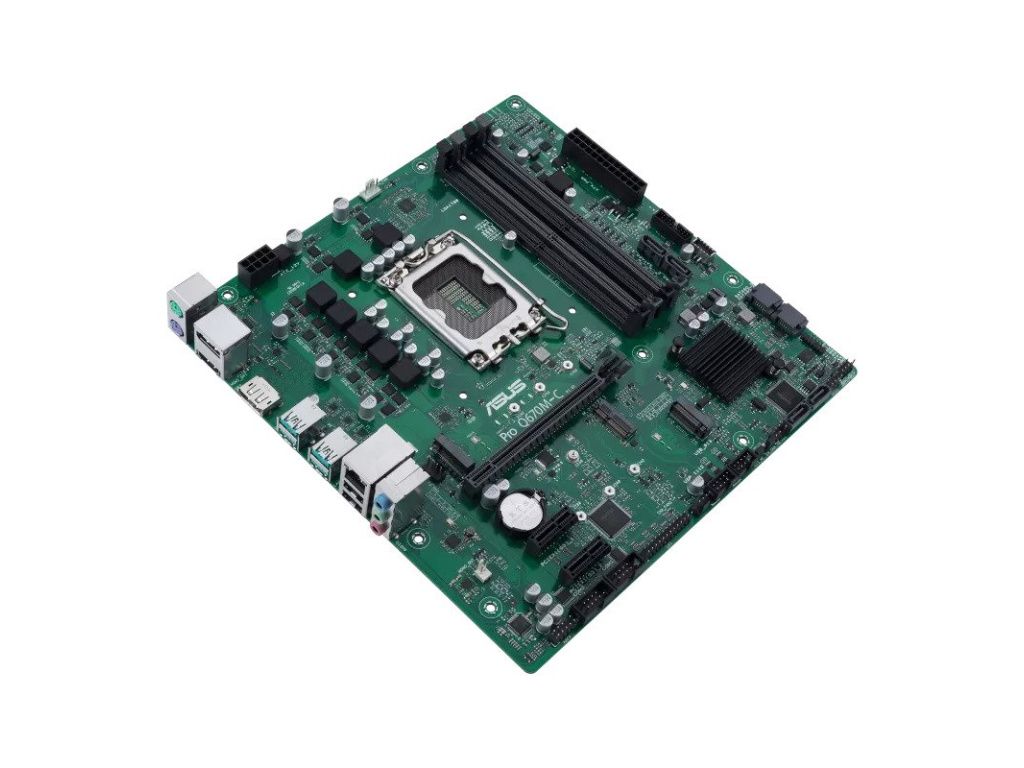

ASUS PRO Q670M-C-CSM/LGA 1700/mATX, 90MB19E0-M2EAYC

Detailní popis produktu

Chipset: Intel Q670 Chipset
Rozměrový formát: mATX Form Factor (24.4 cm x 24.4 cm)
Podpora pro procesory: 12th Gen Intel Core, Pentium Gold and Celeron Processors
Patice procesoru: LGA 1700
Pozice na paměti: 4 x DIMM, Dual Channel Memory Architecture
Podpora pro paměti: DDR5 4800 MHz
Max.velikost operační paměti: 128 GB
Podpora pro paměti typu: XMP
Grafické výstupy: (na základě procesoru)
2 x DisplayPort 1.4
1 x HDMI port 2.1
Zvuková karta: Realtek 7.1 Surround Sound High Definition Audio CODEC
Síťová karta: 1 x Intel I219LM 1Gb Ethernet
Rozšiřující sloty:
1 x PCIe 4.0 x16 slot
2 x PCIe 3.0 x1 slots
RAID řadič:
NVMe RAID 0/1/5
SATA RAID 0/1/5/10.
SATA: 6 x SATA 6Gb/s ports
M.2: 2 x M.2 slots (Key M)
USB:

Interní:
1 x USB 3.2 Gen 1 Front Panel connector (suppports USB Type-C)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports

Externí :
4 x USB 3.2 Gen 2 ports (4 x Type-A)
2x USB 2.0 ports (2 x Type-A)
Interní porty:

Fan and cooling related
1 x 4-pin CPU Fan header
2 x 4-pin Chassis Fan headers

Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector

Storage related
2 x M.2 slots (Key M)
6 x SATA 6Gb/s ports

USB
1 x USB 3.2 Gen 1 Front Panel connector (suppports USB Type-C®)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports

Miscellaneous
1 x Clear CMOS header
1 x Chassis Intrude header
2 x COM Port headers
1 x Front Panel Audio header (AAFP)
1 x COM debug header
1 x DIS ME jumper
1 x LPT header
1 x Mono-out header(with Amp IC)
1 x M.2 slot (Key E)
1 x Speaker header
1 x 10-1 System Panel header

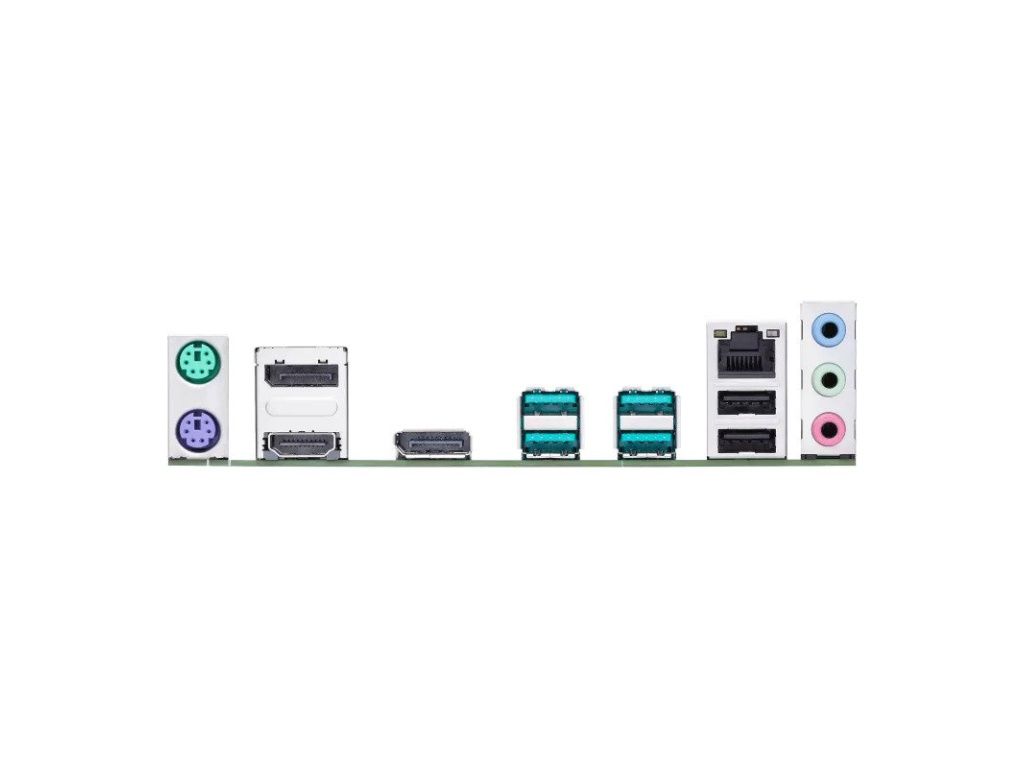

Externí porty:
4 x USB 3.2 Gen 2 ports (4 x Type-A)
2x USB 2.0 ports (2 x Type-A)
2 x DisplayPort
1 x HDMI port
3 x Audio jacks
1 x Intel 1Gb Ethernet
1 x PS/2 keyboard (purple) port
1 x PS/2 mouse (green) port
BIOS: 256 Mb Flash ROM

EAN: 4711081518389
