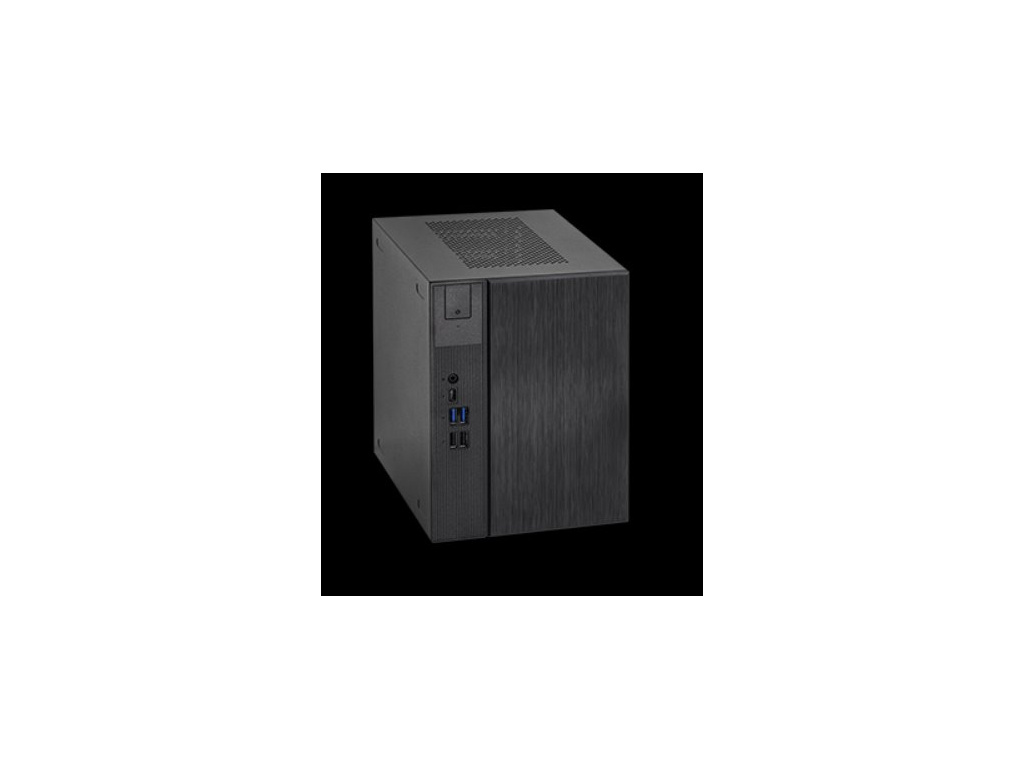

ASRock PC DeskMeet B660 LGA1700(65W), 4x DIMM DDR4, PCIe x16, 2x M.2 + M.2E, 3x SATA,1Gb LAN, HDMI, DP, VGA, 500W, DESKMEET B660/B/BB/BOX

Detailní popis produktu

• Supports 12th Gen Intel Core™ Processors (LGA1700)


• Supports MAX Height ? 54mm CPU Cooler


• Supports 4 x DDR4-3200MHz DIMMs, up to 128GB


• 1 x PCIe 4.0 x16


• Graphics Output Options:DisplayPort, HDMI & D-Sub


• 3 x SATA3


• 1 x Hyper M.2 (PCIe Gen4 x4 & SATA3)

  1 x Hyper M.2 (PCIe Gen4 x4)


• 1 x USB 3.2 Gen1 Type-C Port


• 4 x USB 3.2 Gen1 Type-A port (2 Front, 2 Rear)


• 4 x USB 2.0 Type-A port (2 Front, 2 Rear)


• 1 x M.2 Key-E for Wi-Fi


• 500W power supply (80+ Bronze)


• 8 Liter compact size

•

  CPU



  - Supports 12th Gen Intel^® Core™ Processors (LGA1700)




•

  Cooler



  - Supports Intel^® CPU Cooler (Max. Height ? 54mm)




•

  Memory



  - Supports Dual Channel DDR4 Memory Technology

  - 4 x DDR4 DIMM slots (Max. 128GB)

  - Supports DDR4 3200/2933/2800/2666/2400/2133 non-ECC, un-buffered memory*




  *Supports DDR4 3200 natively.







•

  Chipset



  - Intel^® B660




•

  Graphics



  - Supports a discrete Dual slot Graphics card up to 20CM




•

  Audio



  - Realtek ALC897 Audio Codec




•

  Storage



  - 3 x SATA3 6.0Gb/s ports

  - 1 x Hyper M.2 Socket (M2_1), supports type 2280 SATA3 6.0Gb/s & PCIe Gen4x4 (64 Gb/s) modes*

  - 1 x Hyper M.2 Socket (M2_2), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*




  *Supports Intel^® Optane™ Technology

  Supports NVMe SSD as boot disks

  Supports Intel^® Volume Management Device (VMD)







•

  LAN



  - Giga PHY Intel^® I219V




•

  Expansion Slots



  - 1 x PCIe 4.0 x 16

  - 1 x M.2 Socket (Key E), supports type 2230 Wi-Fi/BT module and Intel^® CNVi (Integrated Wi-Fi/BT)




•

  Front I/O



  - 1 x Headphone/Headset Jack

  - 1 x USB 3.2 Gen1 Type-C

  - 2 x USB 3.2 Gen1 Type-A

  - 2 x USB 2.0 Type-A




•

  Rear I/O



  - 1 x DisplayPort 1.4

  - 1 x HDMI

  - 1 x D-Sub

  - 2 x USB 2.0

  - 2 x USB 3.2 Gen1 Type-A

  - 1 x RJ-45 LAN Port

  - HD Audio Jacks: Line in / Front Speaker / Microphone




•

  Connectors



  - 1 x Chassis Intrusion Header

  - 1 x CPU Fan Connector (4-pin)

  - 1 x Chassis/Water Pump Fan Connectors (4-pin)

  - 1 x 24 pin ATX Power Connector

  - 1 x 8 pin 12V Power Connector

  - 1 x Front Panel Header

  - 1 x USB 2.0 Headers (Support 2 USB 2.0 ports) (Supports ESD Protection)




•

  Volume (liters)



  - 8L




•

  Power Unit



  - 500W power supply (80+ Bronze, peak 550W)




•

  Accessory



  - Quick Installation Guide

  - 2 x SATA Data Cables

  - 1 x Screws Package




•

  Dimension



  - 168 (W) x 219.3 (D) x 218.3(H) mm (excl. Protrusions)

  - 168 (W) x 236.1 (D) x 221.6(H) mm (incl. Protrusions)




•

  OS



  - Microsoft^® Windows^® 10 64-bit / 11 64-bit
