ASRock mini PC X300 1x AM4 APU(65W),2x SODIMM DDR4, 2xM.2+2x 2,5 SATA,1Gb LAN, HDMI, DP, VGA, 120W, DESKMINI X300/B/BB/BOX

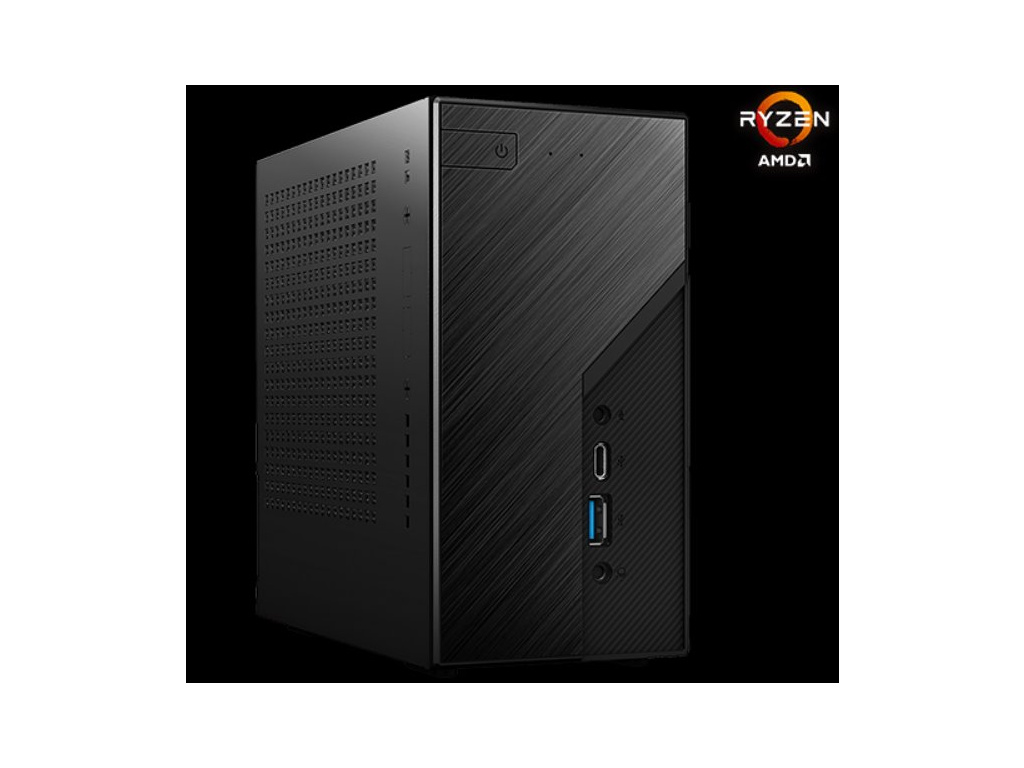

DeskMini X300 Barebone

•

  CPU



  - Supports AMD AM4 Socket CPUs (Renoir, Picasso, Raven Ridge, up to 65W)




•

  Cooler



  - Supports AMD AM4 CPU Cooler (Max. Height ? 46mm)




•

  Memory



  - Supports 2 x SO-DIMM DDR4 Memory, Max. 64GB

  - AMD Ryzen 4000 series – 3200MHz

  - AMD Ryzen 3000/2000 series – 2933MHz




•

  Chipset



  - AMD X300




•

  Graphics Output



  - HDMI(4K @60Hz)

  - DisplayPort, D-Sub




•

  Audio



  - 1 x Head Phone with MIC Jack, 1 x MIC-In (RealtekALC233)




•

  Front USB



  - 1 x USB 3.2 Gen1 Type-C, 1 x USB 3.2 Gen1 Type-A




•

  Rear USB



  - 1 x USB 3.2 Gen1 Type-A, 1 x USB 2.0 Type-A,




•

  Storage



  - 2 x SATA 6Gb 2.5-inch 7mm/9.5mm Hard Drive (RAID 0/1)

  - 1 x Ultra M.2 (2280) PCIe Gen3 x4 SSD Slot

  - 1 x Ultra M.2 (2280) Slot

  - PCIe Gen3 x4 (Renoir, Picasso and Raven Ridge APU)

  - PCIe Gen3 x2 (Athlon 2xxGE series APU)




•

  LAN



  - Gigabit LAN (RealtekRTL8111H)




•

  WLAN



  - 1 x M.2 (key E 2230) Slot for Wi-Fi + BT Module




•

  Connectors



  - 1 x USB 2.0 Header

  - 1 x Front Panel Header

  - 2 x 4-Pin fan connectors (CPU, SYS)

  - 1 x DC-In Jack (Supports 19V Power Adapters)

  - 1 x Internal Speaker Header (4-Pin)

  - 1 x Chassis Intrusion Header (2-Pin)

  - 1 x Audio Header (4-Pin)




•

  Accessory



  - 2 x SATA Data with Power Cable

  - 1 x 120W/19V adapter

  - 1 x Screws Pack




•

  Dimension



  - 155 x 155 x 80 mm (1.92L)




•

  Remark



  DeskMini X300 Series don't support S3 function.
