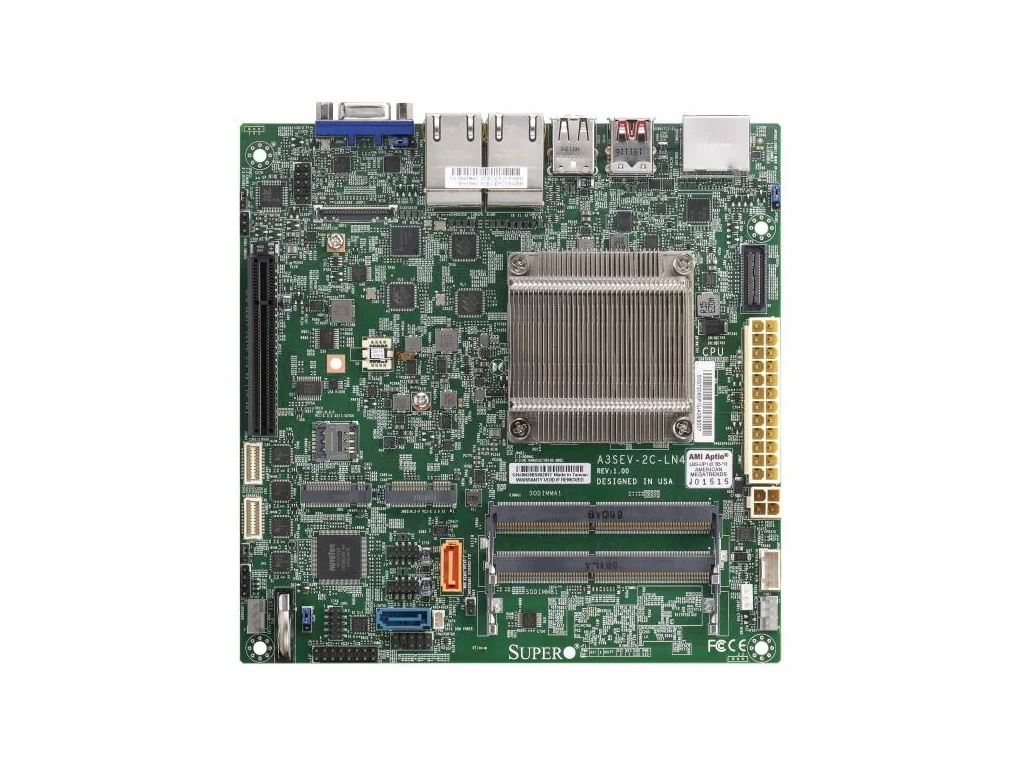

    SUPERMICRO mini-ITX MB Atom x6425E (4-core), 2x DDR4 ECC SO-DIMM, 8xSATA, 1x PCI-E 3.0 x4, 4x 1GbE LAN, IPMI, bulk, MBD-A3SEV-4C-LN4-B

    Kód: ALIASBSRMBDA3SEV4CLN4B
    Neohodnoceno
    SUPERMICRO mini-ITX MB Atom x6425E (4-core), 2x DDR4 ECC SO-DIMM, 8xSATA, 1x PCI-E 3.0 x4, 4x 1GbE LAN, IPMI, bulk, MBD-A3SEV-4C-LN4-B
    8 219 Kč 6 793 Kč bez DPH
    Skladem online (1 ks)
    Můžeme doručit do:
    8.12.2025
    Možnosti doručení

    Detailní informace

    Ověřený obchod
    Ověřený obchod
    Více než 25 let na trhu s IT
    SKLAD
    Sklad
    30 000 produktů připraveno skladem
    Výdejní místa KUPSIONLINE.CZ
    Široká síť výdejních míst
    Více než 7 000 výdejních míst v ČR
    Doprava zdarma
    Doprava zdarma
    Při nákupu nad 10tis. Kč doprava zdarma

    Detailní popis produktu








    Key Features




    1. Intel® Atom® Processor x6425E

      Single Socket FCBGA-1493 supported, CPU TDP supports Up to 12W TDP

    2. Up to 32GB Unbuffered non-ECC SO-DIMM, DDR4-3200MHz, in 2 DIMM slots

    3. 1 PCIe 3.0 X2 (in x8 slot)

      1 M.2 B-Key SATA/PCIe 3.0 x2/USB 3.0, 3042/2280

      1 M.2 E-Key PCIe 3.0 x1/USB 2.0, 2230

    4. Single LAN with Intel® Ethernet Controller I210IT

      ONLY i210 support PXE

      3 LAN with 1GbE with Marvell® 88E1512

    5. System on Chip

    6. 1 DP (DisplayPort) port, 1 HDMI port, 1 VGA port, 1 eDP (Embedded DisplayPort) port, Supports 3 independent displays



    Optimized Servers



    SYS-E302-12E





















    Product SKUs
    MBD-A3SEV-4C-LN4
















    Physical Stats
    Form Factor

    • Mini-ITX
    Dimension

    • 6.7" x 6.7" (17.02cm x 17.02cm)
















    Processor
    CPU

    • Intel® Atom® Processor x6425E

    • Single Socket FCBGA-1493 supported, CPU TDP supports Up to 12W TDP
    Core

    • Up to 4 cores, 4 threads
























    System Memory
    Memory Capacity

    • 2 DIMM slots

    • Up to 32GB Unbuffered non-ECC SODIMM, DDR4-3200MHz
    Memory Type

    • 3200 MT/s non-ECC DDR4 SODIMM Unbuffered 3200MHzMT/s 260pin up to 32GB
    DIMM Sizes

    • 8GB, 16GB
    Memory Voltage

    • 1.2V
























    On-Board Devices
    Chipset

    • System on Chip
    Audio

    • ALC 888S HD Audio
    Graphics

    • 1 Intel® HD Graphics port(s)
    Network Controllers

    • Single LAN with Intel® Ethernet Controller I210IT, ONLY i210 support PXE

    • 3 LAN with 1GbE with Marvell® 88E1512
































    Input / Output
    SATA

    • 2 SATA3 (6Gbps) port(s)
    LAN

    • 4 RJ45 Gigabit Ethernet LAN ports
    USB

    • 2 USB 3.1 Gen2 port(s) (2 rear type A)

    • 6 USB 2.0 port(s) (4 via header; 2 rear)

    •
    Video Output

    • 1 VGA port(s), 1 DP (DisplayPort) port(s), 1 HDMI port(s), 1 eDP (Embedded DisplayPort) port(s)
    Serial Port

    • 4 COM Port(s) (4 header)
    TPM

    • 1 TPM Header & Chip both






























    Expansion Slots
    PCIe

    • 1 PCIe 3.0 X2 (in x8 slot)
    M.2

    • M.2 Interface: 1 SATA/PCIe 3.0 x2/USB 3.0; 1 PCIe 3.0 x1/USB 2.0

    • Form Factor: 3042/2280, 2230

    • Key: B-Key, E-Key
















    System BIOS
    BIOS Type

    • AMI UEFI
    BIOS Features

    • ACPI 6.2 or later

    • UEFI 2.7

    • Plug and Play (PnP)

    • SMBIOS 3.3 or later

    • DMI 2.3

    • USB Keyboard support

    • RTC (Real Time Clock) Wakeup
















    Management
    Software

    • SuperDoctor® 5, Watchdog
    Power Configurations

    • ACPI Power Management, +12V DC Power Input




























    PC Health Monitoring
    Voltage

    • VBAT, System temperature, System level control, Chassis intrusion header, +5V standby, +5V, +3.3V, +12V, +1.8V, Memory Voltages
    LED

    • Standby alert LED

    • CPU / System Overheat LED
    Temperature

    • Monitoring for CPU and chassis environment

    • CPU thermal trip support
    FAN

    • Thermal control tachometer fan connectors, System level control, PWM fan speed control, Low noise fan speed control, Fan speed control, Dual Cooling Zone, Overheat LED indication
    Other Features

    • WOL, System level control, RoHS, CPU thermal trip support for processor protection, Chassis intrusion header, ATX Power connector, ACPI power management, 12V DC or ATX Power Source, 4-pin 12v DC power connector
























    Operating Environment
    Operating Temperature Range

    • -30°C - 70°C (-22°F - 158°F)
    Non-Operating Temperature Range

    • -40°C - 85°C (-40°F - 185°F)
    Operating Relative Humidity Range

    • 8% - 90% (non-condensing)
    Non Operating Relative Humidity Range

    • 10% - 95% (non-condensing)




































































































































































































































































    Standard Parts (Bulk Package)
      Part Number Qty Description
    I/O Cables CBL-0044L •  1 57.5CM SATA FLAT S-S PBF
    I/O Shield MCP-260-00058-0N 1 Standard I/O Shield for A2SAV with EMI Gasket




































    Standard Parts (Retail Package)
      Part Number Qty Description
    I/O Cables CBL-0044L •  2 57.5CM SATA FLAT S-S PBF
    I/O Shield MCP-260-00058-0N 1 A3SEV standard 2U I/O Shield
    QRG MNL-2355-QRG 1 Motherboard Quick Reference Guide






















































    Optional Parts
      Part Number Qty Description
    1U I/O Shield MCP-260-00068-0B 1 1U I/O Shield for A3SEV with EMI Gasket in CS 505/504
    Audio Cable CBL-OTHR-0985 1 Audio Cable 30cm
    COM Port Cable CBL-CDAT-0685 1 COM Cable 30cm
    SATA Cables CBL-0044L •  1 57.5CM SATA FLAT S-S PBF
    SATA Power Cable CBL-PWEX-0982 1 SATA Power Cable 25cm
    USB Cable CBL-CUSB-0983 1 USB2.0 cable 20cm
























    EAN:

    Doplňkové parametry

    Kategorie: Mini ITX
    Záruka: 3 roky
    Hmotnost: 0.62 kg
    EAN: 672042475094
    Kód výrobce: MBD-A3SEV-4C-LN4-B
