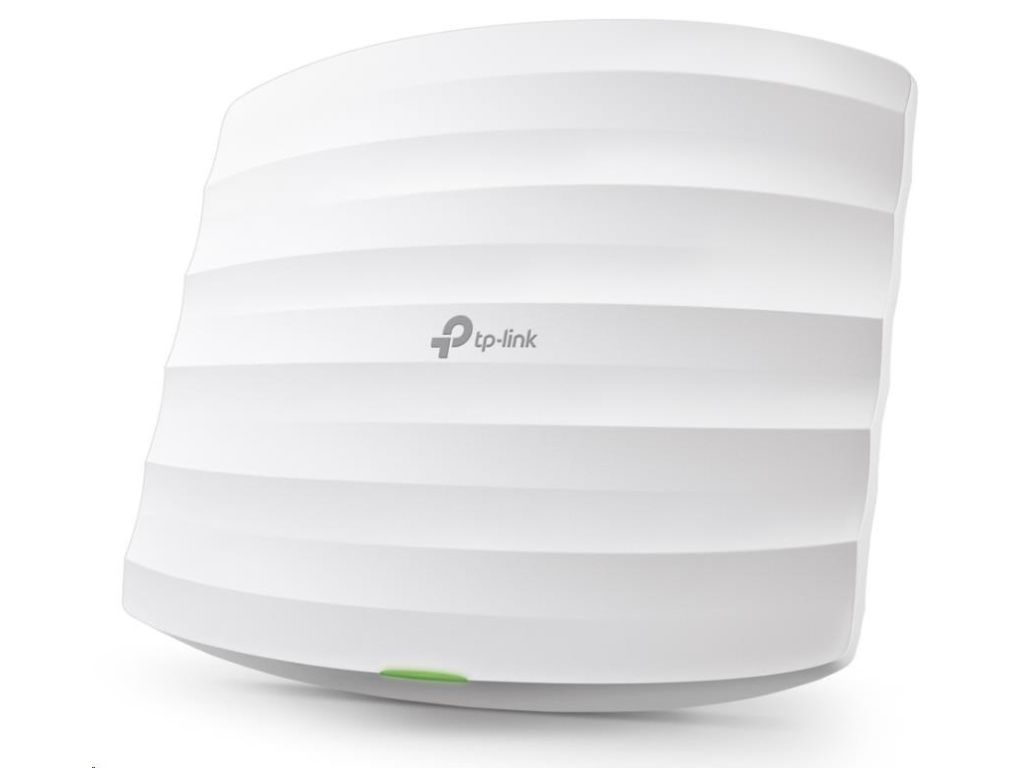

TP-Link EAP223 OMADA WiFi5 AP (AC1350,2,4GHz/5GHz,1xGbELAN,1xPoE-in), EAP223

Detailní popis produktu

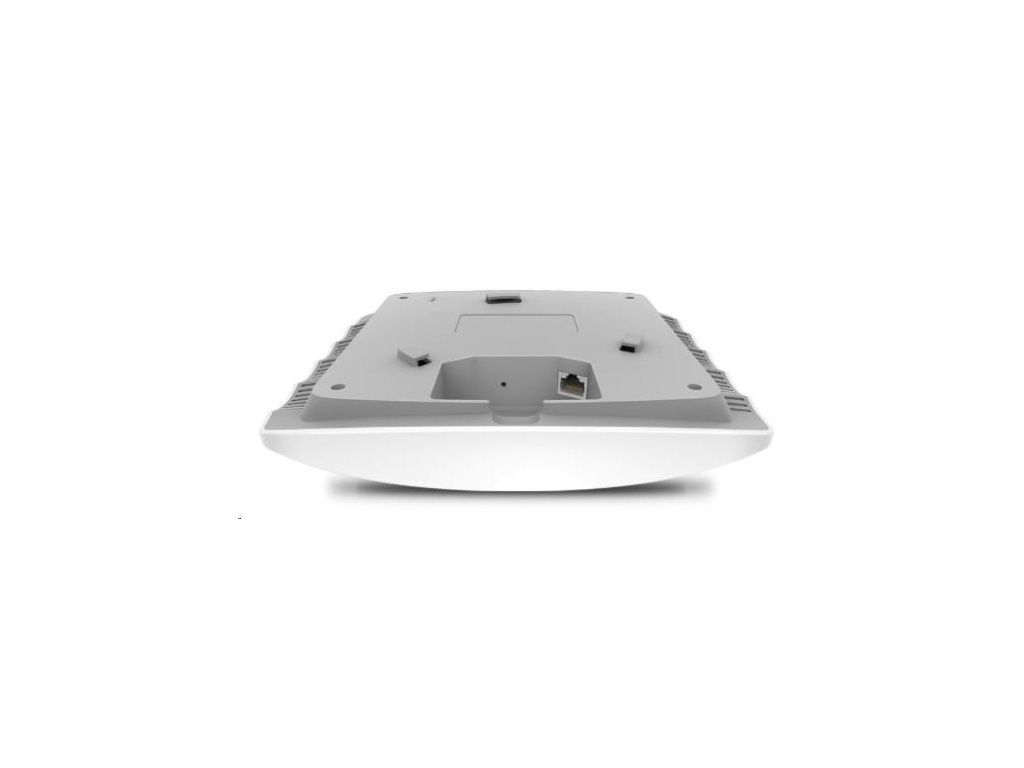

HARDWARE FEATURES Interface Gigabit Ethernet (RJ-45) Port×1 (Support IEEE802.3af PoE and Passive PoE) Physical Security Lock Yes Button Reset Power Supply • 802.3af PoE
• 24V Passive PoE (+4,5pins; -7,8pins. PoE Adapter IS NOT Included) Max. Power Consumption 12.6 W Dimensions ( W x D x H ) 8.1 × 7.1 × 1.5 in (205.5 × 181.5 × 37.1 mm) Antenna 3 Internal Omni
• 2.4 GHz: 4 dBi
• 5 GHz: 5 dBi Mounting Ceiling /Wall Mounting (Kits included) WIRELESS FEATURES Coverage 115?(1250 ft2)§ Concurrent Clients 220+** Wireless Standards IEEE 802.11ac/n/g/b/a Frequency 2.4 GHz and 5 GHz Signal Rate • 5 GHz:Up to 867 Mbps
• 2.4 GHz:Up to 450 Mbps Wireless Functions • Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
• Enable/Disable Wireless Radio
• Automatic Channel Assignment
• Transmit Power Control (Adjust Transmit Power on dBm)
• QoS(WMM)
• Seamless Roaming(802.11k/v/r)*
• Omada Mesh*
• Band Steering
• Load Balance
• MU-MIMO
• Airtime Fairness
• Beamforming
• Rate Limit
• Reboot Schedule
• Wireless Schedule
• Wireless Statistics based on SSID/AP/Client Wireless Security • Captive Portal Authentication*
• Access Control
• Wireless Mac Address Filtering
• Wireless Isolation Between Clients
• SSID to VLAN Mapping
• Rogue AP Detection
• 802.1X Support Transmission Power • CE:
?20 dBm(2.4 GHz, EIRP)
?23 dBm(5 GHz, EIRP)
• FCC:
?24 dBm(2.4 GHz)
?22 dBm(5 GHz) Management Features Omada App Yes Centralized Management • Omada Cloud-Based Controller
• Omada Hardware Controller
• Omada Software Controller Cloud Access Yes. Require the use of an Omada controller. Email Alerts Yes LED ON/OFF Control Yes Management MAC Access Control Yes SNMP v1,v2c System Logging Local/Remote Syslog Local/Remote Syslog SSH Yes Web-based Management HTTP/HTTPS L3 Management Yes Multi-site Management Yes Management VLAN Yes Zero-Touch Provisioning Yes. Requiring the use of Omada Cloud-Based Controller OTHERS Certification CE, FCC, RoHS Package Content • AC1350 Wireless MU-MIMO Gigabit Ceiling Mount Access Point EAP223
• Mounting Kits
• Installation Guide System Requirements Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux Environment • Operating Temperature: 0–40 ? (32–104 ?)
• Storage Temperature: -40–70 ? (-40–158 ?)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
