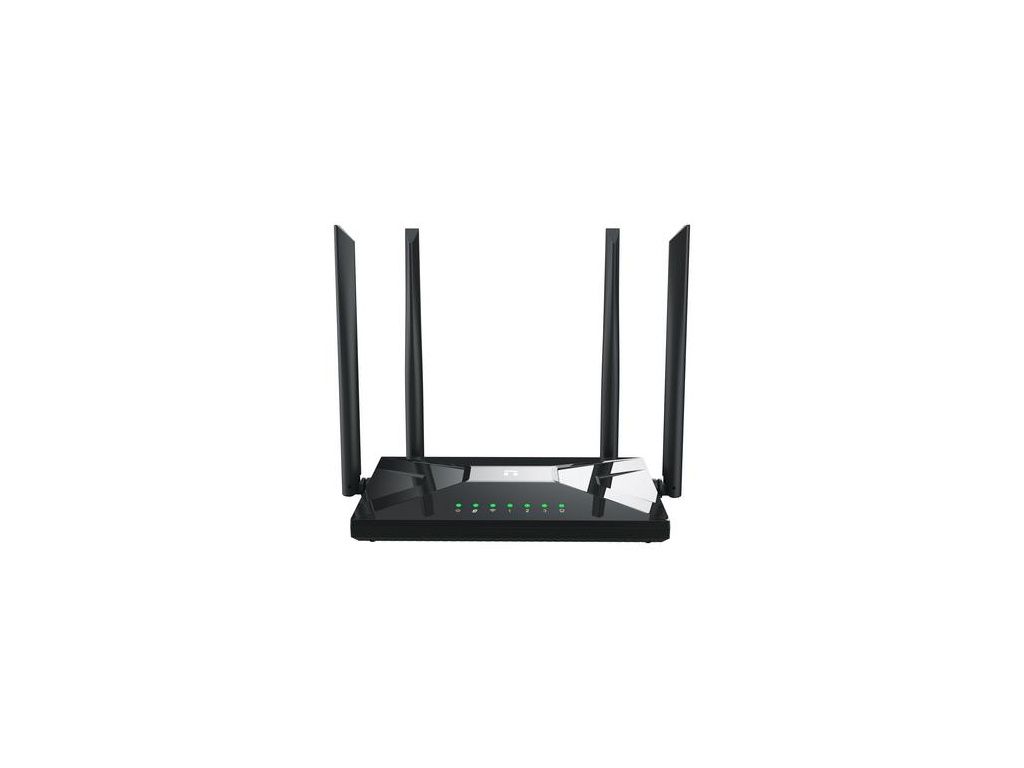

STONET NC65 WiFi Router, AC1200, 4x 5dBi fixní anténa, full Gigabit (nístupce N2), NC65

Detailní popis produktu

NC65
AC1200 Bezdrátový dvoupásmový gigabitový router
Současné připojení 2,4 GHz 300 Mb/s a 5 GHz 867 Mb/s. Různé typy připojení WAN v režimu AP routeru: DHCP, statická IP adresa, PPPoE, L2TP, PPTP, duální přístup (Rusko PPPoE/PPTP/L2TP). MU-MIMO, technologie tvarování paprsku. 4* 5dBi antény s vysokým ziskem. Snadné nastavení zabezpečení bezdrátové sítě stisknutím tlačítka WPS. Inteligentní ovládání šířky pásma. Kompletní gigabitové porty. Podpora sítí EASY MESH. Snadné nastavení a podpora, pohodlná správa aplikací.

Standards

Wi-Fi 5

IEEE 802.11ac/n 5 GHz

IEEE 802.11b/g/n 2.4 GHz

WiFi Speeds

AC1200

5 GHz: 867Mbps (802.11ac)

2.4 GHz: 300Mbps (802.11n)

WiFi Range

3 Bedroom Houses

4* Fixed High-Performance Antennas

Multiple antennas form a signal-boosting array to cover more

directions and large areas

Beamforming Concentrates wireless signal strength towards

clients to expand WiFi range

High-Power FEM Improves transmission power to strengthen

signal coverage

WiFi Capacity

Dual-Band

Allocate devices to different bands for optimal performance

OFDMA

Simultaneously communicates with multiple Wi-Fi 5/4 clients

Airtime Fairness

Improves network efficiency by limiting excessive occupation

4 Streams Connect your devices to more bandwidth

Working Modes

AP Router Mode, AP Mode, WISP Mode, Client Mode, Repeater Mode

Hardware
Processor

1GHz CPU

DDR/FLASH

128MB/8MB

Interface

1* Gigabit WAN Port+3* Gigabit LAN Ports

Buttons

WPS/MESH?RESET

Power

12V1A

Software
WiFi Encryption

WEP, WPA-PSK, WPA2-PSK, WPA/WPA2-PSK

Network Security

Access Control, IP & MAC Binding

Guest Network

4*5GHz Guest Network /4*2.4GHz Guest Network

Protocols

IPv4, IPv6

WAN Types

DHCP, Static IP, PPPoE, L2TP, PPTP

Quality of Service

QoS by Device

Forwarding

Virtual Server, DMZ,UPnP

IPTV

Bridge, Tag VLAN

DHCP

Address Reservation, DHCP Client List, DHC Server

Access Control

IP Filtering, MAC Filtering, Domain Filtering, IPv6 Filtering

Dynamic DNS

DynDns, no-ip

IGMP

IGMP Proxy, IGMP Snooping

VPN

PPTP Pass-through,L2TP Pass-through,IPSEC Pass-through,SIP Pass-through

Others

Bandwidth Control, Multiple SSID, FOTA, TR069, WOL, ARP List, Static Routing, Port Setting, Remote Access, Backup & Restore

Physical
Dimensions(W×D×H)

228*134*188mm

Package Contents

1*NC65

1* Power Adapter

1* RJ45 Ethernet Cable

1* Quick Installation Guide

Others
System Requirements

Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser

Cable Subscription with an internet service provider (for internet access)

Certifications

FCC, CE, RoHS, EAC, UkrSEPRO

Environment

Operating Temperature: 0?~40? ( 32? ~104? )

Storage Temperature: -40?~70? (-40? ~158? )

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing

Test Data
WiFi Transmission Power

2.4H: 22DB

5G: 19.5DB
EAN:
